Basic Steps in the Production of Ethyl Alcohol
THE usual sources of raw material for alcohol production from starch are
cereal grains such as corn, wheat, rye, barley, milo (sorghum grains), rice, etc. Other types of starch are available from
potatoes of all kinds, Jerusalem artichokes, and other high-starch vegetables. Starch conversion is the standard method of
production and the one we will discuss here.
It is possible, however, to make alcohol from sugar-producing plants
(saccharine material) such as sugar beets, sugarcane, fruits, and others. These substances need no milling (as do grains),
but they do require some kind of grinding or squeezing process. Rapid, efficient fermentation of these sugars has not been
as well explored as the process using starch.
A third source of fermentables is cellulose, as found in wood and waste
sulphite liquor. This more complex process requires the use of acids to reduce the material to wood sugars. Consequently,
most do-it-yourselfers should stick to either starch or sugar.
MILLING
All grains must be ground before mashing to
expose the starch granules and help them remain in suspension in a water solution. The grain should be ground into a meal
-- not a flour! -- that will pass a 20-mesh screen. On a hammermill, however, a 3/16" screen will suffice.
Potatoes
and similar high-moisture starch crops should be sliced or finely chopped. Since potato starch granules are large and easily
ruptured, it isn't necessary to maintain the hard rapid boil which is required of the tougher, dryer "flinty" starches
found in grains.
CONVERSION WITH ENZYMES
For small batches (5 bushels or less), fill the cooker with water (30 gallons
per bushel), and add the meal slowly, to prevent lumps from forming. (When, cooking with steam, or at higher temperatures,
it is possible to save energy by using less water at the beginning. But for the "small batcher" with an ordinary
cooking apparatus, the most complete conversion is obtained by using the full amount of water right from the start to encourage
a rapid rolling boil.)
Next, add 3 measuring spoons -- as provided -- per bushel of Alpha Amylase Enzyme (mixed in
water) to the mixture and raise the temperature of the mash to 170 deg F (77 deg C), the optimum working environment for the
enzyme. Hold the solution at that temperature for 15 minutes while agitating it vigorously.
At this point all the
starch available at 170 deg F has been converted to dextrins, so it's time to raise the temperature of the mash to the boiling
point. The concoction should be liquid enough to roll at its own rate -- if not, add 2 to 3 gallons of water. Hold the boil
for 30 minutes to complete the liquefaction stage. All the starches are now in solution.
Now reduce the temperature
to 170 deg F, using the cooling coil, and add 3 more measuring spoons per bushel of Alpha Amylase Enzyme (mixed in water).
After 30 minutes of agitation at this temperature, all the previously released starches will have been reduced to dextrins,
thereby completing primary conversion.
During secondary conversion the dextrins are further reduced to simple sugars
(maltose and glucose) by the beta, or -- to be more exact -- glucoamylase enzymes. You need Alpha Amylase Enzyme and the yeast
necessary to carry out secondary conversion and proper fermentation simultaneously, you can add 6 measuring spoons per bushel
of the fermentation powder (mixed in water) as soon as you've brought the temperature down to 85 deg F (29 deg C) using the
cooling coils.
CONVERSION WITH BARLEY MALT
Instead of using commercial enzymes, it is also possible to affect conversion
by employing barley malt -- at the ratio of 15% by weight, or 7 pounds per bushel -- in both the pre- and post-boil. However,
such a technique requires a more acidic medium (about pH 4-5) and lower temperatures -- about 145 deg F (63 deg C) is optimum.
Though the weights and temperatures differ, the same sequence is followed as discussed in "Conversion With Alpha Amylase
Enzyme".
(One way to speed up the cooking process is with steam, which -- at 350 deg F, 177 deg C -- reduces
the cooking time to one minute. Another commercial approach is to use extruders: machines much like meat grinders that compress,
grind, and convert the grain in a one-step process.)
FERMENTATION
If you use barley malt for the conversion process
-- or if you are following some alternative recipe that does not employ Alpha Amylase Enzyme -- you will still need to add
yeast.
Mix up two ounces of distiller's or baker's yeast in a quart or two of the liquid mash, and add the concoction
to the wort. Vigorous agitation will oxygenate the mixture and encourage a rapid initial growth of the yeast culture.
Yeast plants can propagate in a solution with or without air, so agitate only enough to saturate the wort with air and
then let it stand still. If the mash is continually agitated, the yeast will reproduce faster and make less waste: carbon
dioxide and alcohol. But if the solution becomes anaerobic (without air) the yeast slows down reproduction and makes more
alcohol and carbon dioxide.
Yeast also produces enzymes of its own to convert complex sugars. Since sugar conversion
and alcohol conversion can take place simultaneously, the amylase enzymes and the yeast work in cooperation to convert the
dextrins to glucose and fructose and then to alcohol and C02.
Fermentation is a chemical process and produces heat.
In concentrated or particularly large mashes, the temperature can actually rise to levels dangerous to yeast. Since the ideal
temperature for yeast is around 85 deg F, it's best to maintain that temperature by either utilizing cooling coils or keeping
the water-to-grain ratio at about 40 gallons per bushel.
Conversion of sugars to alcohol and C02 will be completed
in three to five days, depending on the temperature of the mixture and the type of yeast used. You can tell when the mash
is done by watching the "cap" of solids on top of the solution. During fermentation, the rising C02 keeps the solids
in constant motion, but when the bubbling stops, the solids fall to the bottom. At this time, you're ready to separate the
solids from the liquids and begin distillation.
KEEP IT CLEAN!
Remember, sanitation is extremely important! There
are many kinds of invading bacteria, including strains which can withstand boiling temperatures. So, observe the same standards
that any restaurant or kitchen follows. And keep the fermenting vat well covered: a fly in the ointment will turn your mash
into something that it's best to keep upwind of.
More On Conversion and Fermentation
Acid hydrolysis of starch is
accomplished by directly contacting starch with dilute acid to break the polymer bonds. This process hydrolyzes the starch
very rapidly at cooking temperatures and reduces the time needed for cooking. Since the resulting pH is lower than desired
for fermentation, it may be increased after fermentation is complete by neutralizing some of the acid with either powdered
limestone or ammonium hydroxide. It also may be desirable to add a small amount of glucoamylase enzyme after pH correction
in order to convert the remaining dextrins.
High-temperature versus low-temperature cooking. Grain must be cooked
to rupture the starch granules and to make the starch accessible to the hydrolysis agent. Cooking time and temperature are
related in an inverse ratio: high temperatures shorten cooking time. Industry practice is to heat the meal-water mixture by
injecting steam directly rather than by heat transfer through the wall of the vessel. The latter procedure runs the risk of
causing the meal to stick to the wall; the subsequent scorching or burning would necessitate a shutdown to clean the surface.
High-temperature cooking implies a high-pressure boiler. Because regulations may require an operator in constant
attendance for a high-pressure boiler operation, the actual production gain attributable to the high temperature must be weighed
against the cost of the operator. If there are other supporting rationale for having the operator, the entire cost does not
have to be offset by the production gain.
Continuous versus batch processes. Cooking can be accomplished with continuous
or batch processes. Batch cooking can be done in the fermenter itself or in a separate vessel. When cooking is done in the
fermenter, less pumping is needed and the fermenter is automatically sterilized before fermenting each batch. There is one
less vessel, but the fermenters are slightly larger than those used when cooking is done in a separate vessel. It is necessary
to have cooling coils and an agitator in each fermenter.
If cooking is done in a separate vessel, there are advantages
to selecting a continuous cooker. The continuous cooker is smaller than the fermenter, and continuous cooking and hydrolysis
lend themselves very well to automatic, unattended operation. Energy consumption is less because it is easier to use counterflow
heat exchangers to heat the water for mixing the meal while cooling the cooked meal. The load on the boiler with a continuous
cooker is constant. Constant boiler load can be achieved with a batch cooker by having a separate vessel for preheating the
water, but this increases the cost when using enzymes.
Continuous cooking offers a high-speed, high-yield choice
that does not require constant attention. Cooking at atmospheric pressure with a temperature a little over 200 deg F (93 deg
C) yields a good conversion ratio of starch to sugar, and no high-pressure piping or pumps are required.
Separation
versus nonseparation of nonfermentable solids. The hydrolyzed mash contains solids and dissolved proteins as well as sugar.
There are some advantages to separating the solids before fermenting the mash, and such a step is necessary for continuous
fermentation.
Batch fermentation requires separation of the solids if the yeast is to be recycled. If the solids
are separated at this point, the beer column will require cleaning much less frequently, thus increasing the feasibility of
a packed beer column rather than plates. The sugars that cling to the solids are removed with the solids. If not recovered,
the sugar contained on the solids would represent a loss of 20%o of the ethanol. Washing the solids with the mash water is
a way of recovering most of the sugar.
Continuous fermentation. The advantage of continuous fermentation of clarified
beer is the ability to use high concentrations of yeast (this is possible because the yeast does not leave the fermenter).
The high concentration of yeast results in rapid fermentation and, correspondingly, a smaller fermenter can be used. However,
infection with undesired micro-organisms can be troublesome because large volumes of mash can be ruined before the problem
becomes apparent.
Click here to see a video showing how to prepare and make a good sweet mash from cornnmeal. Pay attention to how adding the
enzymes seem to almost liquify the thick corn porridge, so it ferments much faster and is easier to handle.
Here is a link to buying commercially available enzymes.
This link is for diastase of malt, better known as amalayse. It is available in 100 gram quantities (about 4 ounces) for 16
bucks. This should be enough for quite a few batches.
Here is a link for buying not too expensive, high quality wine yeast, which will produce higher alcohol content than bread
yeast.
How do you measure your alcohol content?
You need a hydrometer: you need to measure how strong your mash is before you run the still. You can expect 5 or 6% alcohol
in beer made from grain, but various high sugar content sources like grapes, plums, and molasses can yield 14% alcohol or
higher. So test with a hydrometer to see if the fermentation batch is done.
Also, you need to test the high proof alcohol after it comes out of the still (and has cooled down to room temperature)
to see the proof.
Look at this hydrometer: it reads from 0% - 100% alcohol by volume and also by proof. Alcohol volume is exactly half
of the proof. A 180 proof batch of fuel is 90% alcohol by volume.
Ethanol Plant Development Handbook: Fourth Edition Now Available! The Ethanol Plant Development Handbook, previously published
in 2001 as the third edition, is now available as a completely revised fourth edition. This handbook was updated in order
to respond to the numerous inquiries regarding the construction of an ethanol plant. This is not a "how-to" book, but rather
an outline of important considerations prior to proceeding with the development of a grain dry mill ethanol plant.
Making Ethanol from: Potato Waste
 Ethanol can also be made from the waste at potato processing plants. The
J.R. Simplot Company has fermented potato waste into fuel grade ethanol at two plants in Idaho for many years. These plants
are small, but their design is similar to those of drymill corn ethanol plants. Basically, the process is as follows:
1) The potato waste is ground into small particles, heated and pH adjusted.
2) That slurry is then treated with several enzymes. The first reduces starch to dextrins. The mash is cooled and
treated with a second enzyme to reduce the dextrins to sugar.
3) The sugars are then fermented by yeast into alcohol.
4) The alcohol is then distilled to remove water.
5) The ethanol is then dehydrated, denatured and sold.
6) The byproduct is further processed to reduce water content and is sold as an animal feed.
A typical yield from corn is about 4.2 gallons (17 litres) per cwt (100 lbs, or 45.45
kg). In contrast, potato waste from french fry processing plants yields about ½ gallon of ethanol per cwt. Whole potatoes
may yield slightly more than 1 gallon per cwt. Yield is the function of starch content of the feedstock used in ethanol production.
It is believed that a similar process would work using cassava or sweet potatoes as a feedstock,
although those feedstocks contain more fiber, which would most likely necessitate the use of additional enzymes, such as cellulase,
to reduce the viscosity of the mash.
My web page on making your own E85 provides very good information on grinding and fermenting dry corn.
The American Coalition for Ethanol has a very good web site devoted to large scale ethanol production.
Robert Warren's Still
Molasses and Rum
Click here for Tony Ackland's very comprehensive website on alcohol distillation. He is a true expert, and there is lots of
good stuff here. He shows a lot of stills, mostly for to do with making small quantities of drinking alcohol. If that is what
you are after, spend some time on his site. My still is listed there for making alcohol for fuel. Same stuff, really, but
I don't care what mine tastes like: I just want a good source of clean, powerful fuel.
|
 |
|
|
|
|
|
|
|

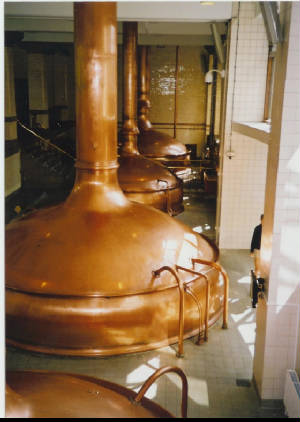

| Heineken Brewing kettles, Amsterdam |
|
| There are 4 different types of kettles here = 4 of 5 stages of brewing |
How Heineken brews beer:
This photo shows the main brewing room of the original Heineken Brewery in downtown Amsterdam. It is no longer
used for brewing, but rather is now a high-tech visiter's center. It is quite an interesting place to visit,
if you are in Amsterdam and have a couple of hours for a fun tour, followed by some product sampling in the tap
room at the end of the tour.
First, they sprout some barley grains to activate the natural enzymes in the grain. Once the new little roots
are about 2 cm long, this grain is then dried and ground into powder. This is then known as barley malt, rich in enzymes which
help break the starches into simple sugars, which is what the yeast likes. The malt is added to the mash (cooked barley
and water) early in the brewing process, while it is cooling down, and before yeast is added. The first kettle,
in this photo, is the cooker kettle. It is smaller than the others, as they heat the whole batch by heating only a portion
of it and then pump the hot liquid back into the first brewing kettle. This is batch cooking. Then it is pumped
from the second tank into the third for gradual cooling, where they then add the malt and finally their Type A yeast.
This tank is also very closely monitered for temperature and contact time with the malt and yeast, then it is pumped into
a fermentation tank, where the hops are added for flavouring. There are four fermentation tanks, all fed by the first
three tanks. When fermentation is finished, there is a huge sieve at the bottom of these tanks so the solids are
filtered out, and the beer is drained into a large clarifying tank below this room, so any other tiny particles can settle
out before bottling.
This plant is quite beautiful in terms of the size and quality of equipment, as well as simplicity of processing.
The only difference in brewing so you can make your own fuel is that it is a whole lot smaller, and you don't
need to add the hops for flavouring.
Batch fermentation.
Relatively short fermentation time are attained in this continuous process by using high concentrations of yeast
in batch fermentation. The high yeast concentrations are economically feasible because the yeast is recycled. Batch fermentations
of un-clarified mash are routinely accomplished in less than 30 hours. High conversion efficiency is attained as sugar is
converted to 10%-alcohol beer without yeast recycle. Further reductions in fermentation require very large quantities of yeast.
The increases attained in ethanol production must be weighed against the additional costs of the equipment and time to culture
large yeast populations for inoculation.
Specifications of your fermentation tank.
The configuration of the fermentation tank has very little influence on system performance. In general, the proportions
of the tank should not be extreme. The primary consideration is that you want to be able to keep this tank warm, so it should
be insulated.
Commonly, tanks are upright cylinders (oil drums) with the height somewhat greater than the diameter. The bottom
may be flat (but sloped for drainage) or conical. The construction materials may be carbon steel (commonplace), stainless
steel, copper, wood, fiberglass, reinforced plastic, or concrete coated on the inside with sprayed-on vinyl. Usually, the
tanks are covered to permit collection of the C02 evolved during fermentation so that the ethanol which evaporates with it
can be recovered. This can be accomplished with a simple kitchen U-trap drain pipe, plumbed via reducer fittings
to the top 2 inch threaded fitting. Fill the trap with water, and the CO2 gases will bubble out through the water and no flies
can get into you precious mash.
Feedstocks:
Many potential feedstocks are characterized by relatively large amounts of fibrous material. Fermentation of sugar-rich
material such as sugar beets, sweet sorghum, Jerusalem artichokes, and sugarcane as chips is not a demonstrated technology
and it has many inherent problems. Typically, the weight of the nonfermentable solids is equal to or somewhat greater than
the weight of fermentable material. This is in contrast to grain mashes which contain roughly twice as much fermentable material
as non-fermentable material in the mash. The volume occupied by the non-fermentable solids reduces the effective capacity
of the fermenter. This means that larger fermenters must be constructed to equal the production rates from grain fermenters.
Furthermore, the high volume of non-fermentable material limits sugar concentrations and, hence, the beer produced is generally
lower in concentration (6% versus 10%) than that obtained from grain mashes. This fact increases the energy spent in distillation.
Since the non-fermentable solid chips are of larger size, they will clog up the steam line between your cooker and
the disstillation column. It is necessary to separate the solids from the beer after fermentation because of the potential
for plugging the still. The separation can be easily accomplished, but a significant proportion of the ethanol (about 20%)
would be carried away by the dewatering solids.
If recovery is attempted by "washing out," the ethanol will be much more
dilute than the beer. Since much less water is added to these feedstocks than to grain (the feedstock contains large amounts
of water), only part of the dilute ethanol solution from the washing out can be recycled through the fermenter. The rest would
be mixed with the beer, reducing the concentration of ethanol in the beer which, in turn, increases the energy required for
distillation.
Another approach is to evaporate the ethanol from the residue. By indirectly heating the residue, the
resulting ethanol-water vapor mixture can be introduced into the beer column at the appropriate point. This results in a slight
increase in energy consumption for distillation.
The fermenter for high-bulk feedstocks differs somewhat from that
used for mash. The large volume of insoluble residue increases the demands on the removal pump and pipe plugging is more probable.
Agitators must be sized to be self-cleaning and must prevent massive settling. High-speed and high-power agitators must be
used to accomplish this.
The equipment for separating the fibrous residue from the beer when fermenting sugar crops
could be used also to clarify the grain mash prior to fermentation. This would make possible yeast recycling in batch fermentation
of grain.
Temperature control.
Since there is some heat generated during fermentation, care must be taken to ensure that the temperature does not rise
too high and kill the yeast. In fermenters the size of those for on-farm plants, the heat loss through the metal fermenter
walls is sufficient to keep the temperature from rising too high when the outside air is cooler than the fermenter. Active
cooling must be provided during the periods when the temperature differential cannot remove the heat that is generated. The
maximum heat generation and heat loss must be estimated for the particular fermenter to assure that water cooling provisions
are adequate. Fermentation Addendum The optimum fermentation conditions are a temperature
of 86 deg F (30 deg C) and a pH of 4 to 5. When the grains are left in the sweet wort or when backset is utilized, a buffering
capacity is added that assists in maintaining the required pH (acidity). The expected alcohol yield from a 15-25% solution
of fermentable sugars is 6.75 to 11.25% by weight. The time required to complete the fermentation is dependent upon
the strain of yeast used. A variety of yeasts were tested for molasses fermentation in order to find a yeast strain that is
highly efficient under variable conditions. (A group of 12 so tested is listed in the table below.) The ATCC 4132 produced
93 to 95% of the theoretical yield of alcohol from molasses without molasses pre-treatment. The remainder of the yeasts were
less efficient in alcohol production with the 48-hour fermentation efficiency ranging down to 35% (Heinz, September 11, 1979).
Whatever feed stock you now use, and ferment with Temperature Tolerant Turbo Yeast will
improve your fermentation! Whatever pH you currently ferment in, Temperature Tolerant Turbo Yeast will ferment to and
it have it´s general best performance between pH 4 and 5.5.
ATCC -- American Type Culture Collection DADY -- Universal Foods Corporation BAKER -- Local procurement NCYC
-- National Collection of Yeast Culture, Brewing Research Foundation, England. For small-scale production, the
most readily available yeast is active dry yeast especially designed for distillers' use in grain mash fermentation. This
product has been found to work well for beet, cane, and citrus molasses fermentation. The yeast is designed to produce uniform,
rapid fermentation and maximum alcohol yields under a wide range of temperatures and pH. The time required for fermentation
will vary with the temperature, although most estimates are for 48 to 72 hours. temperature tolerant Again, a high yield yeast will save you time and money and provide superior results.
Yields of alcohol may be reduced if there is any contamination of the sweet wort. Contamination with undesirable
micro-organisms will decrease the yield of alcohol as these will compete with the yeast for the sugar. Prior to the addition
of the yeast, contamination from external sources or from the equipment itself may occur readily in the cooling of the sugar
mixture.
At this point in the process, the sugar solution is a suitable medium for growing a variety of microbes that
may be pathogenic or produce toxic substances (Crombie, 1979). Microbes may be introduced with the raw materials initially,
via the addition of cooling water, or from the air; thus, provision needs to be made for high-quality water, and the design
must incorporate some protection from possible contamination from the air.
Fortunately the contamination problem is
mitigated by the fact that yeast populations grow quite rapidly, and overwhelm many of the potentially competing organisms.
In addition, the initial inoculation introduces a large yeast population that allows the yeast a head start. Provided care
is exercised and, thus, unwanted microbial action does not occur, decreases in the yield of ethanol resulting from competing
reactions can be held to a minimum.
Undesirable microbial reactions occurring in the fermentation step may produce
unwanted substances in the stillage, but since these cannot be predicted in advance and would be batch-specific, they would
need to be handled on an individual batch basis.
The solution to the contamination problem involves the design of
the production facility and the training of the process operator. The plant must be designed in such a fashion that sanitation
is readily accomplished and contamination of the sweet wort may be avoided when reasonable care is exercised. Once the operating
procedures for a plant are established, these problems should be minimal.
All equipment currently being marketed utilizes
a batch fermentation process; however, continuous fermentation units have been used in some industrial applications. A continuous
fermentation process allows the use of smaller fermenters and supplementary equipment; it has been of interest for many years.
Continuous fermentation methods have been used successfully on waste sulfite liquor in Europe. Since sulfite liquors
are sterile and even antiseptic, continuous fermentation is possible and desirable.
With fermentable substances such
as molasses, however, any contamination is cumulative and soon spreads throughout the system to reduce yields. The contamination
can be controlled to some extent using penicillin or other antibiotics, but their use to control organisms competing for sugars
and decreasing alcohol yields creates another problem: the use of by-product feed. The antibiotic content of feeds for livestock
is carefully controlled by the Food and Drug Administration. FDA requires tests to show that antibiotics and their degradation
products in the resulting by-product feeds are below the maximum allowable levels. Most of these antibiotics are destroyed
in the drying process. One commercial ethanol producer looked at and experimented with a continuous process, but finally gave
up because of the contamination problems involved.
However, continuous fermentation could conceivably work well if
the fermentable solution could be sterilized. But with grains or cellulose feedstocks, the grain particles and fiber present
in the sweet wort make such sterilization extremely difficult.
Although continuous fermentation offers a more rapid
method of producing ethanol with smaller tanks, etc., problems remain to be worked out before the system is feasible for the
small-scale operator using grains as a feedstock. Work is underway at the present time to develop continuous automated equipment
for small-scale ethanol production.
If wheat is used as the feedstock, special provisions must be made for the additional
foaming that occurs during fermentation because of the presence of the gluten protein. Three possibilities exist to handle
this problem: increasing the capacity of the equipment over that for the same quantities of corn; using a defoaming agent;
or removing the gluten protein prior to the fermentation process.
Since the fermentation process produces heat and
the optimum fermentation temperature is about 90 deg F (32 deg C), cooling is necessary in order for the yeast to survive
and work efficiently. The formation of ethanol is accompanied by approximately 287 kilocalories per kilogram of ethanol produced:
517 BTU per pound or 3,418 BTU per gallon (Alfa-Laval, undated). If insufficient cooling is provided, the fermentation times
are increased. Where no provision is made for removal of the heat of fermentation, heat losses may occur in both of these
ways: [1] from the evolution of carbon dioxide, and [2] from convection and radiation from the walls and other surfaces of
the fermenter vessel. Heat removal in the off-gas is relatively small, even though the gas is saturated with water vapor and
its attendant evaporative cooling effect. If heat evolution is too great to be dissipated by radiation, the increasing temperature
of the contents results in a decreased yeast activity and a greater heat release.
More or less energy?
Click here to go to a 268-page official report to the Governor of California (1999) on Biomass-to-Ethanol conversion. This
report provides accurate data on the fuel potential of various agricultural crops, reporting (page 171) that the cost of producing
ethanol varies from $0.97 to $1.22 per gallon of ethanol if various agricultural wastes are fermented. This report is particularly
valuable if you are considering building a commercial ethanol production facility. A thorough description of using enzymes
to convert various starch-bearing plants into simple sugars for fuel production starts on page 210. Further reading is worthwhile,
as this report is not merely an economic projection of academics, but provides real-world reports from present-day industrial
ethanol producers: what they do, how they do it, and how much it costs for them to produce fuel ethanol. On page 230 is a
chart showing how fluxuating market prices for corn over the past 10 years has made the cost of producing ethanol from corn
vary from $1.01 to $1.54/gallon.
|
|
|
|
|
