Audi 01E Transmission Info


Date last modified: Mar 05, 2002
Back to main 01E 5 & 6 Speed Transmission Information - Photo, specs, and part numbers
Click on any image to see larger version,

Thanks to Robert Braunschweig (rbrauns@arcor.de) in Germany
and to Paul Fernandes (fzw642@lu.gmeds.com) in Luxembourg
for most of these pictures.


NOTE - NO Bump
Center transmission case
01E 301 211 from CBD or
early CGR with narrow 1st gear
NOTE - Bump under left arrow
Center transmission case
01E 301 211 B from CRB or
other with wide 1st gear

NOTE narrow depression
at right edge of picture
01E 301 211 B from DGU
from '96 S6+

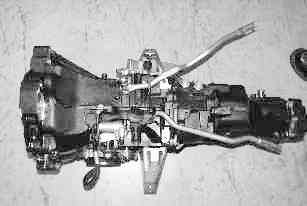

Good view of center section with
wide 1st gear.

RS2 tail housing guide for ProConTen
cables. Also shows bumped out area
for wide 1st gear.
Guide for ProConTen for UrS4/S6
and V8 bodied cars.
See comments on enlargement.

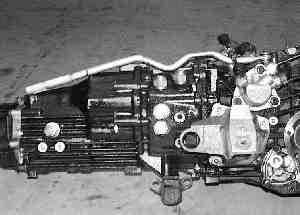

Top view showing shift pivot rod
as used on UrS4 / UrS6 / V8 bodied cars

Shift pivot plate as used
on S2 and RS2 body cars

Transmission tail housing without
guide for the ProConTen cables.
See comments on enlargement.
211 C   and 211 B   endhousings
showing casting w/wo bump for ProConTen guide
( only 211 B   here in thumbnail )


UNUSED Space

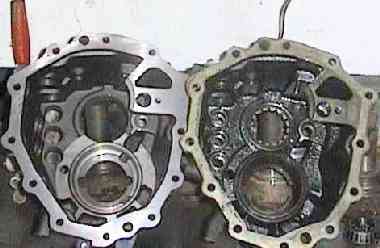

Inside of 211 B/C   and 211 A   showing machined
area for wider 1st gear and no machining on 211 A.
