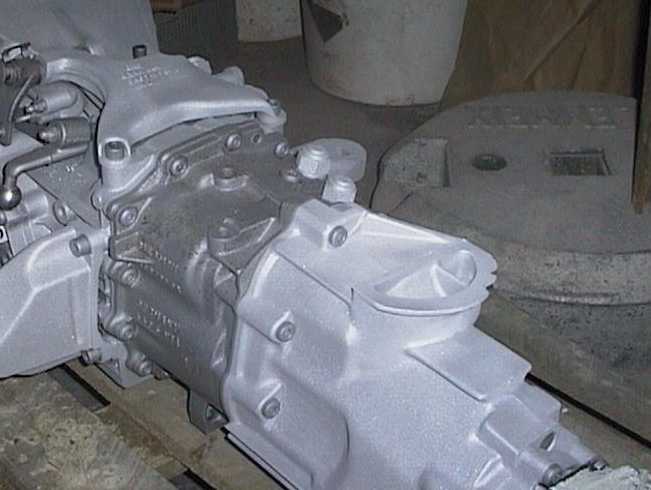

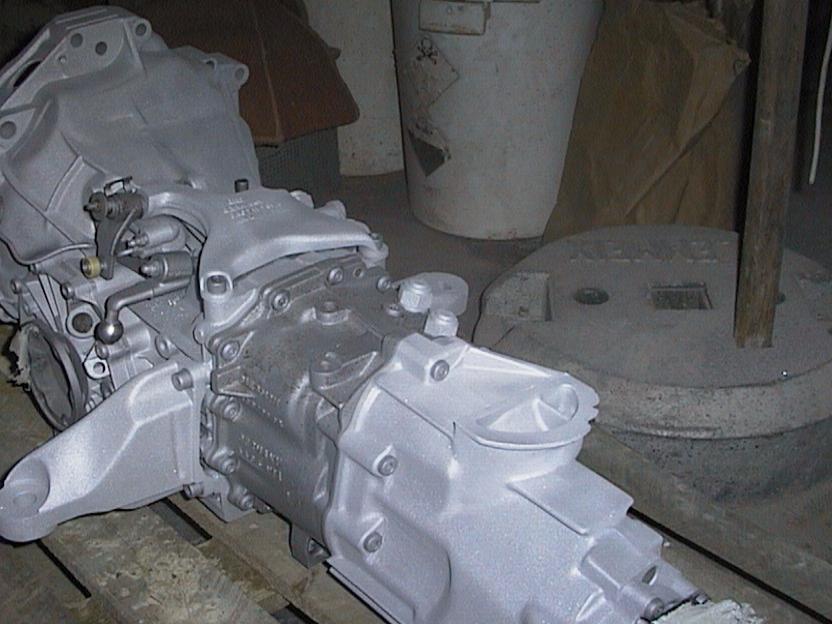

This is an RS2 transmission. The rear section with the cast-in guide for ProConTen cables can be seen clearly. The transmissions in the large bodied cars, UrS4/S6 and V8s, do not have this cast-in guide. The large bodied cars use a bolt-on ProConTen guide that bolts on top of the center section of the transmission. This also gives a good view of the center section with the bumped out area for a wide 1st gear. In this photo, the center section has a noticably darker color than either the rear section on the right or the front differential / bell housing section to the left. This transmission still has the CBR type shift plate on the top. The CBD has the shift pivot coming off the cover that houses the backup light switch on the top right side. This information and pictures copyright © Charles Smith, 2002. Click again for more detailed original source picture |
