NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

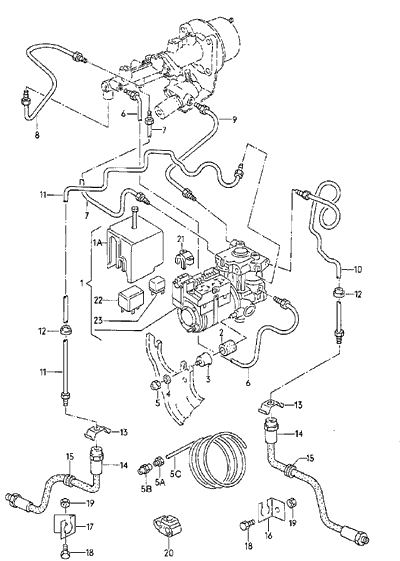

HYDRAULIC PUMP |
FRONT |
|
|
|
|
|
BRAKE LINE |
|
|
|
|
|
|
BRAKE HOSE |
|
|
|
|
|
|
FOR VEHICLES
WITH ANTI-LOCKING |
|
|
|
|
|
|
BRAKE SYSTEM
-ABS- |
|
|
|
|
1 |
857
614 111 |
ABS UNIT |
|
1 |
|
|
1A |
857
614 112 |
CAP |
|
1 |
QUATTRO |
|
2 |
437
614 177 |
BUFFER |
|
3 |
|
|
3 |
443
614 171 |
BUSH |
|
3 |
|
|
4 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
3 |
|
|
5 |
N 011 183 11 |
HEX. NUT,
SELF-LOCKING |
M6 |
3 |
|
|
5A |
113
611 731 |
UNION NUT |
M10X1/5 SW11 |
X |
|
|
5B |
411
611 789 |
CONNECTING
PIECE |
M10X1 |
X |
|
|
5C |
111
611 998 |
BRAKE LINE IN
ROLLS OF 5M |
4,75X0,7 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
6 |
191 611 994 B |
BRAKE LINE,
FLANGED |
|
1 |
|
|
|
|
FREE LENGTH: |
450MM |
|
|
|
- |
111
611 998 |
BRAKE LINE IN
ROLLS OF 5M |
4,75X0,7 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
7 |
|
SHORTEN TO: |
247MM |
1 |
MB |
|
|
|
SHORTEN TO: |
236MM |
1 |
RR |
|
8 |
191 611 994 A |
BRAKE LINE,
FLANGED |
|
1 |
MB |
|
|
|
FREE LENGTH: |
400MM |
|
|
|
-8 |
|
SHORTEN TO: |
272MM |
1 |
RR |
|
9 |
|
SHORTEN TO: |
287MM |
1 |
MB |
|
-9 |
|
SHORTEN TO: |
320MM |
1 |
RR |
|
-9 |
|
BRAKE LINE FROM
BRAKE PRESSURE |
|
|
|
|
|
|
REGULATOR TO
T-PIECE |
|
|
|
|
-9 |
|
SHORTEN IF
NECESSARY |
|
1 |
SPORTQUATTRO |
|
10 |
191 611 994 L |
BRAKE LINE,
FLANGED |
|
1 |
|
|
|
|
FREE LENGTH: |
900MM |
|
|
|
11 |
191 611 996 E |
BRAKE LINE,
FLANGED |
|
1 |
|
|
|
|
FREE LENGTH: |
1600MM |
|
|
|
12 |
211
611 751 |
GROMMET |
14/4,5 |
2 |
|
|
13 |
803
611 715 |
BRACKET FOR
HOSE |
|
2 |
|
|
14 |
433
611 707 |
BRAKE HOSE |
M10X1,0X353 |
|
|
|
|
|
F >>
85-G-902 400 |
|
2 |
|
|
-14 |
443 611 707 C |
BRAKE HOSE |
M10X1,0X405 |
|
|
|
|
|
F 85-H-900
001>> |
|
2 |
|
|
15 |
171
611 819 |
GROMMET |
17.nov |
2 |
|
|
16 |
431
611 797 |
BRACKET FOR
BRAKE HOSE |
LEFT |
|
|
|
|
|
F >>
85-G-902 400 |
|
1 |
|
|
-16 |
443 611 797 B |
BRACKET FOR
BRAKE HOSE |
LEFT |
|
|
|
|
|
F 85-H-900
001>> |
|
1 |
|
|
17 |
431
611 798 |
BRACKET FOR
BRAKE HOSE |
RIGHT |
|
|
|
|
|
F >>
85-G-902 400 |
|
1 |
|
|
-17 |
443 611 798 B |
BRACKET FOR
BRAKE HOSE |
RIGHT |
|
|
|
|
|
F 85-H-900
001>> |
|
1 |
|
|
18 |
N 010 215 27 |
SCREW,
HEXAGONAL HEAD |
M6X15 |
2 |
|
|
19 |
N 022 148 1 |
HEX. NUT,
SELF-LOCKING |
M6 |
2 |
|
|
20 |
811
611 797 |
BRACKET |
|
X |
|
|
21 |
443 972 969 B |
CLIP |
|
1 |
|
|
22 |
437
927 829 |
RELAY |
|
1 |
|
|
|
|
PUMP |
|
|
|
|
23 |
701
927 841 |
RELAY |
12V40A |
1 |
|
|
|
|
FOR SOLENOID
VALVE |
|
|
|
|
|
|
|
|
|
|
