NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

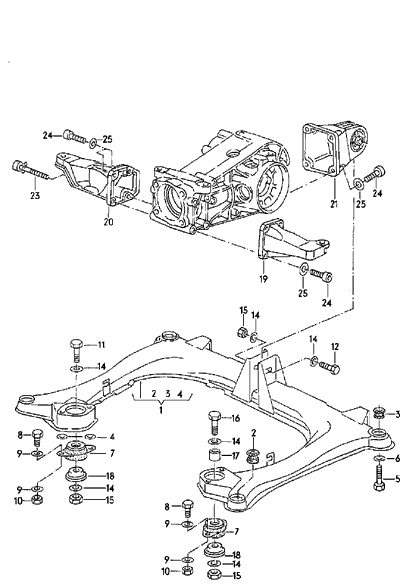

SUB FRAME |
REAR |
|
|
|
|
|
F 85-J-900
001>> |
|
|
|
|
1 |
895 505 235 F |
SUB FRAME |
REAR |
1 |
|
|
2 |
857 199 419 C |
RUBBER MOUNTING |
FRONT |
2 |
|
|
3 |
857 199 415 B |
RUBBER MOUNTING |
REAR |
2 |
|
|
4 |
857
525 293 |
WASHER |
|
2 |
|
|
5 |
N 905 569 02 |
SCREW,
HEXAGONAL HEAD |
M10X75 |
4 |
|
|
6 |
823
199 347 |
WASHER |
|
4 |
|
|
7 |
857
599 431 |
BONDED RUBBER
MOUNTING |
|
2 |
|
|
8 |
N 010 240 16 |
SCREW,
HEXAGONAL HEAD |
M8X20 |
4 |
|
|
9 |
N 011 525 13 |
WASHER |
A8,4 |
8 |
|
|
10 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
4 |
|
|
11 |
N 010 481 4 |
SCREW,
HEXAGONAL HEAD |
M10X95 |
1 |
|
|
12 |
N 010 472 6 |
SCREW,
HEXAGONAL HEAD |
M10X85 |
1 |
|
|
13 |
N 011 527 11 |
WASHER |
A10,5X21X2 |
2 |
|
|
14 |
N 011 546 1 |
WASHER |
A11X24X3 |
4 |
|
|
15 |
N 102 951 01 |
HEX. NUT,
SELF-LOCKING |
M10 |
3 |
|
|
16 |
N 010 500 2 |
SCREW,
HEXAGONAL HEAD |
M10X110 |
1 |
|
|
18 |
431 399 291 A |
STOP |
|
2 |
|
|
19 |
893
599 131 |
SUPPORT FOR
TRANSMISSION |
LEFT |
1 |
|
|
20 |
893
599 132 |
SUPPORT FOR
TRANSMISSION |
RIGHT |
1 |
|
|
21 |
853
599 125 |
SUPPORT FOR
TRANSMISSION |
REAR |
1 |
|
|
23 |
N 101 025 01 |
BOLT, WITH HEX.
SOCKET |
M10X108 |
2 |
|
|
|
|
HD. (COMBI.) |
|
|
|
|
24 |
N 014 723 6 |
BOLT, WITH HEX.
SOCKET |
M10X30 |
24 |
|
|
|
|
HD. |
|
|
|
|
25 |
N 011 560 8 |
WASHER |
10,5X18X1,6 |
10 |
|
|
|
|
|
|
|
|
|
