| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

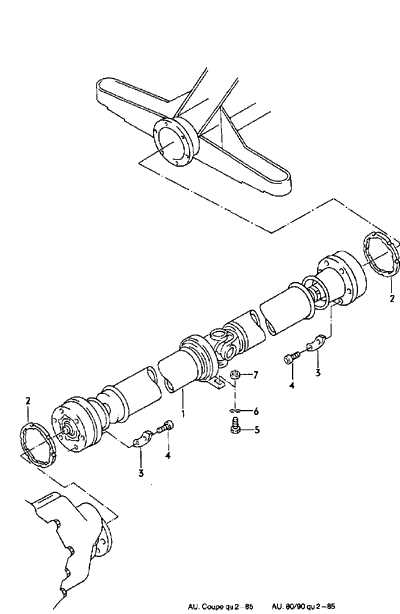

| PROPELLER SHAFT | |||||||
| 1 | >857 521 101 D | PROPELLER SHAFT | 60MM | 1 | QUATTRO | ||
| -1 | ~857 521 101 DX | PROPELLER SHAFT | 60MM | 1 | QUATTRO | ||
| -1 | 859 521 101 | PROPELLER SHAFT | 1 | SPORTQUATTRO | |||
| 2 | 183 521 141 A | GASKET | 2 | ||||
| 3 | 803 407 357 | PLATE | 6 | ||||
| 4 | N 019 926 1 | BOLT, WITH HEX. SOCKET HD., | M8X48 | 12 | |||
| SELF-LOCKING | |||||||
| 5 | N 010 233 6 | SCREW, HEXAGONAL HEAD | M8X28 | 2 | |||
| 6 | N 012 228 3 | SPRING WASHER | B8X17X0,8 | 2 | |||
| 7 | 857 521 143 | SHIM | 20X10X2 | X | QUATTRO | ||
| -7 | 857 521 143 B | SHIM | 20X10X6 | X | QUATTRO | ||
| -7 | 857 521 143 C | SHIM | 20X10X8 | X | QUATTRO | ||
| -7 | 857 521 143 D | SHIM | 20X10X10 | X | QUATTRO | ||
| 8 | 857 521 143 A | SHIM | 20X10X4 | X | QUATTRO | ||
| - | N 018 504 3 | CONICAL HEAD LUBRICAT. NIPPLE | CM8X1 | 1 | |||
