NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

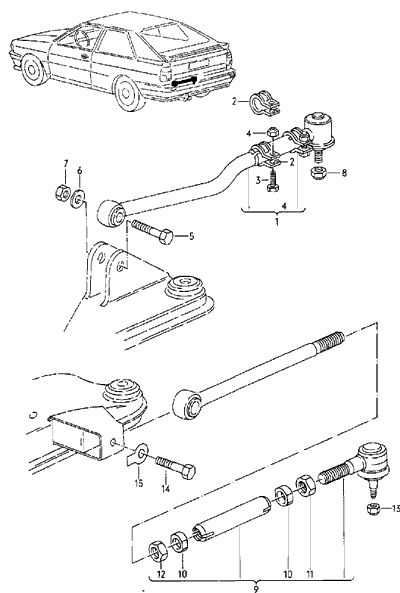

TIE ROD | REAR | ||||||
1 | 857 501 499 A | TIE ROD | |||||
F >> 85-C-902 000 | 2 | ||||||
2 | 857 501 547 | RETAINING CLIP | 4 | ||||
3 | SCREW, HEXAGONAL HEAD | 1 | |||||
NO LONGER AVAILABLE | |||||||
4 | N 022 152 1 | HEX. NUT, SELF-LOCKING | M8X1-STOVER | 4 | |||
5 | N 010 154 6 | SCREW, HEXAGONAL HEAD | M12X1,5X55 | 2 | |||
6 | N 011 531 7 | WASHER | A13X24X2,5 | 2 | |||
7 | N 021 191 6 | HEX. NUT, SELF-LOCKING | M12X1,5 | 2 | |||
8 | --- --- --- . | DISCONTINUED / REPLACEMENT: | N 021 191 6 | 2 | |||
9 | 857 501 499 C | TIE ROD | |||||
F 85-D-900 001>> 85-J-900 621 | 2 | ||||||
-9 | 893 501 499 A | TIE ROD | |||||
F85-J-900 622* | 2 | ||||||
10 | 431 419 813 | CLAMPING RING | 4 | ||||
SUPPLIED | |||||||
ALTERNATIVELY: | 141 415 855 A | 4 | |||||
11 | N 011 113 5 | HEX. NUT | BM14X1,5 | 2 | |||
12 | N 011 113 6 | HEX. NUT | BM14X1,5LH | 2 | |||
13 | N 011 189 6 | HEX. NUT, SELF-LOCKING | M10X1 | 1 | |||
14 | N 010 142 7 | BOLT, HEXAGON HEAD | M12X1,5X50 | 2 | |||
SELF-LOCKING | |||||||
15 | N 012 183 1 | LOCK PLATE | 13 | 2 | |||
- | 133 419 809 | RUBBER MOUNTING | 2 | SPORTQUATTRO | |||
- | 141 415 855 A | TAPERED RING | 4 | SPORTQUATTRO | |||
