NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

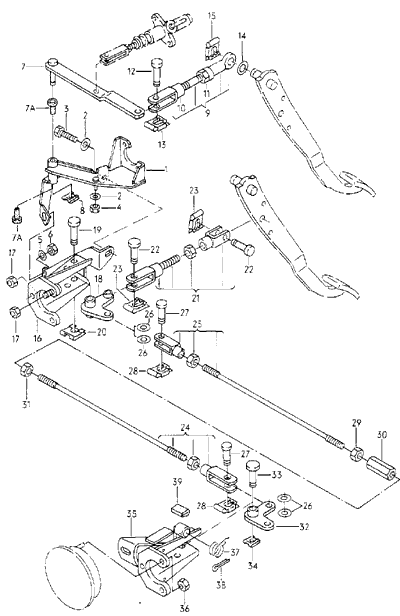

BRAKE AND
CLUTCH PEDALS |
RHD |
|
|
|
|
|
CLUSTER |
|
|
|
|
1 |
857
721 485 |
BRACKET |
|
1 |
|
|
2 |
N 015 401 3 |
WASHER |
8,4X21X4 |
2 |
|
|
3 |
N 010 240 16 |
SCREW,
HEXAGONAL HEAD |
M8X20 |
1 |
|
|
4 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
1 |
|
|
5 |
N 015 401 3 |
WASHER |
8,4X21X4 |
1 |
|
|
6 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
1 |
|
|
7 |
857
721 061 |
LEVER |
|
1 |
|
|
7A |
443 721 153 A |
BUSH |
|
2 |
|
|
8 |
N 012 653 1 |
LOCK WASHER |
9 |
1 |
|
|
9 |
857
721 501 |
PULL ROD |
|
1 |
|
|
10 |
N 900 065 01 |
CLEVIS |
G8X32 |
1 |
|
|
11 |
N 011 118 11 |
HEX. NUT |
BM8 |
1 |
|
|
12 |
N 023 492 1 |
PIN |
8H11X19,5X16 |
1 |
|
|
13 |
N 900 470 01 |
LOCK WASHER |
6X0,4 |
1 |
|
|
14 |
N 011 525 13 |
WASHER |
A8,4 |
1 |
|
|
15 |
N 900 470 01 |
LOCK WASHER |
6X0,4 |
1 |
|
|
16 |
812
721 701 |
BRACKET |
|
1 |
|
|
17 |
N 902 920 01 |
HEX. NUT,
SELF-LOCKING |
M8 |
2 |
|
|
18 |
322
721 709 |
ANGLED LEVER |
|
1 |
|
|
19 |
322
721 737 |
PIVOT PIN |
|
1 |
|
|
20 |
N 902 547 01 |
LOCK WASHER |
8X0,5 |
1 |
|
|
21 |
322
721 292 |
PUSH ROD |
|
1 |
|
|
22 |
172 721 725 B |
PIN |
|
2 |
|
|
23 |
N 900 470 01 |
LOCK WASHER |
6X0,4 |
2 |
|
|
24 |
322
721 721 |
PULL ROD |
LEFT |
1 |
|
|
25 |
322
721 722 |
PULL ROD |
RIGHT |
1 |
|
|
26 |
--- --- --- |
NO LONGER
AVAILABLE |
|
|
|
|
27 |
172 721 725 B |
PIN |
|
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
-27 |
N 900 512 01 |
PIN |
10D11X20,6X7,1 |
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
28 |
N 900 470 01 |
LOCK WASHER |
6X0,4 |
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
-28 |
N 902 547 01 |
LOCK WASHER |
8X0,5 |
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
29 |
N 011 008 8 |
HEX. NUT |
M8 |
1 |
|
|
30 |
N 900 203 01 |
TURNBUCKLE |
M8 |
1 |
|
|
31 |
N 011 118 4 |
HEX. NUT |
M8LH |
1 |
|
|
32 |
812
721 710 |
ANGLED LEVER |
|
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
-32 |
812 721 710 B |
ANGLED LEVER |
|
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
33 |
322
721 737 |
PIVOT PIN |
|
1 |
|
|
34 |
N 902 547 01 |
LOCK WASHER |
8X0,5 |
1 |
|
|
35 |
812
721 731 |
BRACKET |
|
1 |
|
|
36 |
N 902 920 01 |
HEX. NUT,
SELF-LOCKING |
M8 |
4 |
|
|
37 |
812 721 191 B |
SPRING |
|
1 |
|
|
38 |
N 012 540 1 |
SPLIT PIN |
3,2X40 |
1 |
|
|
39 |
444
819 649 |
PROTECTIVE
EDGING |
600MM |
1 |
|
|
|
|
|
|
|
|
