NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

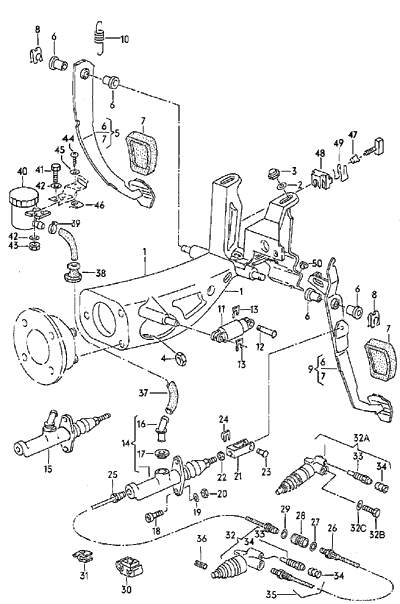

BRAKE AND
CLUTCH PEDALS |
LHD |
|
|
|
|
|
CLUSTER |
|
|
|
|
1 |
857
721 115 |
BRACKET FOR
PEDAL CLUSTER |
|
|
|
|
|
|
F >>
85-H-902 400 |
|
1 |
|
|
-1 |
857 721 115 A |
BRACKET FOR
PEDAL CLUSTER |
|
|
|
|
|
|
F 85-J-900
001>> |
|
1 |
|
|
- |
857
721 704 |
SUPPORT |
|
|
|
|
|
|
F 85-J-900
001>> |
|
1 |
|
|
2 |
N 011 525 13 |
WASHER |
A8,4 |
2 |
|
|
3 |
N 011 184 9 |
HEX. NUT,
SELF-LOCKING |
M8 |
2 |
|
|
-3 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
2 |
|
|
4 |
N 902 920 01 |
HEX. NUT,
SELF-LOCKING |
M8 |
3 |
|
|
5 |
857 721 139 A |
BRAKE PEDAL |
LHD |
1 |
|
|
-5 |
812 721 139 E |
BRAKE PEDAL |
RHD |
1 |
|
|
6 |
443 721 153 A |
BUSH |
|
4 |
|
|
7 |
447
721 173 |
PAD FOR |
LHD |
2 |
|
|
|
|
BRAKE AND
CLUTCH PEDALS |
|
|
|
|
|
07/80-07/91 01C |
SATIN BLACK |
|
|
|
|
-7 |
321
721 173 |
CAP |
RHD |
2 |
|
|
|
07/80-07/91 01C |
SATIN BLACK |
|
|
|
|
8 |
N 012 653 1 |
LOCK WASHER |
9 |
|
|
|
|
|
F >>
85-C-902 000 |
|
2 |
|
|
-8 |
N 900 703 01 |
LOCK WASHER |
9 |
|
|
|
|
|
F 85-D-900
001>> 85-H-902 400 |
|
2 |
|
|
-8 |
N 900 703 01 |
LOCK WASHER |
9 |
|
|
|
|
|
F 85-J-900
001>> |
|
1 |
|
|
- |
N 010 238 20 |
SCREW,
HEXAGONAL HEAD |
M8X15 |
|
|
|
|
|
F 85-J-900
001>> |
|
1 |
|
|
- |
N 011 696 1 |
WASHER |
B8,1X24X1,5 |
|
|
|
|
|
F 85-J-900
001>> |
|
1 |
|
|
9 |
857 721 315 C |
PEDAL CLUTCH |
LHD |
1 |
|
|
-9 |
857 721 315 B |
PEDAL CLUTCH |
RHD |
1 |
|
|
10 |
321
721 191 |
TENSION SPRING |
LHD |
1 |
|
|
-10 |
322
721 191 |
TENSION SPRING |
RHD |
1 |
|
|
11 |
437
721 403 |
OVER-CENTER
SPRING |
|
1 |
|
|
12 |
N 023 492 1 |
PIN |
8H11X19,5X16 |
2 |
|
|
13 |
N 900 649 01 |
LOCK WASHER |
6 |
2 |
|
|
14 |
857 721 401 A |
MASTER CYLINDER |
LHD |
1 |
|
|
15 |
478
721 171 |
MASTER CYLINDER |
RHD |
1 |
|
|
16 |
431
721 457 |
ELBOW |
|
|
|
|
|
|
F >>
85-D-902 500 |
LHD |
1 |
|
|
-16 |
113 611 153 A |
ANGLED PIPE |
135 FAG |
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
17 |
211 611 817 A |
PLUG |
18.jul |
2 |
|
|
|
|
|
LHD |
|
|
|
18 |
N 014 712 3 |
BOLT, WITH HEX.
SOCKET |
M8X18 |
2 |
|
|
|
|
HD. |
|
|
|
|
-18 |
N 010 242 22 |
SCREW,
HEXAGONAL HEAD |
M8X25 |
2 |
|
|
|
|
|
RHD |
|
|
|
19 |
N 011 670 16 |
WASHER |
8,4X24X2 |
2 |
|
|
|
|
|
RHD |
|
|
|
20 |
N 011 184 9 |
HEX. NUT,
SELF-LOCKING |
M8 |
2 |
|
|
|
|
|
RHD |
|
|
|
21 |
431 721 991 A |
CLEVIS |
LHD |
1 |
|
|
-21 |
N 900 511 01 |
CLEVIS |
G10X31 |
1 |
|
|
|
|
|
RHD |
|
|
|
22 |
N 011 006 24 |
HEX. NUT |
M6 |
1 |
|
|
|
|
|
LHD |
|
|
|
-22 |
N 011 118 11 |
HEX. NUT |
BM8 |
1 |
|
|
|
|
|
RHD |
|
|
|
23 |
N 023 153 1 |
PIN |
8H11X17,5X14 |
1 |
|
|
|
|
|
LHD |
|
|
|
-23 |
N 900 512 01 |
PIN |
10D11X20,6X7,1 |
1 |
|
|
|
|
|
RHD |
|
|
|
24 |
N 900 649 01 |
LOCK WASHER |
6 |
1 |
|
|
|
|
|
LHD |
|
|
|
-24 |
N 902 547 01 |
LOCK WASHER |
8X0,5 |
1 |
|
|
|
|
|
RHD |
|
|
|
25 |
853
721 477 |
HYDRAULIC
CLUTCH PIPE |
LHD |
1 |
|
|
-25 |
857 721 477 D |
HYDRAULIC
CLUTCH PIPE |
LHD |
1 |
RR |
|
-25 |
857 721 477 B |
HYDRAULIC
CLUTCH PIPE |
RHD |
1 |
|
|
26 |
431
721 465 |
CONNECTING HOSE |
|
1 |
|
|
-26 |
4A0 721 465 B |
PIPE/HOSE |
|
1 |
RR |
|
27 |
431
721 494 |
WASHER |
|
1 |
|
|
28 |
431
721 489 |
BUSH |
|
1 |
|
|
29 |
431
721 493 |
WASHER |
|
1 |
|
|
30 |
811
611 797 |
BRACKET |
|
1 |
|
|
31 |
431 971 848 C |
CLIP |
RHD |
1 |
|
|
32 |
443
721 261 |
SLAVE CYLINDER |
|
|
|
|
|
|
F >>
85-J-900 108 |
|
1 |
|
|
32A |
4A0 721 261 |
SLAVE CYLINDER |
|
|
|
|
|
|
F 85-J-900
109>> |
|
1 |
|
|
32B |
N 010 244 21 |
SCREW,
HEXAGONAL HEAD |
M8X30 |
1 |
|
|
32C |
N 011 533 2 |
WASHER |
A7,4X14,5X1,6 |
1 |
|
|
33 |
443
616 789 |
BLEEDER VALVE |
|
1 |
|
|
34 |
211
611 483 |
DUST CAP |
|
1 |
|
|
35 |
431
721 279 |
BRACKET |
|
|
|
|
|
|
F >>
85-J-900 108 |
|
1 |
|
|
36 |
N 013 300 1 |
SPRING PIN |
6X36 |
|
|
|
|
|
F >>
85-J-900 108 |
|
1 |
|
|
37 |
857
721 453 |
HOSE |
LHD |
1 |
|
|
- |
N 020 281 1 |
HOSE IN COILS
OF 5M |
7X3 |
* |
|
|
|
|
'ORDER UNIT 5' |
RHD |
|
|
|
-37 |
|
SHORTEN TO: |
320MM |
1 |
|
|
38 |
857
721 495 |
GROMMET |
RHD |
1 |
|
|
39 |
|
CLIP |
RHD |
1 |
|
|
40 |
857
616 209 |
RESERVOIR |
RHD |
1 |
|
|
41 |
N 010 205 6 |
SCREW,
HEXAGONAL HEAD |
M5X10 |
2 |
|
|
|
|
|
RHD |
|
|
|
42 |
N 011 523 18 |
WASHER |
A5,3X10X1 |
2 |
|
|
|
|
|
RHD |
|
|
|
43 |
N 011 005 4 |
HEX. NUT |
M5 |
2 |
|
|
|
|
|
RHD |
|
|
|
44 |
N 013 968 1 |
TAPPING SCREW,
FILL. HD. |
ST4,8X13-C |
2 |
|
|
|
|
|
RHD |
|
|
|
45 |
N 011 523 18 |
WASHER |
A5,3X10X1 |
2 |
|
|
|
|
|
RHD |
|
|
|
46 |
N 015 445 2 |
SPEED NUT |
B4,8X16,5X11 |
2 |
|
|
|
|
|
RHD |
|
|
|
47 |
431 721 283 B |
CLIP |
13 |
1 |
|
|
48 |
812
721 231 |
STOP |
RHD |
1 |
|
|
49 |
812
721 429 |
SPRING CLIP |
RHD |
1 |
|
|
50 |
803
721 231 |
BUFFER |
LHD |
1 |
|
|
- |
811 721 231 A |
RUBBER STOP |
RHD |
1 |
|
|
- |
811 721 231 D |
BUFFER |
RHD |
1 |
|
|
- |
N 900 603 01 |
CABLE BINDER |
6,5X175 |
1 |
|
|
- |
859
721 704 |
SUPPORT |
|
1 |
SPORTQUATTRO |
|
- |
811 971 845 B |
CLAMP |
|
1 |
SPORTQUATTRO |
|
|
|
|
|
|
|
