NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

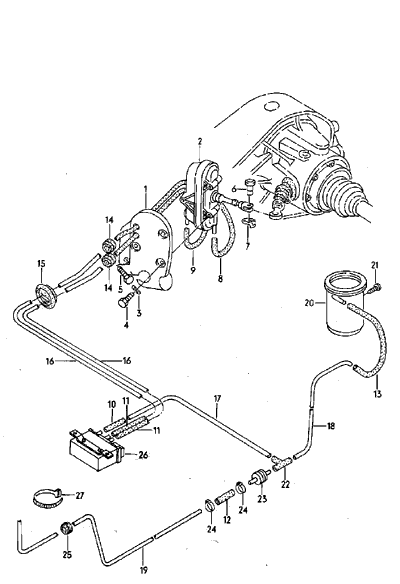

DIFFERENTIAL LOCK, ENGAGEABLE | |||||||
F 85-J-900 051>> | |||||||
1 | 443 711 037 | BRACKET | 1 | ||||
2 | 857 711 995 A | THROTTLE CONTROL ELEMENT | 1 | ||||
3 | N 012 225 3 | SPRING WASHER | B5X11X0,5 | 3 | |||
4 | N 010 296 2 | SCREW, HEXAGONAL HEAD | M5X18 | 3 | |||
5 | N 010 239 11 | SCREW, HEXAGONAL HEAD | M8X18 | 3 | |||
6 | 857 711 993 | PIN | 1 | ||||
7 | N 012 324 3 | LOCK WASHER | 3,2 | 1 | |||
- | N 020 353 5 | HOSE IN COILS OF 5M | 3,5X2 | * | |||
'ORDER UNIT 5' | |||||||
8 | SHORTEN TO: | 410MM | 1 | ||||
9 | SHORTEN TO: | 420MM | 1 | ||||
10 | SHORTEN TO: | 320MM | 1 | ||||
11 | SHORTEN TO: | 280MM | 2 | ||||
12 | SHORTEN TO: | 45MM | 1 | ||||
13 | SHORTEN TO: | 220MM | 1 | ||||
14 | 803 971 873 | GROMMET | 08.des | 2 | |||
15 | 857 201 193 B | GROMMET | 1 | ||||
- | N 020 139 1 | TUBE IN COILS OF 5M | 4X1 | * | |||
'ORDER UNIT 5' | |||||||
16 | SHORTEN TO: | 1000MM | 2 | ||||
17 | SHORTEN TO: | 815MM | 1 | ||||
18 | SHORTEN TO: | 1020MM | 1 | ||||
19 | SHORTEN TO: | 2900MM | 1 | ||||
20 | 049 129 808 A | DAMPER | 1 | ||||
21 | N 013 975 11 | TAPPING SCREW, FILL. HD. | B4,8X19 | 1 | |||
22 | 447 711 758 | T-PIECE | 1 | ||||
23 | 046 905 291 A | CHECK VALVE | 1 | ||||
24 | 311 133 343 A | RETAINING CLIP | 9 | 2 | |||
25 | 893 971 863 C | GROMMET | 31 | 1 | |||
26 | 893 919 173 | ELECTRONIC CONTROL UNIT | 1 | ||||
27 | N 020 902 2 | CABLE BINDER | 6X246 | 1 |
