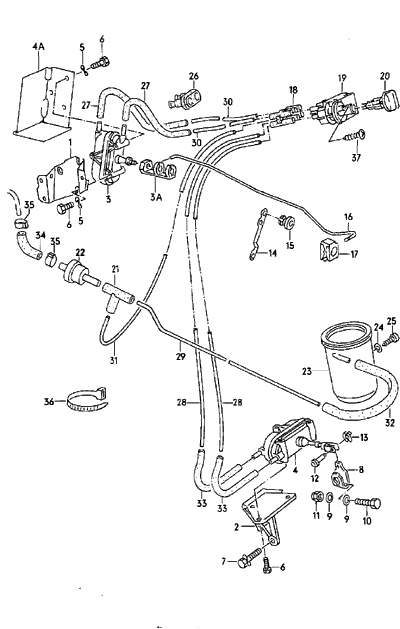

NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|
DIFFERENTIAL
LOCK, ENGAGEABLE |
|
|
|
|
|
|
F 85-F-900
001>> 85-H-902 400 |
|
|
|
|
1 |
857
711 939 |
BRACKET |
FRONT |
1 |
|
|
2 |
857 711 029 A |
BRACKET |
REAR |
1 |
|
|
3 |
857
711 997 |
THROTTLE
CONTROL ELEMENT |
|
1 |
|
|
3A |
857
711 479 |
CONNECTING
PIECE |
|
1 |
|
|
4 |
857 711 995 A |
THROTTLE
CONTROL ELEMENT |
|
1 |
|
|
4A |
443
711 998 |
SHIELD |
|
|
|
|
|
|
F 85-F-900
001>> 85-H-902 400 |
|
1 |
|
|
5 |
N 012 225 3 |
SPRING WASHER |
B5X11X0,5 |
6 |
|
|
6 |
N 010 296 2 |
SCREW,
HEXAGONAL HEAD |
M5X18 |
6 |
|
|
7 |
N 010 340 4 |
SCREW,
HEXAGONAL HEAD |
M8X40 |
2 |
|
|
|
|
ALSO USE: |
N 011 525 13 |
2 |
|
|
- |
N 011 525 13 |
WASHER |
A8,4 |
2 |
|
|
8 |
857
525 033 |
LEVER |
|
1 |
|
|
9 |
N 011 558 11 |
WASHER |
8,4X15X1,6 |
2 |
|
|
10 |
N 010 247 8 |
SCREW,
HEXAGONAL HEAD |
M8X35 |
1 |
|
|
11 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
1 |
|
|
12 |
857
711 993 |
PIN |
|
1 |
|
|
13 |
N 012 324 3 |
LOCK WASHER |
3,2 |
1 |
|
|
14 |
857
711 659 |
PULL ROD GUIDE |
|
1 |
|
|
15 |
857
711 661 |
BUSH |
|
1 |
|
|
16 |
857
711 671 |
HOOK |
|
1 |
|
|
17 |
857
711 561 |
SPRING CLIP |
|
1 |
|
|
18 |
447
711 757 |
ADAPTER |
|
1 |
|
|
19 |
447
919 167 |
VACUUM SWITCH |
|
1 |
|
|
|
08/84-07/87 01C |
SATIN BLACK |
|
1 |
|
|
20 |
447
919 169 |
ROTARY KNOB |
|
1 |
|
|
|
08/84-07/87 01C |
SATIN BLACK |
|
1 |
|
|
21 |
447
711 758 |
T-PIECE |
|
1 |
|
|
22 |
046 905 291 A |
CHECK VALVE |
|
1 |
|
|
23 |
049 129 808 A |
DAMPER |
|
1 |
|
|
24 |
N 011 523 18 |
WASHER |
A5,3X10X1 |
1 |
|
|
25 |
N 013 975 11 |
TAPPING SCREW,
FILL. HD. |
B4,8X19 |
1 |
|
|
26 |
443 525 809 A |
GROMMET |
|
1 |
|
|
- |
N 018 068 2 |
HOSE IN COILS
OF 5M |
3,5X2,25 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
27 |
|
SHORTEN TO: |
250MM |
2 |
|
|
- |
N 020 139 1 |
TUBE IN COILS
OF 5M |
4X1 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
28 |
|
SHORTEN TO: |
3300MM |
2 |
|
|
29 |
|
SHORTEN TO: |
2500MM |
1 |
|
|
30 |
|
SHORTEN TO: |
750MM |
2 |
|
|
31 |
|
SHORTEN TO: |
100MM |
1 |
|
|
- |
N 020 353 5 |
HOSE IN COILS
OF 5M |
3,5X2 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
32 |
|
SHORTEN TO: |
810MM |
1 |
|
|
33 |
|
SHORTEN TO: |
100MM |
2 |
|
|
34 |
|
SHORTEN TO: |
45MM |
1 |
|
|
35 |
311 133 343 A |
RETAINING CLIP |
9 |
1 |
|
|
36 |
N 900 603 01 |
CABLE BINDER |
6,5X175 |
1 |
|
|
- |
N 010 239 11 |
SCREW,
HEXAGONAL HEAD |
M8X18 |
1 |
|
|
37 |
N 013 959 3 |
TAPPING SCREW,
FILL. HD. |
B3,5X16 |
2 |
|
|
|
|
|
|
|
|
