Menu |
|
|
|
|
|
|
|
|
NO |
CODE |
DESCRIPTION |
NOTE |
EA |

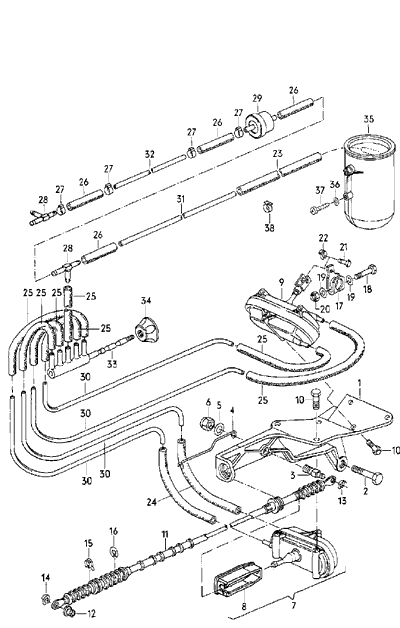

ADDITIONнн |
|
|
|
DIFFERENTIAL
LOCK, ENGAGEABLE |
|
|
|
|
|
|
F 85-B-901
222>> 85-E-901 500* |
|
|
|
|
1 |
857
525 029 |
BRACKET |
|
1 |
|
|
2 |
N 010 340 4 |
SCREW,
HEXAGONAL HEAD |
M8X40 |
2 |
|
|
|
|
ALSO USE: |
N 011 525 13 |
2 |
|
|
- |
N 011 525 13 |
WASHER |
A8,4 |
2 |
|
|
3 |
857
525 031 |
PIN |
|
1 |
|
|
4 |
857
711 517 |
SPRING CLIP |
|
1 |
|
|
- |
431
877 239 |
BRACKET FOR
HOSE |
|
1 |
|
|
5 |
N 011 525 13 |
WASHER |
A8,4 |
1 |
|
|
6 |
N 011 184 9 |
HEX. NUT,
SELF-LOCKING |
M8 |
1 |
|
|
7 |
857
711 995 |
THROTTLE
CONTROL ELEMENT |
|
1 |
|
|
8 |
857
711 999 |
RETAINER |
|
1 |
|
|
9 |
857 711 995 A |
THROTTLE
CONTROL ELEMENT |
|
1 |
|
|
10 |
N 010 296 2 |
SCREW,
HEXAGONAL HEAD |
M5X18 |
6 |
|
|
11 |
857 711 735 B |
BOWDEN CABLE
FOR |
|
|
|
|
|
|
DIFFERENTIAL
LOCK, FRONT |
|
|
|
|
|
|
F 85-B-901
222>> 85-C-902 000 |
|
1 |
QUATTRO |
|
-11 |
857 711 735 C |
BOWDEN CABLE
FOR |
|
|
|
|
|
|
DIFFERENTIAL
LOCK, FRONT |
|
|
|
|
|
|
F 85-D-900
001>> |
|
1 |
QUATTRO |
|
-11 |
859
711 735 |
BOWDEN CABLE
FOR |
|
1 |
SPORTQUATTRO |
|
|
|
DIFFERENTIAL
LOCK, FRONT |
|
|
|
|
12 |
857 711 557 A |
INSULATING BUSH |
|
1 |
|
|
13 |
N 012 326 2 |
LOCK WASHER |
5 |
1 |
|
|
14 |
N 900 649 01 |
LOCK WASHER |
6 |
1 |
|
|
15 |
N 900 703 01 |
LOCK WASHER |
9 |
|
|
|
|
|
F 85-B-901
222>> 85-C-902 000 |
|
1 |
|
|
-15 |
N 900 527 02 |
LOCK WASHER |
8 |
|
|
|
|
|
F 85-D-900
001>> |
|
1 |
|
|
16 |
N 012 439 2 |
LOCK WASHER |
8 |
1 |
|
|
17 |
857
525 033 |
LEVER |
|
1 |
|
|
18 |
N 010 359 4 |
SCREW,
HEXAGONAL HEAD |
M8X38 |
1 |
QUATTRO |
|
-18 |
N 010 247 8 |
SCREW,
HEXAGONAL HEAD |
M8X35 |
1 |
SPORTQUATTRO |
|
19 |
N 011 558 11 |
WASHER |
8,4X15X1,6 |
2 |
|
|
20 |
N 011 184 9 |
HEX. NUT,
SELF-LOCKING |
M8 |
1 |
QUATTRO |
|
-20 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
1 |
SPORTQUATTRO |
|
21 |
857
711 993 |
PIN |
|
1 |
|
|
22 |
N 012 324 3 |
LOCK WASHER |
3,2 |
1 |
|
|
- |
N 020 353 5 |
HOSE IN COILS
OF 5M |
3,5X2 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
23 |
|
SHORTEN TO: |
810MM |
1 |
|
|
24 |
|
SHORTEN TO: |
245MM |
2 |
|
|
25 |
|
SHORTEN TO: |
100MM |
7 |
|
|
26 |
|
SHORTEN TO: |
45MM |
4 |
|
|
27 |
311 133 343 A |
RETAINING CLIP |
9 |
4 |
|
|
28 |
113 201 943 B |
T-PIECE |
04.04.04 |
2 |
|
|
29 |
046 905 291 A |
CHECK VALVE |
|
1 |
|
|
- |
N 020 139 1 |
TUBE IN COILS
OF 5M |
4X1 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
30 |
|
SHORTEN TO: |
3300MM |
4 |
|
|
31 |
|
SHORTEN TO: |
3500MM |
1 |
|
|
32 |
|
SHORTEN TO: |
490MM |
1 |
|
|
-33 |
857
711 981 |
VALVE |
|
|
|
|
|
|
F 85-B-901
222>> 85-C-902 000 |
|
1 |
|
|
33 |
857 711 981 A |
VALVE |
|
|
|
|
|
|
F 85-D-900
001>> 85-E-901 500* |
|
1 |
|
|
34 |
111 941 541 B |
KNOB |
|
|
|
|
|
|
F 85-B-901
222>> 85-C-902 000 |
|
1 |
|
|
|
04/81-07/82 01Z |
DARK BROWN
(BROWN) |
|
|
|
|
-34 |
857 711 504 D |
KNOB |
|
|
|
|
|
|
F 85-D-900
001>> 85-E-901 500* |
|
1 |
|
|
35 |
049 129 808 A |
DAMPER |
|
1 |
|
|
36 |
N 011 523 18 |
WASHER |
A5,3X10X1 |
1 |
|
|
37 |
N 013 975 11 |
TAPPING SCREW,
FILL. HD. |
B4,8X19 |
1 |
|
|
38 |
431
877 239 |
BRACKET FOR
HOSE |
|
1 |
|
|
|
|
|
|
|
|
