NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

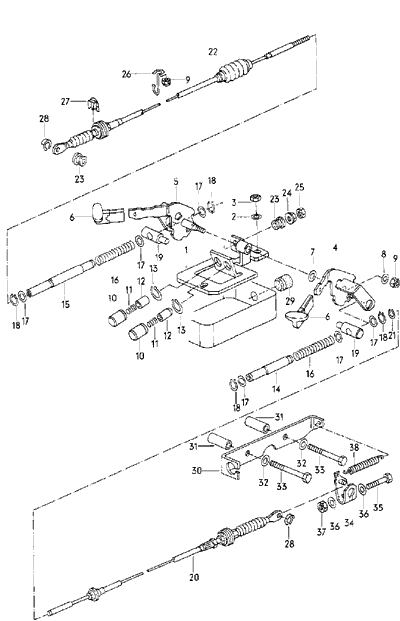

DIFFERENTIAL LOCK, ENGAGEABLE | |||||||
F >> 85-B-901 221 | |||||||
1 | --- --- --- | NO LONGER AVAILABLE | |||||
2 | N 011 525 13 | WASHER | A8,4 | 2 | |||
3 | N 011 008 8 | HEX. NUT | M8 | 2 | |||
4 | --- --- --- | NO LONGER AVAILABLE | |||||
5 | --- --- --- | NO LONGER AVAILABLE | |||||
6 | --- --- --- | NO LONGER AVAILABLE | |||||
7 | 311 199 125 | WASHER | 1 | ||||
8 | N 011 557 2 | WASHER | 6,4X11X1,6 | 1 | |||
9 | N 022 148 1 | HEX. NUT, SELF-LOCKING | M6 | 2 | |||
10 | 857 711 899 A | BUSH | 2 | ||||
11 | 5 311 641 | PRESSURE SPRING | 2 | ||||
12 | 084 311 621 D | BUSH | 2 | ||||
13 | N 012 416 1 | LOCK RING | 16X1 | 2 | |||
14 | 857 711 723 | SLEEVE | LEFT | 1 | |||
15 | --- --- --- | NO LONGER AVAILABLE | |||||
16 | 857 711 753 A | PRESSURE SPRING | 2 | ||||
17 | N 011 560 8 | WASHER | 10,5X18X1,6 | 6 | |||
18 | N 012 438 2 | LOCK WASHER | 9 | 4 | |||
19 | --- --- --- | NO LONGER AVAILABLE | |||||
20 | 857 711 725 A | BOWDEN CABLE | 1 | ||||
FOR DIFFERENTIAL LOCK | REAR | ||||||
21 | N 012 435 2 | LOCK WASHER | 5 | 1 | |||
22 | 857 711 735 A | BOWDEN CABLE | 1 | ||||
FOR DIFFERENTIAL LOCK | FRONT | ||||||
23 | 857 711 557 A | INSULATING BUSH | 2 | ||||
24 | 35 145 750 | SHOULDERED HEX. NUT | M6 | 1 | |||
25 | N 011 006 24 | HEX. NUT | M6 | 1 | |||
26 | --- --- --- | NO LONGER AVAILABLE | |||||
27 | N 900 527 02 | LOCK WASHER | 8 | 1 | |||
28 | N 900 649 01 | LOCK WASHER | 6 | 2 | |||
29 | 211 721 381 | RUBBER STOP | 1 | ||||
30 | 857 525 071 | ABUTMENT | 1 | ||||
31 | --- --- --- | NO LONGER AVAILABLE | |||||
32 | N 011 558 11 | WASHER | 8,4X15X1,6 | 2 | |||
33 | N 010 380 5 | SCREW, HEXAGONAL HEAD | M8X80 | 2 | |||
34 | --- --- --- | NO LONGER AVAILABLE | |||||
35 | N 010 269 5 | SCREW, HEXAGONAL HEAD | M8X38 | 1 | |||
36 | N 011 558 11 | WASHER | 8,4X15X1,6 | 2 | |||
37 | N 011 184 9 | HEX. NUT, SELF-LOCKING | M8 | 1 | |||
38 | 183 711 677 | TENSION SPRING | 1 |
