NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

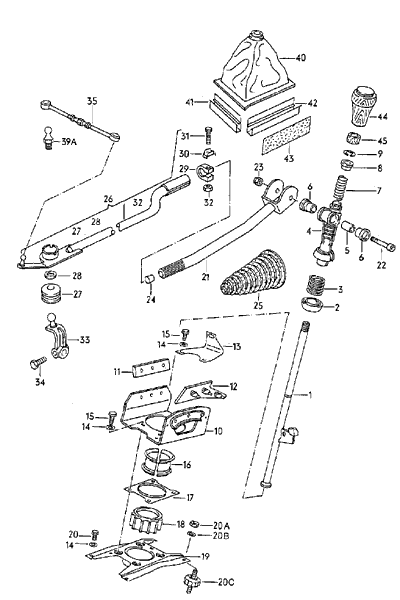

SHIFT MECHANISM | |||||||
1 | 431 711 171 B | GEARSHIFT LEVER | 1 | ||||
2 | 823 711 643 A | BALL SOCKET FOR | 1 | ||||
GEARSHIFT LEVER | |||||||
3 | 431 711 199 A | PRESSURE SPRING | 1 | ||||
4 | 431 711 079 A | SELECTOR LEVER GUIDE | 1 | ||||
5 | 431 711 299 | SPACER BUSH | 1 | ||||
6 | 431 711 223 A | BUSH | 2 | ||||
7 | 431 711 197 | PRESSURE SPRING | |||||
F >> 85-D-902 500 | 1 | ||||||
-7 | 823 711 197 A | PRESSURE SPRING | |||||
F 85-E-900 001>> | 1 | ||||||
8 | 171 711 217 | BUSH | 1 | ||||
9 | N 012 412 1 | LOCK RING | 12X1 | 1 | |||
10 | 853 711 447 | STOP | 1 | ||||
11 | 431 711 133 C | STOP FOR | 1 | ||||
GEARSHIFT ROD, REAR | |||||||
12 | 431 711 133 D | STOP FOR | 1 | ||||
GEARSHIFT ROD, REAR | |||||||
13 | 431 711 489 | BRACKET | |||||
F >> 85-D-902 500 | 1 | ||||||
-13 | 853 711 489 B | BRACKET | |||||
F 85-E-900 001>> | 1 | ||||||
14 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 4 | |||
15 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 4 | |||
16 | 823 711 255 | BEARING FOR SOCKET | 2 | ||||
17 | 857 711 393 | INTERMEDIATE PLATE | |||||
F >> 85-D-902 500 | 1 | ||||||
-17 | 853 711 393 | INTERMEDIATE PLATE | |||||
F 85-E-900 001>> | 1 | ||||||
18 | 431 711 279 | BALL SOCKET | 1 | ||||
19 | 431 711 251 B | HOUSING FOR | |||||
SHIFT MECHANISM | |||||||
F >> 85-D-902 500 | 1 | ||||||
-19 | 853 711 251 A | BALL HOUSING | |||||
F 85-E-900 001>> | 1 | ||||||
20 | N 010 208 5 | SCREW, HEXAGONAL HEAD | M6X8 | ||||
F >> 85-D-902 500 | 3 | ||||||
-20 | N 010 216 12 | SCREW, HEXAGONAL HEAD | M6X18 | ||||
F >> 85-D-902 500 | 1 | ||||||
20A | N 011 006 24 | HEX. NUT | M6 | ||||
F 85-E-900 001>> | 4 | ||||||
20B | N 011 666 15 | WASHER | 6,4X18X1,6 | ||||
F 85-E-900 001>> | 4 | ||||||
20C | 853 711 279 | BONDED RUBBER MOUNTING WITH | X | ||||
STOP SHELL | |||||||
21 | 857 711 265 | SELECTOR SHAFT, TUBULAR | 1 | ||||
22 | N 044 758 2 | BOLT, WITH HEX. SOCKET | M6X48 | 1 | |||
HD. | |||||||
23 | N 022 148 1 | HEX. NUT, SELF-LOCKING | M6 | 1 | |||
24 | 431 711 169 A | PLUG | 1 | ||||
25 | 803 711 167 E | BOOT | 1 | ||||
26 | 857 711 151 B | SELECTOR SHAFT | 1 | ||||
27 | 431 711 221 | BALL SOCKET | 1 | ||||
28 | 431 711 224 A | WASHER | 1 | ||||
29 | 443 711 603 | CLIP | 1 | ||||
30 | 857 711 609 | LOCK PLATE | 1 | ||||
31 | N 010 359 4 | SCREW, HEXAGONAL HEAD | M8X38 | 1 | |||
32 | N 011 008 8 | HEX. NUT | M8 | 1 | |||
33 | 857 711 181 B | GEARSHIFT LEVER | 1 | ||||
34 | 443 711 189 A | SCREW, HEXAGONAL HEAD | M8X14 | 1 | |||
35 | 431 711 429 B | CONNECTING ROD | 1 | ||||
- | 803 711 279 E | BALL SOCKET | 2 | ||||
TO BE USED FOR: | 431 711 429 B | ||||||
39A | 431 711 379 | BALL JOINT | 1 | ||||
40 | 811 711 110 A | GEARSTICK TRIM (LEATHER) | 1 | ||||
07/80-07/91 9UB | BLACK | ||||||
- | 447 711 183 | BUSH | UPPER | 1 | |||
07/80-07/91 01C | SATIN BLACK | ||||||
- | 447 711 184 | BUSH | LOWER | 1 | |||
41 | 857 863 249 | CLAMP | 1 | ||||
42 | 857 863 249 A | CLAMP | 1 | ||||
43 | 533 867 910 A | FELT STRIP | 20X1X880MM | X | |||
(ADHESIVE) | |||||||
'ORDER UNIT 25' | |||||||
44 | 855 711 141 A | GEARSTICK KNOB (LEATHER) | |||||
F >> 85-D-902 500 | 1-5,R | 1 | |||||
07/80-07/83 01Z | DARK BROWN (BROWN) | ||||||
-44 | 443 711 141 E | GEARSTICK KNOB (LEATHER) | |||||
F 85-E-900 001>> 85-E-900 087 | 1-5,R | 1 | |||||
08/83-09/83 1BX | BLACK | ||||||
-44 | 443 711 141 Q | GEARSTICK KNOB (LEATHER) | |||||
F 85-E-900 088>> | 1-5,R | 1 | |||||
10/83-07/91 1BX | BLACK | ||||||
45 | 191 711 236 | HOSE | 1 | ||||
- | G 052 142 A2 | POLY LUBRICANT | 400G | X |
