NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

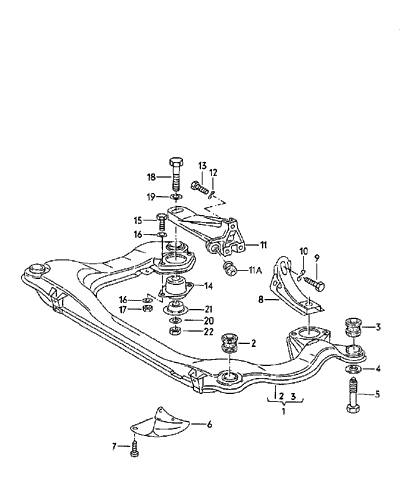

SUB-FRAME | |||||||
TRANSMISSION SECURING PARTS | |||||||
1 | 895 199 313 | SUB-FRAME | 1 | QUATTRO | |||
ALSO USE: | >>85-F-901800 | ||||||
811 411 327 B | 2 | ||||||
857 411 335 B | 2 | ||||||
N 101 016 01 | 4 | ||||||
- | 811 411 327 B | RUBBER MOUNTING | INNER | 2 | |||
- | 857 411 335 B | CLIP | 2 | ||||
- | N 101 016 03 | SCREW, HEXAGONAL HEAD | M8X18 | 4 | |||
-1 | 859 199 313 | SUB-FRAME | 1 | SPORTQUATTRO | |||
2 | 857 199 415 B | RUBBER MOUNTING | 2 | QUATTRO | |||
-2 | 859 199 415 | RUBBER MOUNTING | 2 | SPORTQUATTRO | |||
3 | 857 199 419 B | RUBBER MOUNTING | 2 | QUATTRO | |||
-3 | 859 199 419 | RUBBER MOUNTING | 2 | SPORTQUATTRO | |||
4 | 823 199 347 | WASHER | 8 | QUATTRO | |||
-4 | 859 199 347 | WASHER | 4 | SPORTQUATTRO | |||
- | 859 199 359 | SPACER | 4 | SPORTQUATTRO | |||
- | 859 199 359 A | SPACER | 1 | SPORTQUATTRO | |||
5 | N 905 569 02 | SCREW, HEXAGONAL HEAD | M10X75 | 8 | |||
-5 | 859 199 441 | SCREW, HEXAGONAL HEAD | M12X1,5X95 | 4 | SPORTQUATTRO | ||
6 | 857 399 300 | SHIELD | 1 | ||||
7 | N 013 884 5 | TAPPING SCREW,HEX.HD. | 4,8X13 | 3 | |||
8 | 431 399 113 G | SUPPORT | LEFT | 1 | QUATTRO | ||
-8 | 859 399 113 | SUPPORT | LEFT | 1 | SPORTQUATTRO | ||
9 | N 010 275 4 | SCREW, HEXAGONAL HEAD | M10X35 | 3 | |||
10 | N 012 230 7 | SPRING WASHER | B10X21X1 | 3 | |||
11 | 857 399 114 | SUPPORT | RIGHT | 1 | QUATTRO | ||
-11 | 859 399 114 | SUPPORT | RIGHT | 1 | SPORTQUATTRO | ||
11A | 443 253 149 B | RUBBER BUSH | 1 | ||||
12 | N 012 242 2 | SPRING WASHER | B10X18 | 3 | |||
13 | N 014 721 2 | BOLT, WITH HEX. SOCKET | M10X25 | 3 | |||
HD. | |||||||
14 | 431 399 151 D | BONDED RUBBER MOUNTING | 2 | QUATTRO | |||
-14 | 857 599 431 | BONDED RUBBER MOUNTING | 2 | SPORTQUATTRO | |||
15 | N 010 240 16 | SCREW, HEXAGONAL HEAD | M8X20 | 4 | |||
16 | N 011 525 13 | WASHER | A8,4 | 8 | |||
17 | N 022 146 4 | HEX. NUT, SELF-LOCKING | VM8 | 4 | |||
18 | N 010 472 6 | SCREW, HEXAGONAL HEAD | M10X85 | 2 | |||
-18 | N 101 312 02 | SCREW, HEXAGONAL HEAD | M10X105X32 | 1 | SPORTQUATTRO | ||
- | 859 199 359 A | SPACER | 2 | SPORTQUATTRO | |||
19 | N 903 152 02 | WASHER | 10,5X34X4 | 2 | |||
21 | 431 399 291 | STOP | 2 | ||||
22 | N 900 876 02 | HEX. NUT, SELF-LOCKING | M10 | 1 | |||
-22 | N 022 167 1 | HEX. NUT, SELF-LOCKING | MM10 | 1 | SPORTQUATTRO |
