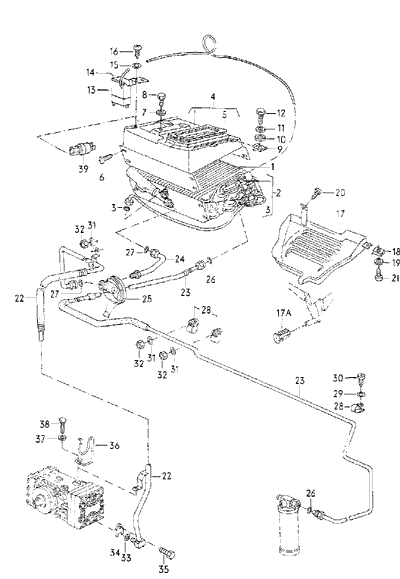

	NO	CODE	DESCRIPTION	NOTE	EA	ADDITIONÝÝ
			EVAPORATOR			AIR CONDIT.
			THERMOSTAT
	1	855 260 102 B	EVAPORATOR		1
	2	843 820 679	EXPANSION VALVE		1
	3	803 260 749 D	SEALING WASHER		1
	-	857 820 619	RETAINING BRACKET		1
	-	N 903 561 01	SPEED NUT	M4X15X16,5	1
	-	N 020 620 1	CLIP	D1-13X15	1
	-	N 010 261 3	SCREW, HEXAGONAL HEAD	M4X15	1
	-	N 011 693 1	WASHER	4,1X12X0,8	1
	4	321 820 121 B	EVAPORATOR HOUSING		1
	5	867 819 020 B	SOUND ABSORBER	190X130X5	1
	6	N 013 970 5	TAPPING SCREW, FILL. HD.	B4,8X9,5	6
	7	N 011 666 15	WASHER	6,4X18X1,6	2
	8	--- --- ---	NO LONGER AVAILABLE
	9	N 015 458 1	SPEED NUT	B4,8X19X16	2
	10	321 820 129 A	GASKET		4
	11	N 011 665 3	WASHER	5,3X15X1,6	2
	12	N 013 885 1	TAPPING SCREW,HEX.HD.	B4,8X25	2
	13	811 820 295 A	THERMOSTAT		1
	14	811 820 297	BRACKET FOR THERMOSTAT		1
	15	N 011 523 18	WASHER	A5,3X10X1	1
	16	N 013 960 5	TAPPING SCREW, FILL. HD.	B3,9X9,5	1
	17	321 820 163 B	DRIP TRAY
			F >> 85-F-900 052		1
	-17	811 260 161	DRIP TRAY
			F 85-F-900 053>>		1
	(17A)	811 260 155	WATER DRAIN VALVE
			F 85-F-900 053>>		1
	18	N 015 458 1	SPEED NUT	B4,8X19X16	1
	19	N 011 523 18	WASHER	A5,3X10X1	1
	20	N 013 968 1	TAPPING SCREW, FILL. HD.	ST4,8X13-C	1
	21	N 013 975 11	TAPPING SCREW, FILL. HD.	B4,8X19
			F >> 85-F-900 052		1
	-21	N 013 968 1	TAPPING SCREW, FILL. HD.	ST4,8X13-C
			F 85-F-900 053>>		1
	22	857 260 707	REFRIGERANT HOSE	FRONT
			(REFRIGERANT COMPRESSOR >
			EVAPORATOR)
			F >> 85-E-901 500		1
	-22	857 260 707 A	REFRIGERANT HOSE	FRONT	1	"CH" : S704
			(REFRIGERANT COMPRESSOR >
			EVAPORATOR)
	-22	857 260 707 A	REFRIGERANT HOSE
			(REFRIGERANT COMPRESSOR >	FRONT
			EVAPORATOR)
			F 85-F-900 001>> 85-H-902 400*		1
	-22	857 260 707 B	REFRIGERANT HOSE	FRONT
			(REFRIGERANT COMPRESSOR >
			EVAPORATOR)
			F 85-J-900 001>>*		1
	-22	857 260 707 C	REFRIGERANT HOSE	REAR
			(REFRIGERANT COMPRESSOR >
			EVAPORATOR)
			F 85-J-900 001>> 85-K-020 000*		1
	-22	857 260 707 E	REFRIGERANT HOSE	REAR
			(REFRIGERANT COMPRESSOR >
			EVAPORATOR)
			F 85-L-000 001>>		1
	23	857 260 709	REFRIGERANT HOSE
			(FLUID CONTAINER > EXPANSION
			VALVE)
			F >> 85-D-902 133		1
	-23	857 260 709 A	REFRIGERANT HOSE
			(FLUID CONTAINER > EXPANSION
			VALVE)
			F 85-E-900 001>> 85-H-902 400*		1
	-23	857 260 709 A	REFRIGERANT HOSE		1	"CH" : S704
			(FLUID CONTAINER > EXPANSION
			VALVE)
	-23	857 260 709 B	REFRIGERANT HOSE
			(FLUID CONTAINER > EXPANSION
			VALVE)
			F 85-J-900 001>>*		1
	24	857 260 740	REFRIGERANT PIPE		1
			(REFRIGERANT COMPRESSOR >
			EVAPORATOR)
	25	855 820 119	GROMMET
			F >> 85-F-900 052		1
	-25	811 820 119 A	GROMMET
			F 85-F-900 053>>		1
	26	803 260 749	SEALING WASHER		4
	27	803 260 749 B	SEALING WASHER		X
	28	N 020 620 1	CLIP	D1-13X15	3
	29	N 011 523 18	WASHER	A5,3X10X1	1
	30	N 013 975 11	TAPPING SCREW, FILL. HD.	B4,8X19	1
	31	N 011 524 23	WASHER	A6,4X12,5X1,6	3
	32	N 011 006 24	HEX. NUT	M6	3
	33	171 820 749	SEALING WASHER		X
	34	171 820 829	CLAMPING PLATE		1
	35	171 820 830	SCREW, HEXAGONAL HEAD		1
	36	35 260 183	BRACKET		1
	37	N 900 722 01	WASHER	10X21X5	1
	38	55 260 900	SCREW, HEXAGONAL HEAD		1
	39	443 959 483 C	LOW PRESSURE SWITCH
			F 85-E-900 941>>*		1
	-	857 260 759	BRACKET
			F 85-J-900 001>>		1
	-	N 023 002 6	HEX. NUT, SELF-LOCKING	AM6	1
	-	N 020 690 1	CLIP	B20X28GI	1
	-	811 260 193 B	PROTECTIVE PLATE		1
