NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

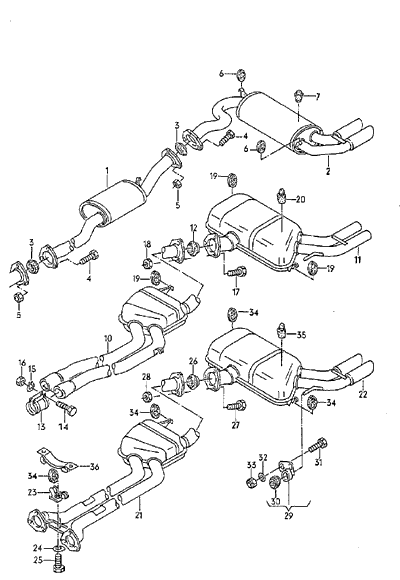

MIDDLE EXHAUST SILENCER | WX,WR,GV,MB | ||||||
EXHAUST SILENCER, REAR | |||||||
1 | 857 253 409 | MIDDLE EXHAUST SILENCER | 1 | ||||
-1 | 857 253 409 A | MIDDLE EXHAUST SILENCER | 1 | ||||
FOR VEHICLES WITH CATALYST | |||||||
2 | 857 253 609 C | EXHAUST SILENCER, REAR | 1 | ||||
3 | 857 253 137 | SEALING WASHER | 2 | ||||
4 | N 010 345 5 | SCREW, HEXAGONAL HEAD | M8X45 | 6 | |||
5 | 59 129 601 | HEX. NUT, SELF-LOCKING | M8 | 6 | |||
6 | 8A0 253 147 A | RETAINING RING | 2 | ||||
7 | 893 253 149 C | RUBBER STOP | 2 | ||||
MIDDLE EXHAUST SILENCER | KW | ||||||
EXHAUST SILENCER, REAR | |||||||
10 | 859 253 409 | MIDDLE EXHAUST SILENCER | 1 | ||||
11 | 859 253 609 | EXHAUST SILENCER, REAR | 1 | ||||
12 | 859 253 137 | SEALING WASHER | 1 | ||||
13 | 893 253 139 B | DUAL CLIP | 60MM | 2 | |||
14 | N 010 254 14 | SCREW, HEXAGONAL HEAD | M10X25 | 4 | |||
15 | N 012 011 3 | LOCK RING | A10 | 4 | |||
16 | N 011 010 11 | HEX. NUT | M10 | 4 | |||
17 | N 010 345 5 | SCREW, HEXAGONAL HEAD | M8X45 | 2 | |||
18 | 59 129 601 | HEX. NUT, SELF-LOCKING | M8 | 2 | |||
19 | 8A0 253 147 A | RETAINING RING | 1 | ||||
20 | 443 253 149 A | RUBBER STOP | 2 | ||||
MIDDLE EXHAUST SILENCER | RR | ||||||
EXHAUST SILENCER, REAR | |||||||
21 | 857 253 409 G | MIDDLE EXHAUST SILENCER | 1 | ||||
22 | 857 253 609 E | EXHAUST SILENCER, REAR | 1 | ||||
23 | 857 253 309 A | BRACKET | 1 | ||||
24 | N 904 772 01 | WASHER | B8,4X33X2 | 1 | |||
25 | N 010 244 21 | SCREW, HEXAGONAL HEAD | M8X30 | 1 | |||
26 | 857 253 137 B | SEALING WASHER | 65 | 1 | |||
27 | N 010 353 3 | SCREW, HEXAGONAL HEAD | M8X42 | 3 | |||
28 | 59 129 601 | HEX. NUT, SELF-LOCKING | M8 | 3 | |||
29 | 857 253 307 | BRACKET | 1 | ||||
30 | 443 253 149 B | RUBBER BUSH | 1 | ||||
31 | N 010 244 21 | SCREW, HEXAGONAL HEAD | M8X30 | 2 | |||
32 | N 011 525 13 | WASHER | A8,4 | 2 | |||
33 | N 022 146 4 | HEX. NUT, SELF-LOCKING | VM8 | 2 | |||
34 | 893 253 147 D | RETAINING RING | 4 | ||||
35 | 893 253 149 C | RUBBER STOP | 1 | ||||
36 | SEE ILLUSTRATION: | 62 |
