NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

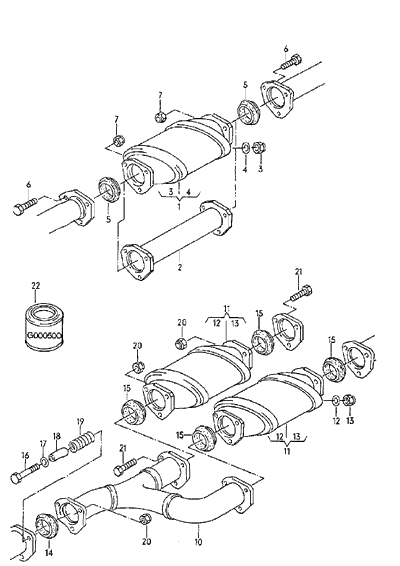

CATALYST | WX | ||||||
EXHAUST PIPE | |||||||
1 | ~857 131 701 AX | CATALYST | 1 | ||||
ALSO USE: | N 013 830 2 | 1 | |||||
4A0 131 737 A | 1 | ||||||
2 | 857 253 301 | EXHAUST PIPE | CENTER | 1 | |||
FOR VEHICLES ONLY AS | |||||||
REPLACEMENT FOR THE CATALYST | |||||||
3 | 4A0 131 737 A | CAP NUT | M14X1,5 | 1 | |||
4 | N 013 830 2 | SEALING WASHER | A8X12 | 1 | |||
5 | 857 253 137 | SEALING WASHER | 2 | ||||
6 | N 010 345 5 | SCREW, HEXAGONAL HEAD | M8X45 | 6 | |||
7 | 59 129 601 | HEX. NUT, SELF-LOCKING | M8 | 6 | |||
CATALYST | RR | ||||||
CONNECTING PIPE | |||||||
10 | 857 253 301 A | CONNECTING PIPE | 1 | ||||
11 | ~857 131 701 AX | CATALYST | 2 | ||||
12 | N 013 830 2 | SEALING WASHER | A8X12 | 2 | |||
13 | 4A0 131 737 A | CAP NUT | M14X1,5 | 2 | |||
14 | 857 253 137 A | SEALING WASHER | 65 | 1 | |||
15 | 447 253 137 | SEALING WASHER | 60/60 | 4 | |||
16 | N 010 380 5 | SCREW, HEXAGONAL HEAD | M8X80 | 3 | |||
17 | N 900 577 01 | WASHER | 8,4X21X2 | 3 | |||
18 | 811 253 205 B | SPACER TUBE | 50,5MM | 3 | |||
19 | 843 253 353 | PRESSURE SPRING | 3 | ||||
20 | 59 129 601 | HEX. NUT, SELF-LOCKING | M8 | 12 | |||
21 | N 010 353 3 | SCREW, HEXAGONAL HEAD | M8X42 | 12 | |||
22 | G 052 112 A3 | HOT-BOLT-PASTE | 170G | X |
