NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

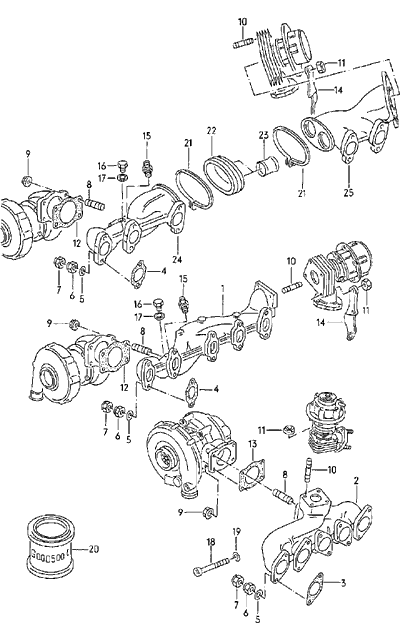

EXHAUST MANIFOLD | WR,GV,WX,MB | ||||||
KW,RR | |||||||
1 | 035 129 591 BC | EXHAUST MANIFOLD | 1 | WR,GV,WX,MB | |||
2 | 035 129 591 CB | EXHAUST MANIFOLD | 1 | KW | |||
-2 | 034 129 587 M | EXHAUST MANIFOLD | 1 | RR | |||
3 | 027 129 589 A | GASKET | 5 | ||||
-3 | 034 129 589 A | GASKET | 1 | RR | |||
4 | 028 129 589 B | GASKET | 5 | WR,GV,WX,MB | |||
5 | N 900 955 01 | WASHER | 8,4X15X4 | 10 | WR,GV,WX,MB | ||
KW | |||||||
5 | N 900 955 01 | WASHER | 8,4X15X4 | 16 | RR | ||
6 | N 902 002 01 | SHOULDERED HEX. NUT, | AM8 | 10 | WR,GV,WX,MB | ||
SELF-LOCKING | KW | ||||||
6 | N 902 002 01 | SHOULDERED HEX. NUT, | AM8 | 16 | RR | ||
SELF-LOCKING | |||||||
7 | N 012 608 1 | SPEED NUT | M8 | 10 | WR,GV,WX,MB, | ||
KW | |||||||
8 | N 900 717 02 | STUD | M10FOX25 | 4 | |||
9 | 35 145 749 | SHOULDERED HEX. NUT | M10 | 4 | |||
10 | N 101 693 01 | STUD | M8X50 | 2 | WR,GV,WX,MB | ||
KW | |||||||
-10 | N 029 313 1 | STUD | M8X58 | 2 | WR,GV,WX,MB, | ||
KW | |||||||
-10 | N 101 693 01 | STUD | M8X50 | 4 | RR | ||
11 | N 902 264 03 | SHOULDERED HEX. NUT, | M8 | 4 | |||
SELF-LOCKING | |||||||
12 | *035 129 589 D | GASKET | 1 | WR,GV,WX,MB, | |||
RR | |||||||
13 | 035 129 589 H | GASKET | 1 | KW | |||
14 | 35 145 880 | SUPPORT | 1 | WR,GV,WX,MB | |||
15 | 035 198 133 A | PRESSURE PIPE WITH SECURING | |||||
PARTS | |||||||
F >> 85-C-900 296 | 1 | WR,GV,WX | |||||
-15 | N 901 421 01 | ADAPTER | L10M-B | ||||
F 85-C-900 297>> | 1 | WR,GV,WX | |||||
16 | N 016 153 1 | PLUG | AM12X1,5 | 1 | WX | ||
17 | N 013 832 6 | SEALING WASHER | 18X22X1,5 | 1 | WX | ||
18 | N 014 711 2 | BOLT, WITH HEX. SOCKET | M8X65 | 2 | KW | ||
HD. | |||||||
19 | N 011 525 13 | WASHER | A8,4 | 2 | KW | ||
20 | G 052 112 A3 | HOT-BOLT-PASTE | 170G | X |
