NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

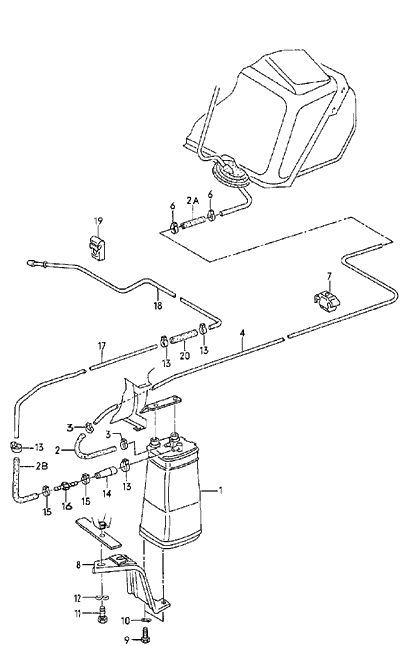

ACTIVATED CARBON CONTAINER | |||||||
F 85-L-000 001>>* | RR | ||||||
1 | 857 201 801 | ACTIVATED CARBON CONTAINER | 1 | ||||
- | N 900 996 01 | HOSE IN COILS OF 5M | 5,5X3 | * | |||
'ORDER UNIT 5' | |||||||
2 | SHORTEN TO: | 220MM | 1 | ||||
2A | SHORTEN TO: | 80MM | 1 | ||||
2B | SHORTEN TO: | 220MM | 1 | ||||
2C | SHORTEN TO: | 90MM | 1 | ||||
3 | N 102 582 01 | CLIP | AL12-22 | 2 | |||
4 | 857 201 991 B | BREATHER TUBE | 1 | ||||
6 | N 024 528 1 | CLIP | LC8-12 | 2 | |||
7 | 443 616 797 | BRACKET | 7 | ||||
8 | 857 201 809 | BRACKET | LOWER | 1 | |||
9 | N 010 212 26 | SCREW, HEXAGONAL HEAD | M6X12 | 2 | |||
10 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
11 | N 010 239 11 | SCREW, HEXAGONAL HEAD | M8X18 | 2 | |||
12 | N 012 229 3 | SPRING WASHER | A8X15X0,5 | 2 | |||
13 | N 102 582 01 | CLIP | AL12-22 | 1 | |||
14 | 026 133 370 C | HOSE | 1 | ||||
16 | 035 133 382 E | ADAPTER | 6 | 1 | |||
17 | 857 201 861 E | BREATHER TUBE | 1 | ||||
18 | 857 201 861 D | BREATHER TUBE | 1 | ||||
19 | 321 971 898 A | CLIP | 6 | 4 | |||
-19 | N 101 393 01 | CLIP | LC10-16 | 2 | |||
