NO |
CODE |
DESCRIPTION |
NOTE |
EA |

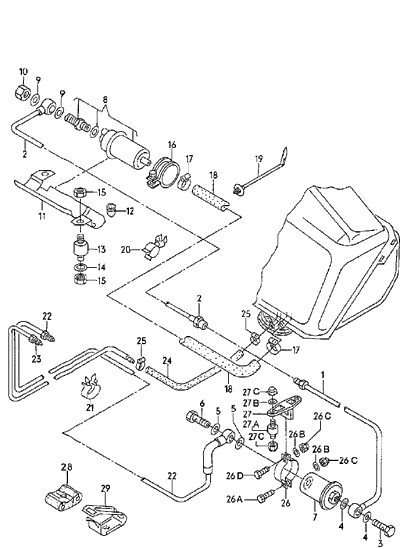

ADDITIONнн |
|
|
|
ACCUMULATOR |
|
|
|
|
|
|
FUEL FILTER |
|
|
|
|
|
|
FUEL PUMP |
|
|
|
|
|
|
FUEL PIPE |
|
|
|
|
|
|
F 85-L-000
001>>* |
|
|
RR |
|
1 |
857 201 218 D |
FUEL LINE |
|
1 |
|
|
2 |
857 201 218 C |
FUEL LINE |
|
1 |
|
|
3 |
48
133 505 |
BANTO BOLT WITH
FILTER |
M12X1,5 |
1 |
|
|
4 |
N 013 812 8 |
SEALING WASHER |
A12X15,5 |
2 |
|
|
5 |
N 013 814 9 |
SEALING WASHER |
14X18X1,5 |
2 |
|
|
6 |
N 903 580 03 |
BANTO BOLT |
10-2/M14X1,5 |
1 |
|
|
7 |
893
133 511 |
FUEL FILTER |
|
1 |
|
|
|
|
ALSO USE: |
810 133 525 A |
1 |
|
|
|
|
|
N 013 814 2 |
1 |
|
|
- |
810 133 525 A |
ADAPTER |
M14X1,5/14X1,5 |
1 |
|
|
- |
N 013 814 2 |
SEALING WASHER |
A14X18 |
1 |
|
|
8 |
893 906 091 E |
FUEL PUMP |
|
1 |
|
|
- |
893
906 093 |
CHECK VALVE |
|
1 |
|
|
9 |
N 013 812 8 |
SEALING WASHER |
A12X15,5 |
2 |
|
|
10 |
N 011 069 1 |
CAP NUT |
M12X1,5 |
1 |
|
|
11 |
431 906 133 C |
BRACKET |
|
1 |
|
|
12 |
N 020 031 1 |
PLUG |
B7X2X12,5 |
1 |
|
|
13 |
431
906 095 |
BONDED RUBBER
MOUNTING |
|
2 |
|
|
14 |
N 011 547 6 |
WASHER |
A6,5X14X1,6 |
2 |
|
|
15 |
N 011 006 24 |
HEX. NUT |
M6 |
4 |
|
|
16 |
N 900 961 01 |
CLIP |
H1-61X15 |
1 |
|
|
17 |
N 905 618 01 |
CLIP |
AL16-28 |
2 |
|
|
18 |
857 201 233 C |
HOSE |
|
1 |
|
|
19 |
N 902 055 01 |
CABLE BINDER |
4,5X140 |
2 |
|
|
20 |
857 201 687 C |
HOLDER |
|
1 |
|
|
21 |
N 902 055 01 |
CABLE BINDER |
4,5X140 |
1 |
|
|
22 |
857 201 545 C |
FUEL LINE |
FEED |
1 |
|
|
23 |
857 201 547 C |
FUEL LINE |
RETURN |
1 |
|
|
- |
N 020 281 1 |
HOSE IN COILS
OF 5M |
7X3 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
24 |
|
SHORTEN TO: |
280MM |
1 |
|
|
25 |
N 102 582 01 |
CLIP |
AL12-22 |
1 |
|
|
26 |
893
201 679 |
BRACKET FOR
FUEL FILTER |
|
2 |
|
|
26A |
N 010 217 10 |
SCREW,
HEXAGONAL HEAD |
M6X20 |
1 |
|
|
26B |
N 011 666 15 |
WASHER |
6,4X18X1,6 |
3 |
|
|
26C |
N 011 183 11 |
HEX. NUT,
SELF-LOCKING |
M6 |
2 |
|
|
26D |
N 010 215 27 |
SCREW,
HEXAGONAL HEAD |
M6X15 |
1 |
|
|
27 |
857
201 683 |
BRACKET |
|
1 |
|
|
27A |
803 121 275 A |
BONDED RUBBER
MOUNTING |
|
2 |
|
|
27B |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
2 |
|
|
27C |
N 011 183 11 |
HEX. NUT,
SELF-LOCKING |
M6 |
4 |
|
|
28 |
321 201 245 A |
PROTECTIVE
COVER |
|
12 |
|
|
29 |
321 201 449 A |
CLAMP |
|
12 |
|
|
|
|
|
|
|
|
