NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

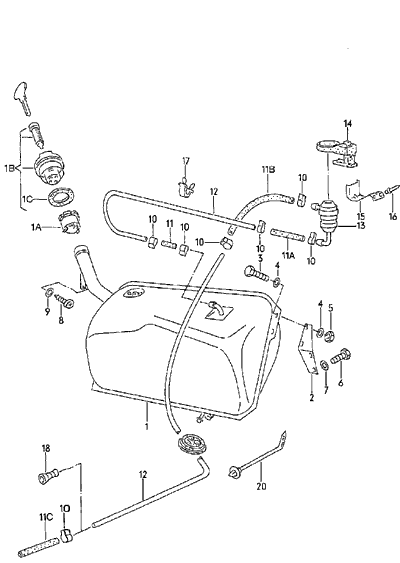

FUEL TANK |
|
|
|
|
|
|
F 85-L-000
001>> |
|
|
RR |
|
1 |
857 201 075 Q |
FUEL TANK |
|
1 |
|
|
1A |
893 201 115 B |
INSERT FOR USE
WITH LEADFREE |
|
1 |
|
|
|
|
FUEL |
|
|
|
|
1B |
533 201 551 F |
CAP, LOCKABLE,
NOT FOR ONE KEY |
|
1 |
|
|
|
|
LOCKING SYSTEM
FOR |
|
|
|
|
|
|
FUEL TANK |
|
|
|
|
|
08/89-07/91 SBV |
(SELF-SERVICE
PACK) |
|
|
|
|
(1B) |
191 201 551 D |
CAP, LOCKABLE
FOR SINGLE |
|
1 |
|
|
|
|
KEY SYSTEM WITH
SEPARATE |
|
|
|
|
|
|
LOCK CYLINDER
BUT WITHOUT |
|
|
|
|
|
|
TUMBLERS,
SPRINGS AND |
|
|
|
|
|
|
KEYS FOR |
|
|
|
|
|
|
FUEL TANK |
|
|
|
|
|
|
SYSTEM 'A'
PROFILE AH |
|
|
|
|
|
|
1-1000,2001-3000,4001-6000, |
|
|
|
|
|
|
7101-8154 |
|
|
|
|
1C |
191
201 557 |
SEALING WASHER |
|
1 |
|
|
2 |
857 201 503 A |
BRACKET |
LEFT |
1 |
|
|
-2 |
857 201 504 A |
BRACKET |
RIGHT |
1 |
|
|
3 |
N 010 240 16 |
SCREW,
HEXAGONAL HEAD |
M8X20 |
4 |
|
|
4 |
N 011 670 16 |
WASHER |
8,4X24X2 |
8 |
|
|
5 |
N 022 146 4 |
HEX. NUT,
SELF-LOCKING |
VM8 |
4 |
|
|
6 |
N 010 238 20 |
SCREW,
HEXAGONAL HEAD |
M8X15 |
4 |
|
|
7 |
N 011 670 16 |
WASHER |
8,4X24X2 |
4 |
|
|
8 |
N 013 966 26 |
TAPPING SCREW,
FILL. HD. |
4,2X13STC |
2 |
|
|
9 |
N 011 673 3 |
WASHER |
B5,5X18X1,6 |
2 |
|
|
10 |
N 024 528 1 |
CLIP |
LC8-12 |
1 |
|
|
- |
N 900 996 01 |
HOSE IN COILS
OF 5M |
5,5X3 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
11 |
|
SHORTEN TO: |
50MM |
1 |
|
|
11A |
|
SHORTEN TO: |
50MM |
1 |
|
|
11B |
|
SHORTEN TO: |
120MM |
1 |
|
|
11C |
|
SHORTEN TO: |
80MM |
1 |
|
|
- |
N 020 150 5 |
TUBE IN COILS
OF 5M |
6X1 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
12 |
|
SHORTEN TO: |
900MM |
1 |
|
|
13 |
893
201 753 |
GRAVITY VALVE |
|
1 |
|
|
14 |
811
201 768 |
RING |
LHD |
1 |
|
|
15 |
811 201 189 A |
BRACKET FOR
GRAVITY VALVE |
|
1 |
|
|
16 |
N 905 763 01 |
POP-RIVET |
A4X9X8X1,2 |
X |
|
|
17 |
867
971 848 |
CLIP |
6,5 |
1 |
|
|
18 |
321
201 890 |
END PIECE |
|
1 |
|
|
19 |
857 201 193 B |
GROMMET |
|
1 |
|
|
20 |
N 902 055 01 |
CABLE BINDER |
4,5X140 |
2 |
|
|
|
|
|
|
|
|
