NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||
DIFFERENTIAL | CENTER | ||||||

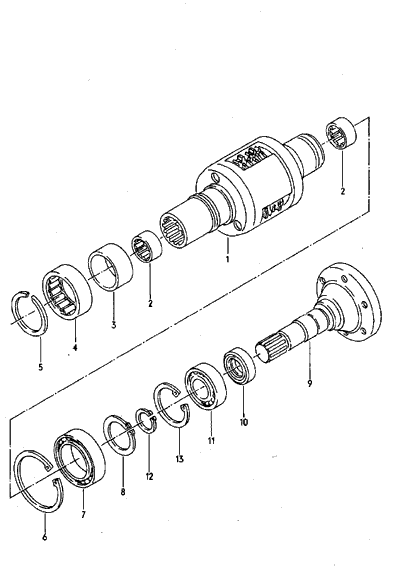

TORSEN DIFFERENTIAL | |||||||
FOR 5 SPEED MANUAL TRANSMISS. | |||||||
G 01 08 7>> | APX,ASX,AVC, | ||||||
AUH,AUK | |||||||
1 | 016 409 751 A | TORSEN DIFFERENTIAL | 1 | ||||
2 | 16 409 767 | NEEDLE BEARING - | 1 | ||||
3 | 16 311 329 | BEARING RING | 55X60X25 | 1 | |||
4 | 16 311 328 | NEEDLE SLEEVE | 60X68X20 | 1 | |||
5 | N 903 054 01 | LOCK RING | A55X2 | 1 | |||
6 | N 012 350 1 | LOCK RING | 80X2,5 | 1 | |||
7 | 016 409 775 A | BALL BEARING | 50X80X16 | 1 | |||
8 | N 012 371 1 | LOCK RING | 50X2 | 1 | |||
9 | 016 409 809 C | FLANGE SHAFT | 1 | ||||
10 | 014 409 400 AA | SEAL | 1 | ||||
11 | 16 311 235 | BALL BEARING | 1 | ||||
12 | N 012 375 1 | LOCK RING | 30X1,5 | 1 | |||
13 | N 012 319 1 | LOCK RING | 62X2 | 1 | |||
- | 016 301 315 H | GEAR CARRIER | |||||
G >> 21 08 9* | 1 | APX,ASX,AVC, | |||||
AUH,AUK | |||||||
- | 016 301 315 J | GEAR CARRIER | |||||
G 22 08 9>>* | 1 | AVC | |||||
- | 010 325 381 A | SEAL | 90X4,2 | ||||
G 22 08 9>>* | 1 | AVC | |||||
