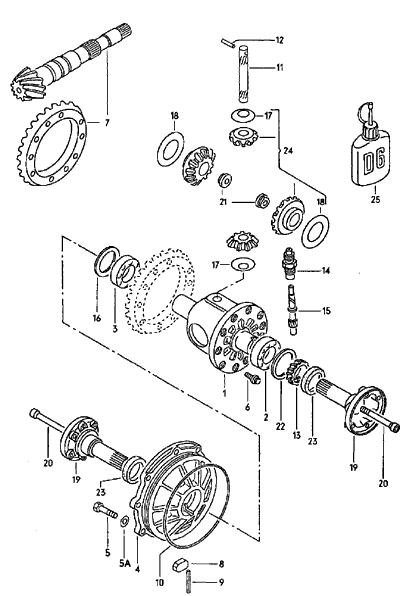

NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|
DIFFERENTIAL |
FRONT |
|
UG,4H,5H,7Z, |
|
|
|
|
|
|
APX,ASX,AAE, |
|
|
|
|
|
|
AUH,AUK,AVC |
|
1 |
088 409 121 B |
DIFFERENTIAL
HOUSING |
|
1 |
UG,4H,5H,7Z, |
|
|
|
|
|
|
APX,ASX,AVC, |
|
|
|
|
|
|
AUH,AUK |
|
-1 |
016 409 121 C |
DIFFERENTIAL
HOUSING |
|
1 |
AAE |
|
2 |
16
409 123 |
TAPER ROLLER
BEARING |
41,2X73,4X19,5 |
1 |
|
|
3 |
113 517 185 C |
TAPER ROLLER
BEARING |
41X68X17,6 |
1 |
|
|
4 |
088 409 131 C |
COVER FOR FINAL
DRIVE |
|
1 |
|
|
5 |
N 010 247 8 |
SCREW,
HEXAGONAL HEAD |
M8X35 |
9 |
|
|
5A |
N 011 670 16 |
WASHER |
8,4X24X2 |
9 |
|
|
6 |
088 409 135 A |
SCREW,
HEXAGONAL HEAD |
M10X1X18 |
10 |
|
|
7 |
016 409 143 D |
PINION AND
CROWN WHEEL |
1,464583333 |
|
|
|
|
|
G >> 31
07 7 |
|
1 |
UG,4H,5H,7Z |
|
-7 |
016 409 143 AS |
PINION AND
CROWN WHEEL |
sep.35 |
|
|
|
|
|
G 01 08
7>> |
|
1 |
APX,ASX,AXC, |
|
|
|
|
|
|
AUH,AUK |
|
-7 |
016 409 143 AM |
PINION AND
CROWN WHEEL |
1,297222222 |
1 |
AAE |
|
8 |
084 301 143 A |
MAGNET |
|
1 |
|
|
9 |
N 013 344 2 |
SPRING PIN |
4X30 |
1 |
|
|
10 |
113 301 185 A |
O-RING |
|
1 |
|
|
11 |
5
409 177 |
SHAFT -
DIFFERENTIAL PINION |
|
1 |
|
|
12 |
N 100 726 01 |
PIN |
5X36 |
1 |
|
|
13 |
16
409 187 |
DRIVE
GEAR-SPEEDOMETER |
|
1 |
|
|
14 |
014 409 193 A |
GUIDE FOR
PINION |
|
1 |
|
|
15 |
88
409 197 |
PINION-SPEEDOMETER |
|
1 |
|
|
16 |
113 517 201 A |
ADJUSTING
WASHER |
0,15 |
X |
|
|
-16 |
113 517 202 A |
ADJUSTING
WASHER |
0,2 |
X |
|
|
-16 |
113 517 203 A |
ADJUSTING
WASHER |
0,3 |
X |
|
|
-16 |
113 517 204 A |
ADJUSTING
WASHER |
0,4 |
X |
|
|
-16 |
113 517 205 A |
ADJUSTING
WASHER |
0,5 |
X |
|
|
-16 |
113 517 206 A |
ADJUSTING
WASHER |
0,6 |
X |
|
|
-16 |
02A 409 210 A |
ADJUSTING
WASHER |
0,7 |
X |
|
|
-16 |
02A 409 210 C |
ADJUSTING
WASHER |
0,8 |
X |
|
|
-16 |
02A 409 210 E |
ADJUSTING
WASHER |
0,9 |
X |
|
|
-16 |
02A 409 210 G |
ADJUSTING
WASHER |
1 |
X |
|
|
-16 |
02A 409 210 L |
ADJUSTING
WASHER |
1,2 |
X |
|
|
17 |
91
517 189 |
THRUST WASHER |
|
2 |
|
|
18 |
11
519 215 |
THRUST WASHER |
0,5 |
2 |
|
|
-18 |
88
409 249 |
THRUST WASHER |
0,6 |
2 |
|
|
-18 |
088 409 249 A |
THRUST WASHER |
0,7 |
2 |
|
|
-18 |
088 409 249 B |
THRUST WASHER |
0,8 |
2 |
|
|
-18 |
088 409 249 C |
THRUST WASHER |
0,9 |
2 |
|
|
-18 |
088 409 249 D |
THRUST WASHER |
1 |
2 |
|
|
19 |
16
409 355 |
FLANGE SHAFT |
108 |
2 |
UG,4H,5H,7Z, |
|
|
|
|
|
|
APX,ASX,AVC, |
|
|
|
|
|
|
AUH,AUK |
|
-19 |
016 409 355 B |
FLANGE SHAFT |
108 |
2 |
AAE |
|
20 |
88
409 359 |
SCREW |
|
2 |
|
|
21 |
87
409 373 |
FLANGE SHAFT
NUT |
|
2 |
|
|
22 |
5
409 385 |
WASHER |
0,15 |
X |
|
|
-22 |
005 409 385 A |
WASHER |
0,2 |
X |
|
|
-22 |
005 409 385 B |
WASHER |
0,25 |
X |
|
|
-22 |
005 409 385 C |
WASHER |
0,5 |
X |
|
|
-22 |
005 409 385 D |
WASHER |
0,8 |
X |
|
|
-22 |
005 409 385 E |
WASHER |
1 |
X |
|
|
-22 |
005 409 385 F |
WASHER |
1,5 |
X |
|
|
23 |
016 409 399 B |
OIL SEAL |
45X60X8 |
1 |
UG,4H,5H,7Z, |
|
|
|
|
|
|
APX,ASX,AVC, |
|
|
|
|
|
|
AUH,AUK |
|
-23 |
016 409 399 A |
SEALING WASHER |
|
1 |
AAE |
|
24 |
90
598 081 |
1 SET OF
DIFFERENTIAL PINIONS |
|
1 |
UG,4H,5H,7Z, |
|
|
|
|
|
|
APX,ASX,AVC, |
|
|
|
|
|
|
AUH,AUK |
|
-24 |
859
498 081 |
1 SET OF
DIFFERENTIAL PINIONS |
|
1 |
AAE |
|
25 |
D 000 600 A2 |
LIQUID SEALANT |
18ML |
X |
|
|
|
|
|
|
|
|
