NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

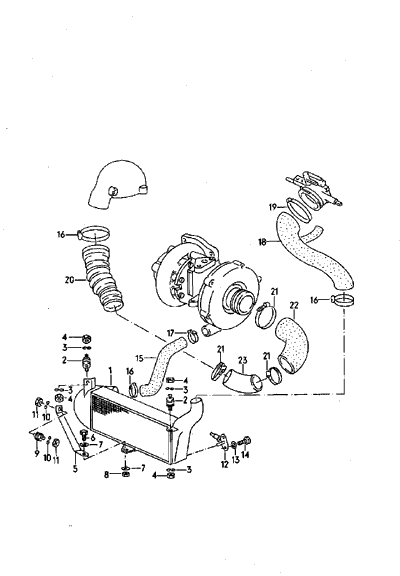

CHARGE AIR COOLER | WR,GV,WX,MB | ||||||
HOSE | |||||||
-1 | 034 145 805 D | CHARGE AIR COOLER | 1 | MB | |||
- | 857 145 836 | AIR DUCT | 1 | MB | |||
- | 857 145 836 A | AIR DUCT | UPPER | 1 | MB | ||
1 | 35 145 805 | CHARGE AIR COOLER | 1 | WR,GV,WX | |||
2 | 431 121 273 B | BONDED RUBBER MOUNTING | 2 | ||||
3 | N 012 241 11 | SPRING WASHER | B8X15X0,8 | 4 | |||
4 | N 011 008 18 | HEX. NUT | M8 | 4 | |||
5 | 857 145 813 | SUPPORT | 1 | WR,GV,WX | |||
-5 | 857 145 813 A | SUPPORT | 1 | MB | |||
6 | N 010 287 3 | SCREW, HEXAGONAL HEAD | M6X16 | 1 | |||
7 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 2 | |||
8 | N 011 006 24 | HEX. NUT | M6 | 1 | |||
9 | 803 121 275 A | BONDED RUBBER MOUNTING | 1 | ||||
10 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
11 | N 011 006 24 | HEX. NUT | M6 | 2 | |||
12 | 034 905 379 B | TEMPERATURE SENSOR | 1 | MB | |||
ALSO USE: | 443 906 232 | 1 | |||||
AS REQUIRED USE: | 000 979 133 A | 1 | |||||
000 979 133 AB | 1 | ||||||
- | 443 906 232 | FLAT CONTACT HOUSING | 2 PIN | 1 | MB | ||
FOR CONTACT: | N 903 352 03 | X | |||||
N 903 353 03 | X | ||||||
- | 000 979 133 A | 1 SET OF SINGLE WIRES EACH | 1 | 1 | MB | ||
WITH 2 CONTACTS, | GOLD PLATED | ||||||
IN BAG OF 5 | |||||||
'ORDER UNIT 5' | |||||||
FLAT CONTACT | 2,8 | ||||||
- | 000 979 133 AB | 1 SET OF SINGLE WIRES | 1 | 1 | MB | ||
(HIGH TEMPERATURE RESISTANT) | |||||||
EACH WITH 2 CONTACTS, | GOLD PLATED | ||||||
IN BAG OF 5 | |||||||
'ORDER UNIT 5' | |||||||
FLAT CONTACT | 2,8 | ||||||
13 | N 011 557 2 | WASHER | 6,4X11X1,6 | 2 | MB | ||
14 | N 014 702 10 | BOLT, WITH HEX. SOCKET | M6X15 | 2 | MB | ||
HD. | |||||||
-15 | 034 145 746 E | HOSE | 1 | MB | |||
15 | 035 145 746 C | HOSE | 1 | WR,GV,WX | |||
16 | N 024 522 3 | CLIP | LA60-80 | 3 | |||
17 | N 024 504 4 | CLIP | LC40-60 | 1 | |||
-18 | 034 145 746 C | HOSE | 1 | MB | |||
18 | 035 145 746 B | HOSE | 1 | WR,GV,WX | |||
19 | N 024 518 3 | CLIP | AL70-90 | 1 | |||
-20 | 034 145 747 A | HOSE | 1 | MB | |||
20 | 035 145 747 C | HOSE | 1 | WR,GV,WX | |||
21 | N 024 505 4 | CLIP | LC50-70 | 1 | |||
22 | 035 145 747 H | HOSE | 1 | ||||
23 | 035 145 849 C | CONNECTING PIPE | 1 |
