NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

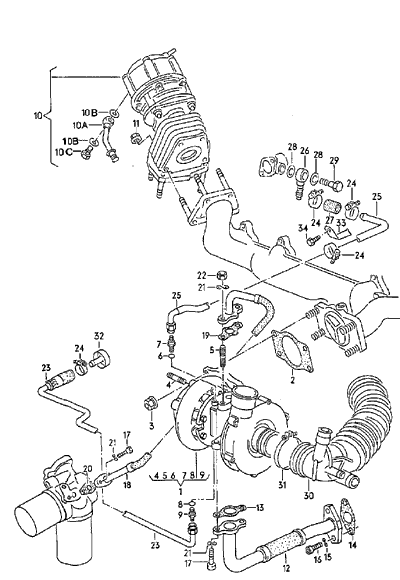

TURBOCHARGER |
|
|
RR |
|
|
|
WASTEGATE |
|
|
|
|
1 |
034 145 703 A |
TURBOCHARGER |
|
1 |
|
|
|
|
ALSO USE: |
N 902 258 01 |
4 |
|
|
|
|
|
N 044 504 2 |
2 |
|
|
|
|
|
N 013 814 9 |
1 |
|
|
|
|
|
N 020 702 2 |
1 |
|
|
|
|
|
N 013 812 8 |
1 |
|
|
|
|
|
N 020 704 3 |
1 |
|
|
2 |
035 129 589 D |
GASKET |
|
1 |
|
|
3 |
35
145 749 |
SHOULDERED HEX.
NUT |
M10 |
4 |
|
|
4 |
N 902 258 01 |
STUD |
M10X33X20 |
4 |
|
|
5 |
N 044 504 2 |
STUD |
M 6X18 |
2 |
|
|
6 |
N 013 814 9 |
SEALING WASHER |
14X18X1,5 |
1 |
|
|
7 |
N 020 702 2 |
ADAPTER |
ALL10 |
1 |
|
|
8 |
N 013 812 8 |
SEALING WASHER |
A12X15,5 |
1 |
|
|
9 |
N 020 704 3 |
ADAPTER |
ALL8 |
1 |
|
|
10 |
034 145 705 B |
WASTEGATE |
|
1 |
|
|
- |
035 145 797 B |
DIAPHRAGM |
|
1 |
|
|
10A |
N 902 546 01 |
ADAPTER |
LL10 |
1 |
|
|
10B |
N 013 814 9 |
SEALING WASHER |
14X18X1,5 |
2 |
|
|
10C |
N 903 580 03 |
BANTO BOLT |
10-2/M14X1,5 |
1 |
|
|
11 |
N 902 264 03 |
SHOULDERED HEX.
NUT, |
M8 |
4 |
|
|
|
|
SELF-LOCKING |
|
|
|
|
12 |
034 145 735 B |
OIL PIPE |
RETURN |
1 |
|
|
13 |
035 145 757 D |
GASKET |
|
1 |
|
|
14 |
*035 145 757 C |
GASKET |
|
1 |
|
|
15 |
N 012 241 11 |
SPRING WASHER |
B8X15X0,8 |
2 |
|
|
16 |
N 014 779 1 |
BOLT, WITH HEX.
SOCKET |
M8X20 |
2 |
|
|
|
|
HD. |
|
|
|
|
17 |
N 014 703 5 |
BOLT, WITH HEX.
SOCKET |
M6X18 |
X |
|
|
|
|
HD. |
|
|
|
|
18 |
34
145 771 |
OIL PIPE |
FEED |
1 |
|
|
19 |
035 145 773 D |
GASKET |
|
1 |
|
|
20 |
035 145 773 D |
GASKET |
|
1 |
|
|
21 |
N 012 226 5 |
SPRING WASHER |
B6 |
X |
|
|
22 |
N 022 148 1 |
HEX. NUT,
SELF-LOCKING |
M6 |
2 |
|
|
23 |
034 121 497 A |
WATER PIPE |
FEED |
1 |
|
|
24 |
N 102 582 01 |
CLIP |
AL12-22 |
X |
|
|
25 |
34
121 498 |
WATER PIPE |
RETURN |
1 |
|
|
26 |
N 904 048 01 |
ADAPTER |
LL10 |
1 |
|
|
- |
N 020 262 1 |
HOSE IN COILS
OF 5M |
10X3,5 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
27 |
|
SHORTEN TO: |
130MM |
1 |
|
|
28 |
N 013 814 9 |
SEALING WASHER |
14X18X1,5 |
2 |
|
|
29 |
N 903 580 03 |
BANTO BOLT |
10-2/M14X1,5 |
1 |
|
|
30 |
034 133 357 Q |
HOSE |
|
1 |
|
|
31 |
N 024 522 3 |
CLIP |
LA60-80 |
1 |
|
|
32 |
035 103 111 B |
UNION |
|
1 |
|
|
33 |
034 121 521 A |
BRACKET |
|
1 |
|
|
34 |
N 010 238 20 |
SCREW,
HEXAGONAL HEAD |
M8X15 |
1 |
|
|
|
|
|
|
|
|
