NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

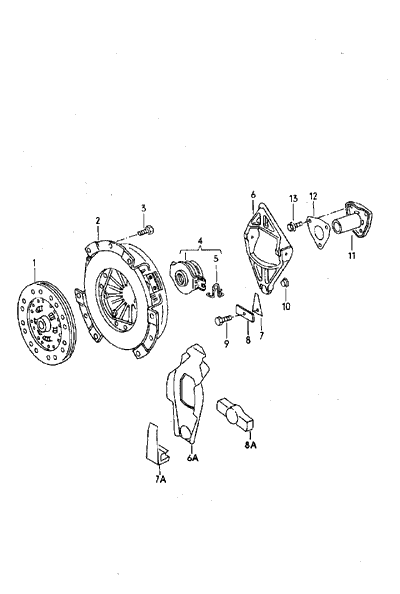

CLUTCH | |||||||
1 | >035 141 033 G | CLUTCH PLATE | 240MM | 1 | WR,GV | ||
F >> 85-J-900 336* | WX | ||||||
-1 | ~035 141 033 GX | CLUTCH PLATE | 240MM | 1 | WR,GV | ||
F >> 85-J-900 336* | 1 | WX | |||||
-1 | >035 141 032 K | CLUTCH PLATE | 240MM | 1 | KW | ||
-1 | >035 141 033 H | CLUTCH PLATE | 240MM | 1 | MB,RR | ||
F 85-J-900 337>>* | 1 | WX | |||||
-1 | ~035 141 033 HX | CLUTCH PLATE | 240MM | 1 | MB,RR | ||
F 85-J-900 337>>* | 1 | WX | |||||
2 | >035 141 117 K | CLUTCH PRESSURE PLATE | 240MM | 1 | WR,GV | ||
F >> 85-J-900 336* | 1 | WX | |||||
-2 | ~035 141 117 KX | CLUTCH PRESSURE PLATE | 240MM | 1 | WR,GV | ||
F >> 85-J-900 336* | 1 | WX | |||||
-2 | 035 141 117 M | CLUTCH PRESSURE PLATE | 240MM | 1 | KW | ||
-2 | >035 141 118 | CLUTCH PRESSURE PLATE | 240MM | 1 | MB,RR | ||
F 85-J-900 337>>* | 1 | WX | |||||
-2 | ~035 141 118 X | CLUTCH PRESSURE PLATE | 240MM | 1 | MB,RR | ||
F 85-J-900 337>>* | 1 | WX | |||||
3 | N 014 739 1 | BOLT, WITH HEX. SOCKET | M8X16 | 6 | |||
HD. | |||||||
4 | 088 141 165 B | RELEASE BEARING | 1 | WR,GV,KW | |||
-4 | 01E 141 165 B | RELEASE BEARING | 1 | MB,RR | |||
5 | 113 141 177 C | RETAINING SPRING | LEFT | 1 | WR,GV,KW | ||
-5 | 113 141 178 C | RETAINING SPRING | RIGHT | 1 | WR,GV,KW | ||
6 | 16 141 719 | CLUTCH OPERATING LEVER | 1 | WR,GV,KW | |||
6A | 016 141 719 A | CLUTCH OPERATING LEVER | 1 | MB,RR | |||
7 | 88 141 721 | SPRING | 1 | ||||
7A | --- --- --- . | DISCONTINUED / REPLACEMENT: | 88 141 721 | 1 | MB | ||
88 141 737 | 1 | ||||||
N 040 203 3 | 1 | ||||||
8 | 88 141 737 | RETAINING PLATE | 1 | ||||
8A | 16 141 751 | INTERMEDIATE PIECE | 1 | MB,RR | |||
(KUPPLUNGSHEBEL) | |||||||
9 | N 040 203 3 | SCREW, HEXAGONAL HEAD | M7X15 | 1 | |||
10 | 16 141 319 | BALL CAP | 1 | WR,GV,KW | |||
11 | 16 141 181 | SLEEVE | STEEL | 1 | |||
12 | 113 141 176 | WASHER | 1 | ||||
13 | N 040 203 3 | SCREW, HEXAGONAL HEAD | M7X15 | 3 |
