NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

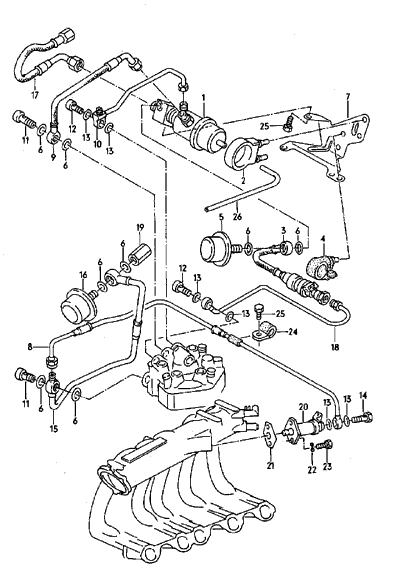

PRESSURE REGULATOR | MB | ||||||
FUEL PIPE | |||||||
1 | 034 133 534 L | PRESSURE REGULATOR | 1 | ||||
2 | 034 133 459 B | SUPPORT | 1 | ||||
3 | 034 906 267 B | VALVE | 1 | ||||
4 | 35 906 273 | BUSH | 1 | ||||
5 | 035 133 533 A | PRESSURE DAMPER | 1 | ||||
6 | N 013 812 8 | SEALING WASHER | A12X15,5 | 8 | |||
7 | 034 906 285 D | BRACKET | 1 | ||||
8 | 034 133 660 Q | FUEL LINE | 1 | ||||
9 | 034 133 673 M | FUEL PIPE | RETURN | 1 | |||
10 | 034 133 673 N | CONNECTING PIPE | RETURN | 1 | |||
11 | 35 133 691 | BANTO BOLT | 2 | ||||
12 | 035 133 691 B | UNION BANTO BOLT WITH HEX. | M8X17 | 2 | |||
SOCKET HD. | |||||||
13 | N 013 807 6 | SEALING WASHER | A8X11,5 | 6 | |||
14 | N 901 836 03 | BANTO BOLT | LL3-5 | X | |||
15 | 034 133 715 J | FUEL LINE | FEED | 1 | |||
16 | 857 133 533 | PRESSURE DAMPER | 1 | ||||
17 | 034 133 717 N | FUEL LINE | RETURN | 1 | |||
18 | 034 133 747 E | FUEL PIPE | 1 | ||||
19 | 035 133 769 B | UNION | 1 | ||||
20 | 035 906 171 A | COLD START VALVE | 1 | ||||
21 | 50 906 179 | GASKET | 1 | ||||
22 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
23 | N 014 702 10 | BOLT, WITH HEX. SOCKET | M6X15 | 2 | |||
HD. | |||||||
24 | N 020 609 3 | CLIP | D1-8X15 | 1 | |||
25 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 2 | |||
- | N 020 353 5 | HOSE IN COILS OF 5M | 3,5X2 | * | |||
'ORDER UNIT 5' | |||||||
26 | SHORTEN TO: | 220MM | 1 |
