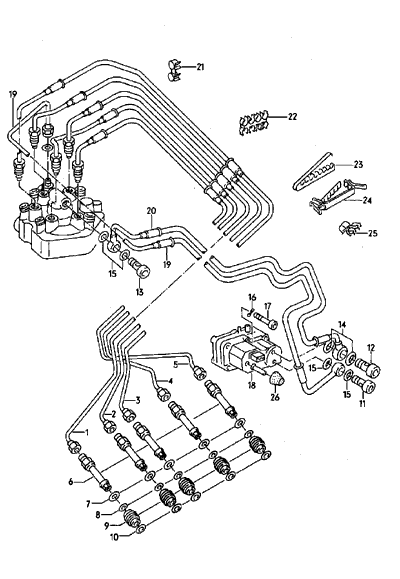

NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||
INJECTOR | MB | ||||||
FUEL PIPE | |||||||
WARM-UP VALVE | |||||||
1 | 034 133 315 C | FUEL PIPE | CYLINDER 1 | 1 | |||
2 | 034 133 317 Q | FUEL PIPE | CYLINDER 2 | 1 | |||
3 | 034 133 319 Q | FUEL PIPE | CYLINDER 3 | 1 | |||
4 | 034 133 321 C | FUEL PIPE | CYLINDER 4 | 1 | |||
5 | 034 133 323 Q | FUEL PIPE | CYLINDER 5 | 1 | |||
6 | 035 133 551 F | INJECTOR | M10X1 | 5 | |||
7 | 034 133 557 E | O-RING | 6X5,2 | 5 | |||
8 | 035 133 557 A | SEALING WASHER | 17X20X1,5 | 5 | |||
9 | 034 133 555 A | INSERT FOR INJECTOR | UPPER | 5 | |||
-9 | 35 133 554 | INSERT FOR INJECTOR | LOWER | 5 | |||
10 | 35 133 557 | SEALING WASHER | 16,5X19,5X1,5 | 5 | |||
11 | N 901 836 03 | BANTO BOLT | LL3-5 | 1 | |||
12 | N 021 075 5 | BANTO BOLT | 03.jun | 1 | |||
13 | 035 133 691 B | UNION BANTO BOLT WITH HEX. | M8X17 | 2 | |||
SOCKET HD. | |||||||
14 | N 013 811 5 | SEALING WASHER | A10X13,5 | 2 | |||
15 | N 013 807 6 | SEALING WASHER | A8X11,5 | 6 | |||
16 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
17 | N 044 703 3 | BOLT, WITH HEX. SOCKET | M6X45 | 2 | |||
HD. | |||||||
18 | 034 133 403 A | WARM-UP VALVE | 1 | ||||
19 | 034 133 655 E | FUEL PIPE | FEED | 1 | |||
20 | 034 133 657 E | FUEL PIPE | RETURN | 1 | |||
21 | 027 133 689 F | BRACKET FOR HOSE | 2 POINT | 2 | |||
22 | 35 133 689 | BRACKET | 8-PIN | 1 | |||
23 | 035 133 689 B | BRACKET FOR FUEL LINE | 1 | ||||
24 | 034 133 806 D | BRACKET FOR FUEL LINE | 1 | ||||
-25 | 443 957 818 C | CABLE BINDER | 7X273-8 | X | |||
26 | 63 133 415 | PROTECTIVE CAP | 1 |
