NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

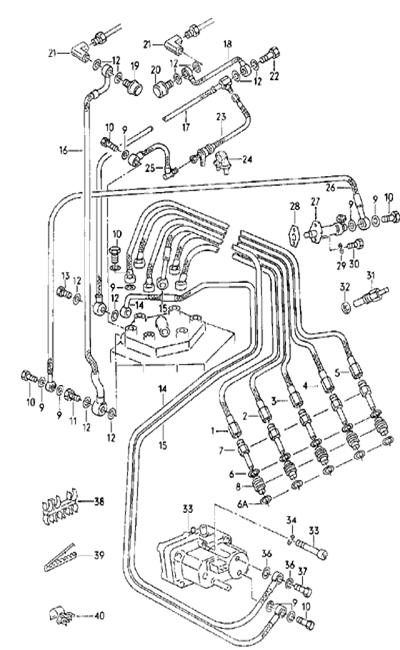

COLD START VALVE, INJECTOR | WX | ||||||
WITH FUEL PIPES | |||||||
WARM-UP VALVE | |||||||
1 | 035 133 315 G | FUEL PIPE | CYLINDER 1 | 1 | |||
2 | 035 133 317 G | FUEL PIPE | CYLINDER 2 | 1 | |||
3 | 035 133 319 G | FUEL PIPE | CYLINDER 3 | 1 | |||
4 | 035 133 321 G | FUEL PIPE | CYLINDER 4 | 1 | |||
5 | 035 133 323 G | FUEL PIPE | CYLINDER 5 | 1 | |||
6 | 034 133 557 E | O-RING | 6X5,2 | 5 | |||
6A | N 013 844 3 | SEALING WASHER | A16X20 | 5 | |||
7 | 049 133 551 A | INJECTOR | 5 | ||||
11 | 63 133 555 | INSERT FOR INJECTOR | 5 | ||||
-8 | 063 133 555 A | INSERT FOR INJECTOR | M22X1,5 | 5 | |||
9 | N 013 807 6 | SEALING WASHER | A8X11,5 | 20 | |||
10 | N 901 836 03 | BANTO BOLT | LL3-5 | 10 | |||
11 | 35 133 505 | BANTO BOLT WITH FILTER | X | ||||
-11 | 49 133 245 | BANTO BOLT | 1 | ||||
12 | N 013 812 8 | SEALING WASHER | A12X15,5 | 6 | |||
13 | 48 133 505 | BANTO BOLT WITH FILTER | M12X1,5 | 1 | |||
14 | 035 133 655 H | FUEL LINE | 1 | ||||
15 | 035 133 657 H | FUEL PIPE | RETURN | 1 | |||
16 | 035 133 715 N | FUEL PIPE | FEED | 1 | |||
17 | 035 133 717 H | FUEL PIPE | RETURN | 1 | |||
-17 | 035 133 717 L | FUEL PIPE | RETURN | 1 | |||
18 | 035 133 717 Q | FUEL PIPE | 1 | ||||
19 | 49 133 533 | DAMPER | 1 | ||||
20 | 035 133 533 A | PRESSURE DAMPER | 1 | ||||
21 | 035 133 769 B | UNION | 1 | ||||
22 | N 901 836 03 | BANTO BOLT | LL3-5 | 1 | |||
23 | 035 906 267 D | VALVE | 1 | ||||
24 | 35 906 273 | BUSH | 1 | ||||
25 | 035 133 747 E | FUEL PIPE | 1 | ||||
26 | 035 133 660 G | FUEL PIPE | 1 | ||||
27 | 035 906 171 A | COLD START VALVE | 1 | ||||
28 | 50 906 179 | GASKET | 1 | ||||
29 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
30 | N 014 703 5 | BOLT, WITH HEX. SOCKET | M6X18 | 2 | |||
HD. | |||||||
31 | 043 906 163 A | THERMO TIME SWITCH | 35C M14X1,5 | 1 | |||
32 | N 013 806 4 | SEALING WASHER | A10X14 | 1 | |||
33 | 035 133 403 D | WARM-UP VALVE | 1 | ||||
34 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
35 | N 044 703 3 | BOLT, WITH HEX. SOCKET | M6X45 | 2 | |||
HD. | |||||||
36 | N 013 811 5 | SEALING WASHER | A10X13,5 | 2 | |||
37 | N 021 075 5 | BANTO BOLT | 03.jun | 1 | |||
38 | 035 133 689 A | BRACKET FOR FUEL LINE | 1 | ||||
39 | 035 133 689 B | BRACKET FOR FUEL LINE | 1 | ||||
-40 | 443 957 818 C | CABLE BINDER | 7X273-8 | X |
