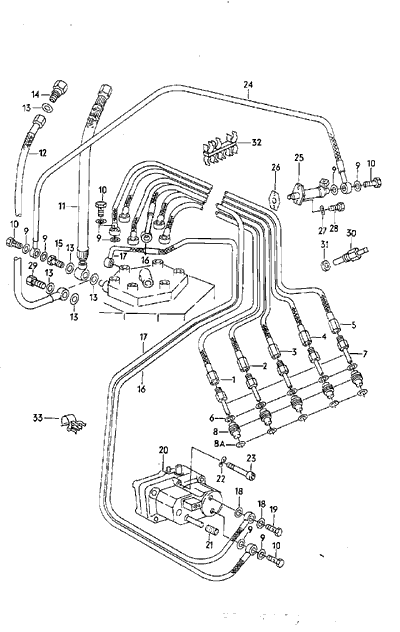

NO CODE DESCRIPTION NOTE EA ADDITIONнн
    COLD START VALVE, INJECTOR     WR,GV
    WITH FUEL PIPES
    WARM-UP VALVE
1 035 133 315 C FUEL PIPE
    F >> 85-D-900 728 CYLINDER 1 1
-1 035 133 315 G FUEL PIPE
    F 85-D-900 729>> CYLINDER 1 1
2 035 133 317 C FUEL PIPE
    F >> 85-D-900 728 CYLINDER 2 1
-2 035 133 317 G FUEL PIPE
    F 85-D-900 729>> CYLINDER 2 1
3 035 133 319 C FUEL PIPE
    F >> 85-D-900 728 CYLINDER 3 1
-3 035 133 319 G FUEL PIPE
    F 85-D-900 729>> CYLINDER 3 1
4 035 133 321 C FUEL PIPE
    F >> 85-D-900 728 CYLINDER 4 1
-4 035 133 321 G FUEL PIPE
    F 85-D-900 729>> CYLINDER 4 1
5 035 133 323 C FUEL PIPE
    F >> 85-D-900 728 CYLINDER 5 1
-5 035 133 323 G FUEL PIPE
    F 85-D-900 729>> CYLINDER 5 1
6 034 133 557 E O-RING 6X5,2 5
7 049 133 551 A INJECTOR   5
8 63 133 555 INSERT FOR INJECTOR
    F >> 85-B-900 158 M24X1,5 5
-8 063 133 555 A INSERT FOR INJECTOR
    F 85-B-900 159>> M22X1,5 5
8A N 013 844 3 SEALING WASHER A16X20 5
9 N 013 807 6 SEALING WASHER A8X11,5 20
10 N 901 836 03 BANTO BOLT LL3-5 10
11 035 133 715 E FUEL PIPE
    F >> 85-D-900 728 FEED 1
-11 035 133 715 N FUEL PIPE
    F 85-D-900 729>> FEED 1
12 035 133 717 J FUEL PIPE RETURN 1
13 N 013 812 8 SEALING WASHER A12X15,5 6
14 035 133 545 A HOUSING   1
15 49 133 245 BANTO BOLT   1
16 035 133 655 B FUEL LINE
    F >> 85-D-900 728   1
-16 035 133 655 H FUEL LINE
    F 85-D-900 729>>   1
17 035 133 657 B FUEL PIPE
    F >> 85-D-900 728 RETURN 1
-17 035 133 657 H FUEL PIPE
    F 85-D-900 729>> RETURN 1
18 N 013 811 5 SEALING WASHER A10X13,5 2
19 N 021 075 5 BANTO BOLT 03.jun 1
20 035 133 403 C WARM-UP VALVE   1
21 63 133 415 PROTECTIVE CAP   1
22 N 012 226 5 SPRING WASHER B6 2
23 N 044 703 3 BOLT, WITH HEX. SOCKET M6X45 2
    HD.
-23 N 044 758 2 BOLT, WITH HEX. SOCKET M6X48 2 ALLUM ENGINE
    HD.
24 035 133 660 C FUEL PIPE
    F >> 85-D-900 728   1
-24 035 133 660 G FUEL PIPE
    F 85-D-900 729>>   1
25 035 906 171 A COLD START VALVE   1
26 50 906 179 GASKET   1
27 N 012 226 5 SPRING WASHER B6 2
28 N 014 703 5 BOLT, WITH HEX. SOCKET M6X18 2
    HD.
29 48 133 505 BANTO BOLT WITH FILTER M12X1,5 1
30 043 906 163 A THERMO TIME SWITCH 35C M14X1,5 1
31 N 013 806 4 SEALING WASHER A10X14 1
32 35 133 689 BRACKET 8-PIN 2
-33 443 957 818 C CABLE BINDER 7X273-8 X
