NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

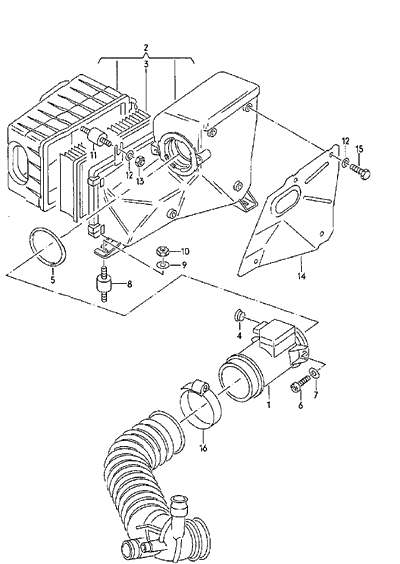

AIR VOLUME METER | RR | ||||||
AIR CLEANER WITH CONNECTING | |||||||
PARTS | |||||||
1 | 034 133 471 K | AIR VOLUME METER | 1 | ||||
2 | 034 133 837 AQ | AIR CLEANER | 1 | ||||
3 | 034 133 843 A | FILTER ELEMENT | 1 | ||||
4 | 034 129 777 B | CAP | BLUE | 1 | |||
5 | N 904 671 01 | O-RING | 79X5,3 | 1 | |||
6 | N 014 702 10 | BOLT, WITH HEX. SOCKET | M6X15 | 2 | |||
HD. | |||||||
7 | N 900 662 01 | WASHER | 6,4X22X2,75 | 2 | |||
8 | 431 121 273 B | BONDED RUBBER MOUNTING | M8 | 2 | |||
9 | N 011 670 16 | WASHER | 8,4X24X2 | 2 | |||
10 | N 011 008 18 | HEX. NUT | M8 | 2 | |||
11 | 431 906 095 | BONDED RUBBER MOUNTING | M6 | 1 | |||
12 | N 011 666 15 | WASHER | 6,4X18X1,6 | 5 | |||
13 | N 011 006 24 | HEX. NUT | M6 | 1 | |||
14 | 034 133 833 C | SHIELD | 1 | ||||
15 | N 040 268 1 | SCREW, HEXAGONAL HEAD | M6X14 | 4 | |||
16 | N 024 518 3 | CLIP | AL70-90 | 1 | |||
