NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

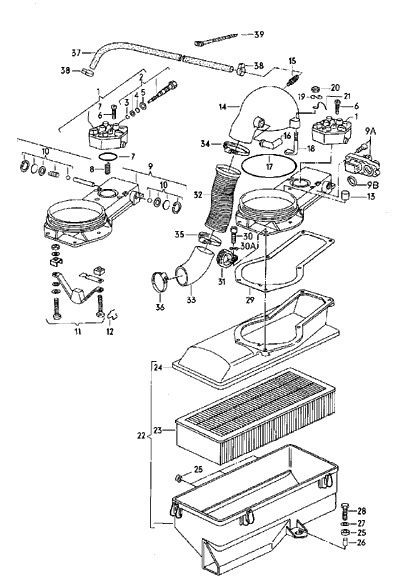

FUEL METERING VALVE | WR,GV,WX,MB | ||||||
AIR FLOW METER | |||||||
INTAKE AIR DUCT | |||||||
-1 | 034 133 481 J | FUEL METERING VALVE | 1 | MB | |||
1 | 035 133 481 F | FUEL METERING VALVE | 1 | WR,GV | |||
-1 | 035 133 481 M | FUEL METERING VALVE | 1 | WX | |||
2 | 35 198 685 | PARTS KIT FOR FUEL METERING | 1 | ||||
VALVE | |||||||
- | 35 198 691 | SET OF GASKETS FOR | 1 | ||||
FUEL METERING VALVE | |||||||
3 | 35 133 487 | SEALING WASHER | 4MM | 1 | |||
4 | 035 133 485 A | SEALING WASHER | 7MM | 1 | |||
5 | N 013 813 1 | SEALING WASHER | A12X17 | 1 | |||
-5 | N 013 830 2 | SEALING WASHER | A8X12 | 1 | WX | ||
6 | 035 133 483 C | SCREW, CHEESE HD. | 3 | ||||
7 | 34 133 476 | O-RING | 29,5X1,5 | 1 | |||
8 | 035 133 543 B | PRESSURE SPRING | 1 | ||||
9 | 035 133 471 P | AIR FLOW METER | 1 | WX | |||
-9 | 034 133 471 J | AIR FLOW METER | 1 | MB | |||
-9 | 035 133 471 J | AIR FLOW METER | |||||
F >> 85-C-902 000 | 1 | WR,GV | |||||
-9 | 035 133 471 S | AIR FLOW METER | |||||
F 85-D-900 001>> | 1 | WR,GV | |||||
(9A) | 035 133 472 B | POTENTIOMETER | |||||
FOR VEHICLES WITH | |||||||
ON-BOARD COMPUTER | |||||||
F >> 85-C-902 000 | 1 | WR,GV | |||||
9A | 035 133 472 A | POTENTIOMETER | |||||
FOR VEHICLES WITH | |||||||
ON-BOARD COMPUTER | |||||||
F 85-D-900 001>> | 1 | WR,GV,MB | |||||
9B | 35 133 476 | O-RING | 1 | ||||
FOR VEHICLES WITH | |||||||
ON-BOARD COMPUTER | |||||||
10 | 63 133 417 | CONTROL LEVER MOUNTING | 1 | ||||
11 | 63 133 419 | STOP | 1 | WR,GV | |||
12 | 035 133 478 A | RETAINING CLIP | 1 | ||||
13 | 035 133 465 A | GUIDE TUBE | 1 | WR,GV | |||
-13 | 26 133 777 | PLUG FOR CO-ADJUSTING | 1 | MB,WX | |||
SCREW | |||||||
14 | 035 133 357 P | INTAKE AIR DUCT | 1 | WX | |||
14 | 035 133 357 P | INTAKE AIR DUCT | |||||
F >> 85-E-901 500 | 1 | WR,GV | |||||
-14 | 035 133 357 AB | INTAKE AIR DUCT | |||||
F 85-F-900 001>> | 1 | WR,GV | |||||
-14 | 034 133 357 C | INTAKE AIR DUCT | 1 | MB | |||
-15 | 034 133 382 F | ADAPTER | 1 | MB | |||
15 | 035 145 741 F | CONTROL JET | 1 | WR,GV | |||
15 | 035 145 741 H | CONTROL JET | 1 | WX | |||
-15 | 035 145 741 G | CONTROL JET | 1 | WX | |||
16 | 035 133 341 D | CONNECTING PIPE | 1 | WR,GV | |||
-16 | 35 133 995 | CONNECTING PIPE | 1 | MB | |||
17 | 11 519 345 | SEALING WASHER | |||||
F >> 85-B-900 050 | 1 | WR,GV | |||||
-17 | 35 133 361 | SEALING WASHER | |||||
F 85-B-900 051>> | 1 | ||||||
-17 | 35 133 361 | SEALING WASHER | 1 | WX | |||
18 | 35 133 387 | SCREW | 2 | ||||
19 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
20 | N 011 006 24 | HEX. NUT | M6 | 2 | |||
21 | 035 103 241 C | BRACKET | 1 | ||||
22 | 035 133 837 AB | AIR CLEANER | 1 | ||||
23 | 69 129 620 | AIR CLEANER ELEMENT | 1 | ||||
24 | 35 133 845 | AIR CLEANER UPPER PART | 1 | ||||
25 | 431 129 669 | GROMMET | 3 | ||||
26 | 34 133 861 | SLEEVE | 2 | ||||
27 | 361 501 575 | WASHER | 1 | ||||
28 | N 010 241 15 | SCREW, HEXAGONAL HEAD | M8X22 | 1 | |||
29 | 049 133 379 A | GASKET | 1 | ||||
30 | N 010 217 10 | SCREW, HEXAGONAL HEAD | M6X20 | 6 | |||
30A | N 012 226 5 | SPRING WASHER | B6 | 6 | |||
31 | N 020 690 1 | CLIP | B20X28GI | 1 | |||
32 | HOSE | ||||||
SEE ILLUSTRATION: | 20-10 NR.20 | ||||||
33 | CONNECTING PIPE | ||||||
SEE ILLUSTRATION: | 20-10 NR.23 | ||||||
34 | N 024 522 3 | CLIP | LA60-80 | 1 | |||
35 | N 024 505 4 | CLIP | LC50-70 | 1 | |||
36 | N 024 504 4 | CLIP | LC40-60 | 1 | |||
37 | N 900 996 01 | HOSE IN COILS OF 5M | 5,5X3 | 1 | WR,GV | ||
'ORDER UNIT 5' | |||||||
ALSO USE: | N 100 497 01 | 2 | |||||
- | N 020 353 5 | HOSE IN COILS OF 5M | 3,5X2 | * | |||
'ORDER UNIT 5' | |||||||
-37 | SHORTEN TO: | 220MM | 1 | MB | |||
- | N 100 497 01 | RETAINING CLIP | 12,6X6X0,8 | 2 | |||
38 | 111 127 537 A | CLIP | 2 | ||||
39 | N 900 603 01 | CABLE BINDER | 6,5X175 | 2 |
