NO CODE DESCRIPTION NOTE EA ADDITIONнн

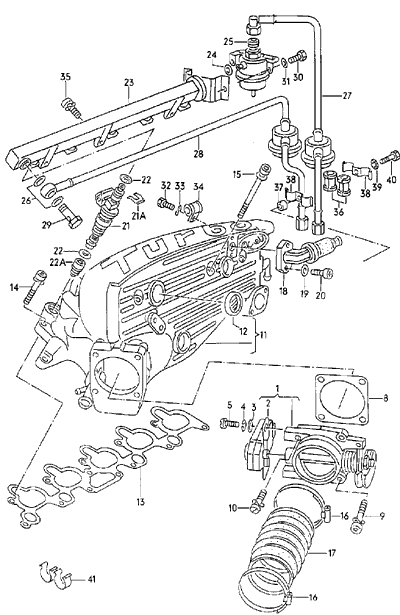

    THROTTLE VALVE ADAPTER     KW
    INTAKE MANIFOLD
    FUEL LINE
1 035 133 063 FT THROTTLE VALVE ADAPTER   1
2 35 906 111 SWITCH   1
3 N 011 535 3 WASHER A3,2X7X0,5 2
4 N 012 003 2 LOCK RING B3 2
5 N 014 154 1 FILLISTER HD. SCREW AM3X18 2
8 035 133 073 F GASKET   1
-9 N 014 705 3 BOLT, WITH HEX. SOCKET M6X25 2
    HD.
    ALSO USE: N 012 226 5 2
- N 012 226 5 SPRING WASHER B6 X
10 N 014 743 2 BOLT, WITH HEX. SOCKET M6X30 2
    HD.
11 035 133 201 BE INTAKE MANIFOLD   1
12 59 103 113 COVER 36,6 1
13 035 129 717 M GASKET   1
14 N 019 903 5 BOLT, WITH HEX. SOCKET M8X32 4
    HD.
15 N 904 966 01 BOLT, WITH HEX. SOCKET M8X160Z1 4
    HD. (COMBI.)
16 N 024 522 3 CLIP LA60-80 1
-16 N 024 518 3 CLIP AL70-90 1
17 035 145 720 B HOSE   1
18 034 905 379 B TEMPERATURE SENSOR   1
    ALSO USE: 443 906 232 1
    AS REQUIRED USE: 000 979 133 A 1
      000 979 133 AB 1
- 443 906 232 FLAT CONTACT HOUSING 2 PIN 1
    FOR CONTACT: 000 979 126 X
      000 979 217 X
- 000 979 133 A 1 SET OF SINGLE WIRES EACH 1 X
    WITH 2 CONTACTS, GOLD PLATED
    IN BAG OF 5
    'ORDER UNIT 5'
    FLAT CONTACT 2,8
- 000 979 133 AB 1 SET OF SINGLE WIRES 1 X
    (HIGH TEMPERATURE RESISTANT)
    EACH WITH 2 CONTACTS, GOLD PLATED
    IN BAG OF 5
    'ORDER UNIT 5'
    FLAT CONTACT 2,8
19 N 011 557 2 WASHER 6,4X11X1,6 2
20 N 014 702 10 BOLT, WITH HEX. SOCKET M6X15 2
    HD.
21 35 906 031 INJECTOR   5
21A 35 906 037 RETAINING CLIP   5
-22 30 198 031 SET OF GASKETS FOR PRESSURE   X
    REGULATOR AND INJECTOR
22A 035 133 555 B INSERT FOR INJECTOR   5
23 35 133 681 FUEL PIPE   1
-24 30 198 031 SET OF GASKETS FOR PRESSURE   X
    REGULATOR AND INJECTOR
25 035 133 534 B PRESSURE REGULATOR   1
26 N 013 812 8 SEALING WASHER A12X15,5 2
27 035 133 717 AC FUEL PIPE RETURN 1
28 035 133 715 AC FUEL PIPE FEED 1
29 48 133 505 BANTO BOLT WITH FILTER M12X1,5 1
30 N 014 703 5 BOLT, WITH HEX. SOCKET M6X18 2
    HD.
31 N 011 524 23 WASHER A6,4X12,5X1,6 2
32 N 010 215 27 SCREW, HEXAGONAL HEAD M6X15 2
33 N 011 524 23 WASHER A6,4X12,5X1,6 2
34 N 020 620 1 CLIP D1-13X15 2
35 N 014 703 5 BOLT, WITH HEX. SOCKET M6X18 2
    HD.
- N 013 804 2 SEALING WASHER A6X10 2
36 35 133 332 GROMMET   2
37 35 133 337 BUSH   1
38 35 133 340 CLIP   2
39 N 012 226 5 SPRING WASHER B6 1
40 N 010 217 10 SCREW, HEXAGONAL HEAD M6X20 1
41 049 133 687 H BRACKET   1
