NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

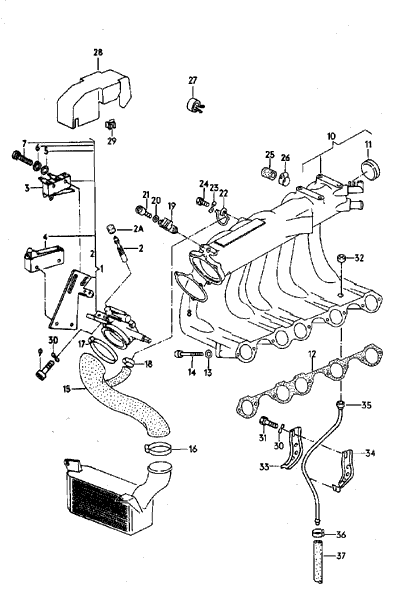

THROTTLE VALVE
ADAPTER |
|
|
WR,GV,WX,MB |
|
|
|
INTAKE
MANIFOLD |
|
|
|
|
|
|
TEMPERATURE
SENSOR |
|
|
|
|
1 |
035 133 063 FR |
THROTTLE VALVE
ADAPTER |
|
1 |
WR,GV |
|
-1 |
034 133 063 AG |
THROTTLE VALVE
ADAPTER |
|
1 |
MB |
|
1 |
035 133 063 FS |
THROTTLE VALVE
ADAPTER |
|
1 |
WX |
|
- |
34
133 283 |
DASHPOT |
|
1 |
MB |
|
- |
49
129 157 |
HEX. NUT |
|
1 |
MB |
|
2 |
35
133 432 |
ADJUSTING SCREW |
|
1 |
WX |
|
2 |
035 133 144 A |
ADJUSTING SCREW
WITH GASKET |
|
1 |
|
|
2A |
35
129 375 |
CAP |
|
1 |
|
|
3 |
437
906 277 |
SWITCH |
|
|
|
|
|
|
FOR FULL
THROTTLE ENRICHMENT |
|
|
|
|
|
|
F >>
85-C-902 000 |
|
1 |
WR,GV |
|
-3 |
857
906 277 |
SWITCH |
|
1 |
WX |
|
-3 |
443 906 277 D |
SWITCH |
|
|
|
|
|
|
FOR FULL
THROTTLE ENRICHMENT |
|
|
|
|
|
|
F 85-D-900
001>> |
|
1 |
WR,GV |
|
4 |
411
927 211 |
SWITCH |
|
|
|
|
|
|
F >>
85-C-902 000 |
|
1 |
WR,GV |
|
-4 |
443 906 277 B |
SWITCH |
|
|
|
|
|
|
F 85-D-900
001>> |
|
1 |
WR,GV |
|
|
|
F 85-D-900
582>> |
|
1 |
WX |
|
- |
034 133 093 F |
SWITCH |
|
1 |
MB |
|
5 |
N 011 535 3 |
WASHER |
A3,2X7X0,5 |
4 |
|
|
6 |
N 012 003 2 |
LOCK RING |
B3 |
4 |
|
|
7 |
N 014 154 1 |
FILLISTER HD.
SCREW |
AM3X18 |
4 |
|
|
8 |
*034 133 073 G |
GASKET |
|
1 |
WR,GV,MB |
|
9 |
N 010 217 10 |
SCREW,
HEXAGONAL HEAD |
M6X20 |
3 |
|
|
|
|
ALSO USE: |
N 012 226 5 |
3 |
|
|
10 |
035 133 201 AH |
INTAKE MANIFOLD |
|
1 |
WR |
|
-10 |
035 133 201 AJ |
INTAKE MANIFOLD |
|
1 |
WX |
|
-10 |
035 133 201 AS |
INTAKE MANIFOLD |
|
1 |
"CH"
,"S" |
|
-10 |
034 133 201 H |
INTAKE MANIFOLD |
|
1 |
MB |
|
11 |
59
103 113 |
COVER |
36,6 |
1 |
|
|
12 |
*034 129 717 M |
GASKET |
|
1 |
WR,GV |
|
-12 |
*034 129 717 H |
GASKET |
|
1 |
MB |
|
13 |
N 011 558 11 |
WASHER |
8,4X15X1,6 |
8 |
|
|
14 |
N 014 711 2 |
BOLT, WITH HEX.
SOCKET |
M8X65 |
8 |
|
|
|
|
HD. |
|
|
|
|
15 |
|
HOSE |
|
|
|
|
|
|
SEE
ILLUSTRATION: |
20-10 NR.18 |
|
|
|
16 |
N 024 522 3 |
CLIP |
LA60-80 |
1 |
|
|
17 |
N 024 518 3 |
CLIP |
AL70-90 |
1 |
|
|
18 |
N 102 582 01 |
CLIP |
AL12-22 |
2 |
WR,GV |
|
19 |
035 905 379 B |
TEMPERATURE
SENSOR |
|
1 |
WR,GV,WX |
|
-19 |
|
TEMPERATURE
SENSOR |
|
|
MB |
|
|
|
SEE
ILLUSTRATION: |
20-10 NR.12 |
|
|
|
20 |
N 011 557 2 |
WASHER |
6,4X11X1,6 |
2 |
|
|
21 |
N 014 702 10 |
BOLT, WITH HEX.
SOCKET |
M6X15 |
2 |
|
|
|
|
HD. |
|
|
|
|
22 |
35
145 169 |
BRACKET |
|
1 |
WR,GV |
|
23 |
N 012 226 5 |
SPRING WASHER |
B6 |
1 |
WR,GV |
|
24 |
N 010 212 26 |
SCREW,
HEXAGONAL HEAD |
M6X12 |
1 |
WR,GV |
|
25 |
49
133 335 |
CAP |
10MM |
1 |
WR,GV |
|
-25 |
049 133 335 A |
CAP |
12MM |
|
MB |
|
26 |
N 024 528 1 |
CLIP |
LC8-12 |
1 |
WR,GV |
|
-26 |
N 102 582 01 |
CLIP |
AL12-22 |
X |
MB |
|
27 |
803
971 847 |
CABLE TERMINAL |
|
1 |
|
|
28 |
35
133 105 |
CAP |
|
1 |
WR,GV |
|
-28 |
035 133 105 A |
CAP |
|
1 |
WX |
|
-28 |
035 133 105 B |
CAP |
|
1 |
WX |
|
29 |
191 819 145 A |
CLAMP |
|
1 |
WR,GV |
|
30 |
N 012 226 5 |
SPRING WASHER |
B6 |
X |
|
|
31 |
N 010 238 20 |
SCREW,
HEXAGONAL HEAD |
M8X15 |
1 |
MB |
|
32 |
34
133 197 |
THREADED BUSH |
|
1 |
MB |
|
33 |
34
133 569 |
BRACKET, UPPER
PART |
|
1 |
MB |
|
34 |
34
133 570 |
BRACKET, LOWER
PART |
|
1 |
MB |
|
35 |
34
133 635 |
TUBE |
|
1 |
MB |
|
36 |
N 102 582 01 |
CLIP |
AL12-22 |
1 |
MB |
|
- |
N 900 996 01 |
HOSE IN COILS
OF 5M |
5,5X3 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
37 |
|
SHORTEN TO: |
520MM |
1 |
MB |
|
|
|
|
|
|
|
