| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

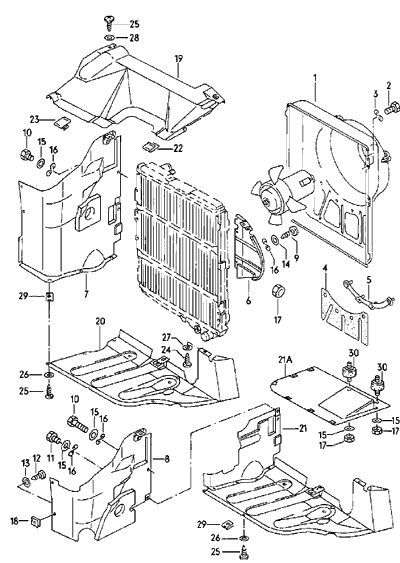

| FAN COWL | WR,GV,MB,KW, | ||||||
| AIR DUCT | WX,RR | ||||||
| 1 | 896 121 205 | FAN COWL | 1 | WR,GV,MB,WX, | |||
| RR | |||||||
| -1 | 859 121 207 A | FAN COWL | 1 | KW | |||
| 2 | N 010 208 5 | SCREW, HEXAGONAL HEAD | M6X8 | 5 | |||
| 3 | N 012 226 5 | SPRING WASHER | B6 | 5 | |||
| 4 | 823 121 225 | CAP | 1 | WR,GV,MB,WX | |||
| RR | |||||||
| 4 | 823 121 225 | CAP | 1 | KW | |||
| REWORK IF NECESSARY | |||||||
| 5 | 803 121 227 | BRACKET | 1 | ||||
| 6 | 811 121 281 A | AIR DUCT CARDBOARD | LEFT | ||||
| F >> 85-D-902 500 | 1 | WR,GV,WX | |||||
| -6 | 811 121 283 B | AIR DUCT CARDBOARD | LEFT | ||||
| F 85-E-000 001>> | 1 | WR,GV,MB,WX | |||||
| -6 | 811 121 283 C | AIR DUCT CARDBOARD | LEFT | 1 | WR,GV,MB,WX | ||
| FOR VEHICLES WITH HEADLIGHT | |||||||
| WASHER SYSTEM | |||||||
| -6 | 811 121 283 C | AIR DUCT CARDBOARD | LEFT | 1 | RR | ||
| -6 | 859 121 281 | AIR DUCT CARDBOARD | LEFT | 1 | KW | ||
| 7 | 857 121 282 E | AIR DUCT | RIGHT | 1 | WR,GV,MB,WX | ||
| -7 | 857 121 282 H | AIR DUCT | RIGHT | 1 | RR | ||
| 8 | 857 121 282 F | AIR DUCT | RIGHT | 1 | WR,GV,MB,WX | ||
| FOR VEHICLES WITH AIR CONDIT. | |||||||
| -8 | 857 121 282 G | AIR DUCT | RIGHT | 1 | RR | ||
| FOR VEHICLES WITH AIR CONDIT. | |||||||
| 9 | N 014 139 5 | FILLISTER HD. SCREW | M6X12 | 2 | |||
| 10 | N 010 212 26 | SCREW, HEXAGONAL HEAD | M6X12 | 1 | |||
| 11 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 4 | |||
| - | N 044 419 2 | STUD | M6X15 | 1 | |||
| 12 | N 013 966 26 | TAPPING SCREW, FILL. HD. | 4,2X13STC | 8 | |||
| 13 | N 011 522 7 | WASHER | A4,3X9X0,5 | 2 | |||
| 14 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | X | |||
| 15 | N 011 666 15 | WASHER | 6,4X18X1,6 | 4 | |||
| 16 | N 012 226 5 | SPRING WASHER | B6 | 4 | |||
| 17 | N 011 006 24 | HEX. NUT | M6 | 3 | |||
| -17 | N 011 183 11 | HEX. NUT, SELF-LOCKING | M6 | 4 | |||
| 18 | N 015 422 2 | SPEED NUT | ST4,2X17X11,3 | X | |||
| -18 | N 903 561 01 | SPEED NUT | M4X15X16,5 | 1 | |||
| - | N 010 261 3 | SCREW, HEXAGONAL HEAD | M4X15 | 1 | |||
| 19 | 811 121 293 | AIR DUCT CARDBOARD | UPPER | 1 | WR,GV,MB,WX | ||
| RR | |||||||
| -19 | 859 121 293 | AIR DUCT CARDBOARD | 1 | KW | |||
| 20 | 857 121 329 C | AIR DUCT CARDBOARD | LOWER | 1 | WR,GV,MB,RR | ||
| -20 | 859 121 329 | AIR DUCT CARDBOARD | LOWER | 1 | KW | ||
| 21 | 857 121 329 B | AIR DUCT CARDBOARD | LOWER | 1 | WR,GV,MB,WX | ||
| FOR VEHICLES WITH AIR CONDIT. | RR | ||||||
| 21A | 857 121 341 | AIR DUCT | LOWER | 1 | WR,GV,WX | ||
| FOR OIL COOLER | |||||||
| (21A) | 857 121 281 | AIR DUCT | LOWER | 1 | MB,RR | ||
| FOR OIL COOLER | |||||||
| 22 | 431 121 304 A | CLIP | 1 | ||||
| 23 | 811 121 304 | CLIP | 1 | ||||
| 24 | N 013 884 5 | TAPPING SCREW,HEX.HD. | 4,8X13 | 1 | |||
| 25 | N 013 966 26 | TAPPING SCREW, FILL. HD. | 4,2X13STC | 2 | |||
| -25 | N 013 969 4 | TAPPING SCREW, FILL. HD. | B4,8X16 | X | |||
| - | N 038 601 1 | NUT,THREAD CUTTING | 5X5,4 | 1 | |||
| - | N 014 710 7 | BOLT, WITH HEX. SOCKET | M8X20 | 1 | |||
| HD. | |||||||
| 26 | N 011 522 7 | WASHER | A4,3X9X0,5 | 4 | |||
| 27 | N 011 523 8 | WASHER | A5,3X10X1 | 2 | |||
| 28 | N 011 664 4 | WASHER | B4,3X12X1 | 2 | |||
| 29 | N 015 427 2 | SPEED NUT | B4,8X19,8X16,5 | 17 | |||
| 30 | 443 121 273 E | BONDED RUBBER MOUNTING | 2 | ||||
