NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

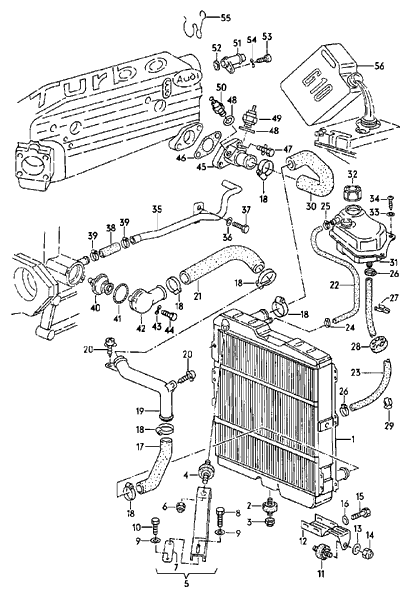

WATER COOLING | KW | ||||||
1 | 859 121 251 A | RADIATOR | 1 | ||||
2 | 431 121 273 | BONDED RUBBER MOUNTING | 1 | ||||
3 | N 902 920 01 | HEX. NUT, SELF-LOCKING | M8 | 1 | |||
4 | 443 121 273 E | BONDED RUBBER MOUNTING | 1 | ||||
5 | 859 121 261 | BRACKET | 1 | ||||
6 | N 011 183 11 | HEX. NUT, SELF-LOCKING | M6 | 1 | |||
7 | ADAPT WITH WORKSHOP EQUIPMENT | ||||||
8 | N 010 212 26 | SCREW, HEXAGONAL HEAD | M6X12 | 1 | |||
9 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 2 | |||
10 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 1 | |||
11 | 431 121 273 B | BONDED RUBBER MOUNTING | 1 | ||||
12 | 859 121 241 | BRACKET | 1 | ||||
13 | N 011 670 16 | WASHER | 8,4X24X2 | 1 | |||
14 | N 011 184 9 | HEX. NUT, SELF-LOCKING | M8 | 1 | |||
15 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 4 | |||
16 | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 4 | |||
17 | 859 121 063 | WATER HOSE | 1 | ||||
18 | N 024 507 7 | CLIP | AL32-50 | 6 | |||
19 | 859 121 071 | WATER PIPE | 1 | ||||
20 | N 013 968 1 | TAPPING SCREW, FILL. HD. | ST4,8X13-C | 2 | |||
ALSO USE: | N 011 665 3 | 2 | |||||
21 | 859 121 055 | WATER HOSE | 1 | ||||
- | N 900 996 01 | HOSE IN COILS OF 5M | 5,5X3 | * | |||
'ORDER UNIT 5' | |||||||
22 | SHORTEN TO: | 400MM | 1 | ||||
23 | 859 121 109 | WATER HOSE | 1 | ||||
24 | N 102 582 01 | CLIP | AL12-22 | 1 | |||
25 | N 024 528 1 | CLIP | LC8-12 | 1 | |||
26 | N 905 618 01 | CLIP | AL16-28 | 2 | |||
27 | 035 121 093 K | BRACKET FOR HOSE | 1 | ||||
28 | 811 121 451 | PROTECTIVE RING | 1 | ||||
29 | 035 121 093 H | BRACKET FOR HOSE | 1 | ||||
30 | 859 121 101 A | WATER HOSE | 1 | ||||
31 | 857 121 403 | RESERVOIR | 1 | ||||
32 | 443 121 321 | COVER | 1 | ||||
33 | N 011 665 3 | WASHER | 5,3X15X1,6 | 3 | |||
34 | N 013 975 11 | TAPPING SCREW, FILL. HD. | B4,8X19 | 2 | |||
35 | 035 121 071 AH | WATER PIPE | 1 | ||||
36 | N 011 525 13 | WASHER | A8,4 | 1 | |||
37 | N 010 240 16 | SCREW, HEXAGONAL HEAD | M8X20 | 1 | |||
-37 | N 010 238 20 | SCREW, HEXAGONAL HEAD | M8X15 | 1 | |||
38 | 859 121 063 A | WATER HOSE | 1 | ||||
39 | N 102 581 01 | CLIP | AL23-35 | 2 | |||
40 | 69 121 113 | THERMOSTAT | 87 C | 1 | |||
41 | N 901 368 02 | SEAL | 60X3,5 | 1 | |||
42 | 035 121 121 A | COVER | 1 | ||||
43 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
44 | N 010 219 1 | SCREW, HEXAGONAL HEAD | M6X28 | 2 | |||
45 | 035 121 133 K | ADAPTER | 1 | ||||
- | 37 121 687 | SEALING WASHER | 36X3,15 | 1 | |||
46 | 052 121 091 A | GASKET | 1 | ||||
47 | N 010 216 12 | SCREW, HEXAGONAL HEAD | M6X18 | 2 | |||
ALSO USE: | N 012 226 5 | 2 | |||||
- | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
48 | N 013 806 4 | SEALING WASHER | A10X14 | 2 | |||
49 | 171 919 521 F | TEMPERATURE SWITCH | 120C M10X1 | 1 | |||
1 PIN | |||||||
BLACK | |||||||
50 | 034 919 501 A | TEMPERATURE SENDER | 0-150C M10X1 | 1 | |||
1 PIN | |||||||
WHITE | |||||||
51 | 34 121 143 | ADAPTER | 1 | ||||
52 | N 900 351 03 | SEAL | 21X3N | 1 | |||
53 | N 014 707 4 | BOLT, WITH HEX. SOCKET | M8X15 | 1 | |||
HD. | |||||||
54 | N 012 241 11 | SPRING WASHER | B8X15X0,8 | 1 | |||
55 | 035 121 093 B | BRACKET | 1 | ||||
56 | G 011 A8C A1 | COOLANT ADDITIVE | 1.5LTR. | X | |||
-56 | G 011 A8C A8 | COOLANT ADDITIVE | 55L | X |
