NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

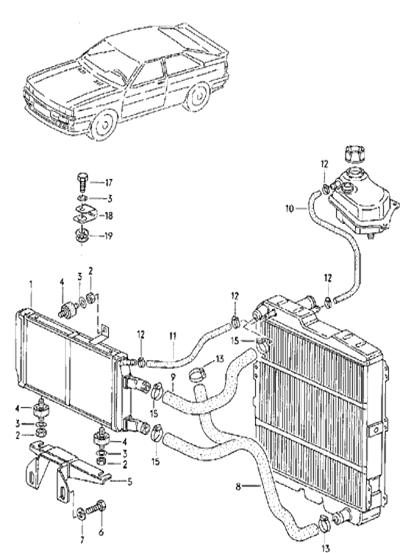

ADDITIONAL
RADIATOR |
|
|
WR,GV,MB,WX |
|
|
|
WATER HOSE |
|
|
RR |
|
1 |
857
121 251 |
ADDITIONAL
RADIATOR |
|
1 |
WR,GV,WX |
|
-1 |
857 121 251 C |
ADDITIONAL
RADIATOR |
|
1 |
MB |
|
-1 |
857 121 251 D |
ADDITIONAL
RADIATOR |
|
1 |
RR |
|
2 |
N 011 006 24 |
HEX. NUT |
M6 |
3 |
|
|
3 |
N 011 524 23 |
WASHER |
A6,4X12,5X1,6 |
3 |
|
|
4 |
443 121 273 E |
BONDED RUBBER
MOUNTING |
|
3 |
|
|
5 |
857
199 331 |
BRACKET FOR
RADIATOR |
|
1 |
WR,GV,WX,MB |
|
-5 |
857 199 331 A |
BRACKET FOR
RADIATOR |
|
1 |
RR |
|
6 |
N 010 254 14 |
SCREW,
HEXAGONAL HEAD |
M10X25 |
2 |
|
|
7 |
N 015 402 6 |
WASHER |
10,5X25X4 |
1 |
|
|
8 |
035 121 055 C |
WATER HOSE |
|
1 |
WR,GV,WX |
|
-8 |
857
121 055 |
WATER HOSE |
|
1 |
MB |
|
-8 |
857 121 055 A |
WATER HOSE |
|
1 |
RR |
|
9 |
035 121 101 H |
WATER HOSE |
|
1 |
WR,GV,WX |
|
-9 |
857
121 101 |
WATER HOSE |
|
1 |
MB |
|
-9 |
857 121 101 C |
WATER HOSE |
|
1 |
RR |
|
- |
443 121 107 A |
HOSE IN COILS
OF 5M |
7X2,5 |
* |
|
|
|
|
'ORDER UNIT 5' |
|
|
|
|
10 |
|
SHORTEN TO: |
360MM |
1 |
WR,GV,WX,MB |
|
-10 |
|
SHORTEN TO: |
490MM |
1 |
RR |
|
11 |
|
SHORTEN TO: |
450MM |
1 |
WR,GV,WX,MB |
|
-11 |
|
SHORTEN TO: |
300MM |
1 |
RR |
|
12 |
N 102 582 01 |
CLIP |
AL12-22 |
2 |
|
|
13 |
N 102 581 01 |
CLIP |
AL23-35 |
2 |
|
|
15 |
N 102 581 01 |
CLIP |
AL23-35 |
3 |
|
|
- |
N 024 528 1 |
CLIP |
LC8-12 |
1 |
|
|
|
|
|
|
|
|
