NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

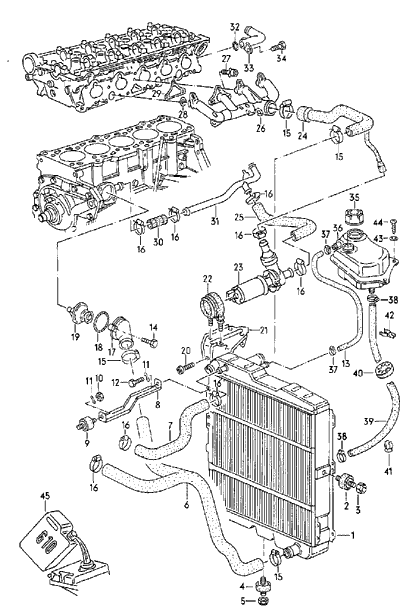

WATER COOLING | RR | ||||||
1 | 857 121 251 B | RADIATOR | 1 | ||||
2 | 803 121 273 | BONDED RUBBER MOUNTING | 1 | ||||
3 | N 902 920 01 | HEX. NUT, SELF-LOCKING | M8 | 1 | |||
4 | 857 121 273 | BONDED RUBBER MOUNTING | 1 | ||||
5 | N 902 856 01 | HEX. NUT | M10 | 1 | |||
6 | 857 121 055 A | WATER HOSE | 1 | ||||
7 | 857 121 101 C | WATER HOSE | 1 | ||||
8 | 855 121 263 | BRACKET | 1 | ||||
9 | 443 121 273 E | BONDED RUBBER MOUNTING | 1 | ||||
10 | N 011 006 24 | HEX. NUT | M6 | 1 | |||
11 | N 012 226 5 | SPRING WASHER | B6 | 2 | |||
12 | N 010 210 7 | SCREW, HEXAGONAL HEAD | M6X10K | 1 | |||
- | 443 121 107 A | HOSE IN COILS OF 5M | 7X2,5 | * | |||
'ORDER UNIT 5' | |||||||
13 | SHORTEN TO: | 490MM | 1 | ||||
14 | N 010 218 6 | SCREW, HEXAGONAL HEAD | M6X25 | 2 | |||
15 | N 024 507 7 | CLIP | AL32-50 | X | |||
16 | N 102 581 01 | CLIP | AL23-35 | X | |||
17 | 035 121 121 B | COVER | 1 | ||||
18 | N 901 368 02 | SEAL | 60X3,5 | 1 | |||
19 | 69 121 113 | THERMOSTAT | 87C | 1 | |||
20 | N 014 709 1 | BOLT, WITH HEX. SOCKET HD. | M8X22 | 3 | |||
21 | 034 121 093 H | BRACKET FOR ADDITIONAL WATER | 1 | ||||
PUMP | |||||||
22 | 035 959 209 E | RUBBER MOUNTING | 1 | ||||
23 | 034 965 561 C | ADDITIONAL WATER PUMP | 1 | ||||
24 | 857 121 101 B | WATER HOSE | 1 | ||||
25 | 857 121 081 C | WATER HOSE | 1 | ||||
26 | 34 121 187 | WATER COLLECTER | 1 | ||||
27 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 6 | |||
ALSO USE: | N 011 547 6 | 6 | |||||
- | N 011 547 6 | WASHER | A6,5X14X1,6 | 6 | |||
28 | N 028 203 4 | SEAL | 15X2,5S | 3 | |||
29 | 027 121 139 A | GASKET | 1 | ||||
30 | 034 121 063 C | WATER HOSE | 1 | ||||
31 | 034 121 071 R | WATER PIPE | 1 | ||||
32 | N 900 351 03 | SEAL | 21X3N | 1 | |||
33 | 034 121 143 B | ADAPTER | 1 | ||||
34 | N 014 707 4 | BOLT, WITH HEX. SOCKET | M8X15 | 1 | |||
HD. | |||||||
35 | 443 121 321 | COVER | 1 | ||||
36 | 857 121 403 | RESERVOIR | 1 | ||||
37 | N 024 528 1 | CLIP | LC8-12 | 2 | |||
38 | N 905 618 01 | CLIP | AL16-28 | 2 | |||
39 | 893 121 109 E | WATER HOSE | 1 | ||||
40 | 811 121 451 | PROTECTIVE RING | 1 | ||||
41 | 035 121 093 H | BRACKET FOR HOSE | 1 | ||||
42 | 035 121 093 K | BRACKET FOR HOSE | 1 | ||||
43 | N 011 665 3 | WASHER | 5,3X15X1,6 | 3 | |||
44 | N 013 975 11 | TAPPING SCREW, FILL. HD. | B4,8X19 | 3 | |||
45 | G 011 A8C A1 | COOLANT ADDITIVE | 1.5LTR. | 1 | |||
-45 | G 011 A8C A8 | COOLANT ADDITIVE | 55L | 1 |
