NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

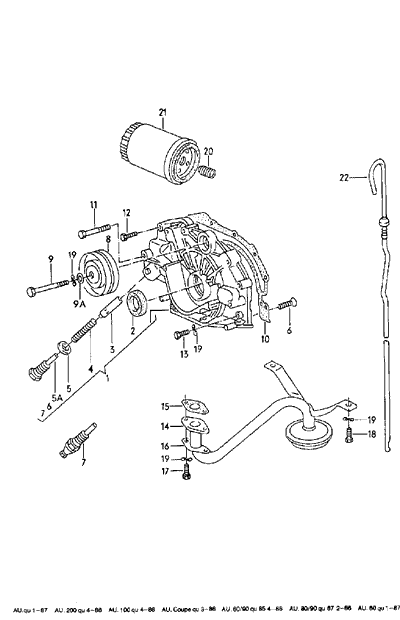

OIL PUMP | WR,GV,KW,MB | ||||||
OIL DIPSTICK | WX,RR | ||||||
-1 | 034 115 105 D | OIL PUMP | 1 | ALLU.ENGINE: | |||
WR | |||||||
1 | 034 115 105 A | OIL PUMP | |||||
F >> 85-J-900 643 | 1 | WR,GV,WX,MB | |||||
-1 | 034 115 105 D | OIL PUMP | |||||
F 85-J-900 644>> | 1 | WR,GV,WX,MB | |||||
-1 | 034 115 105 A | OIL PUMP | 1 | KW,RR | |||
2 | *034 115 147 A | SEAL | 1 | ||||
3 | 35 115 411 | PISTON | |||||
F >> 85-E-901 500 | 1 | WR,GV,WX | |||||
-3 | 069 115 411 A | PISTON | |||||
F 85-F-900 001>> | 1 | ||||||
4 | 35 115 421 | PRESSURE SPRING | |||||
F >> 85-E-901 500 | 1 | WR,GV,WX | |||||
-4 | 069 115 421 B | PRESSURE SPRING | |||||
F 85-F-900 001>> | 1 | ||||||
5 | N 013 832 1 | SEALING WASHER | |||||
F >> 85-E-901 500 | A18X22 | 1 | WR,GV,WX | ||||
-5 | N 013 827 2 | SEALING WASHER | |||||
F 85-F-900 001>> | A22X27 | 1 | |||||
5A | 35 115 431 | PLUG | |||||
F >> 85-E-901 500 | 1 | ||||||
-5 | 069 115 431 B | PLUG | M22X1,5 | 1 | |||
6 | N 033 178 3 | SCREW, CSK. HD. | M6X13 | 6 | |||
7 | 035 919 521 B | OIL TEMPERATURE GAUGE SENDER | 0-180C M22X1,5 | 1 | KW,MB,RR | ||
1 PIN | |||||||
BLACK | |||||||
8 | 069 109 243 B | RELAY ROLLER | 74MM | ||||
F >> 85-J-900 643 | 1 | WR,GV,WX,MB | |||||
-8 | 74 109 243 | RELAY ROLLER | 68,7MM | ||||
F 85-J-900 644>> | 1 | WR,GV,WX,MB | |||||
-8 | 069 109 243 B | RELAY ROLLER | 74MM | 1 | KW,RR | ||
9 | N 010 368 1 | SCREW, HEXAGONAL HEAD | M6X62 | 1 | WR,GV,MB,WX | ||
RR | |||||||
-9 | N 010 337 3 | SCREW, HEXAGONAL HEAD | M6X65 | 1 | KW | ||
9A | N 011 666 15 | WASHER | 6,4X18X1,6 | 1 | |||
10 | 034 115 189 A | GASKET | 1 | ||||
11 | N 010 370 5 | SCREW, HEXAGONAL HEAD | BM8X70 | 1 | WR,GV,WX,MB | ||
-11 | N 010 373 2 | SCREW, HEXAGONAL HEAD | M8X72 | 1 | ALLUM ENGINE | ||
-11 | N 010 361 12 | SCREW, HEXAGONAL HEAD | M8X65 | 1 | |||
- | N 012 241 11 | SPRING WASHER | B8X15X0,8 | X | KW,RR | ||
12 | N 010 220 3 | SCREW, HEXAGONAL HEAD | M6X30 | 2 | WR,GV,MB,WX | ||
ALSO USE: | N 011 524 23 | 2 | |||||
- | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 2 | WR,GV,MB,WX | ||
-12 | N 010 220 3 | SCREW, HEXAGONAL HEAD | M6X30 | 1 | RR | ||
ALSO USE: | N 012 226 5 | X | |||||
-12 | N 010 221 3 | SCREW, HEXAGONAL HEAD | M6X35 | 4 | ALLU.ENGINE: | ||
KW,WR | |||||||
13 | N 010 222 8 | SCREW, HEXAGONAL HEAD | M6X22 | X | WR,GV,MB,WX | ||
ALSO USE: | N 012 226 5 | X | RR | ||||
-13 | N 010 219 1 | SCREW, HEXAGONAL HEAD | M6X28 | 2 | ALLU.ENGINE: | ||
KW,WR | |||||||
14 | 035 115 217 B | SUCTION PIPE | 1 | KW | |||
-14 | 034 115 251 G | SUCTION PIPE | WR,GV,WX,MB, | ||||
RR | |||||||
ALSO USE: | >>85-M-000200 | ||||||
034 115 427 C | 1 | ||||||
034 115 273 A | 1 | ||||||
035 115 285 A | 1 | ||||||
54 115 221 | 1 | ||||||
- | 54 115 221 | RESTRICTOR | 1 | WR,GV,WX,MB | |||
- | 034 115 273 A | INTAKE MANIFOLD | |||||
F 85-M-000 201>>* | 1 | RR | |||||
- | 035 115 285 A | RETAINING RING | |||||
F 85-M-000 201>>* | 1 | RR | |||||
15 | 72 115 257 | GASKET | |||||
F >> 85-M-000 200* | 1 | ||||||
-15 | 034 115 427 C | SEAL | 26,5X2 | ||||
F 85-M-000 201>>* | 1 | ||||||
16 | 35 115 259 | LOCK PLATE | 1 | ||||
17 | N 010 216 12 | SCREW, HEXAGONAL HEAD | M6X18 | 2 | WR,GV,MB,WX | ||
RR | |||||||
-17 | N 010 215 27 | SCREW, HEXAGONAL HEAD | M6X15 | 2 | ALLU.ENGINE: | ||
KW,WR | |||||||
18 | N 010 210 7 | SCREW, HEXAGONAL HEAD | M6X10K | 2 | WR,GV,MB,WX | ||
RR | |||||||
-18 | N 014 782 1 | BOLT, WITH HEX. SOCKET | M6X25 | 2 | ALLU.ENGINE: | ||
HD. | KW,WR | ||||||
19 | N 012 226 5 | SPRING WASHER | B6 | X | |||
21 | OIL FILTER | ||||||
SEE ILLUSTRATION: | 05.sep | ||||||
22 | 034 115 611 L | OIL DIPSTICK | 1 | WR,GV,MB,WX | |||
RR | |||||||
- | 034 115 625 B | SEALING WASHER | 5X1,9 | 1 | WR,GV,MB,WX | ||
RR | |||||||
-22 | 035 115 611 D | OIL DIPSTICK | 1 | KW |
