| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

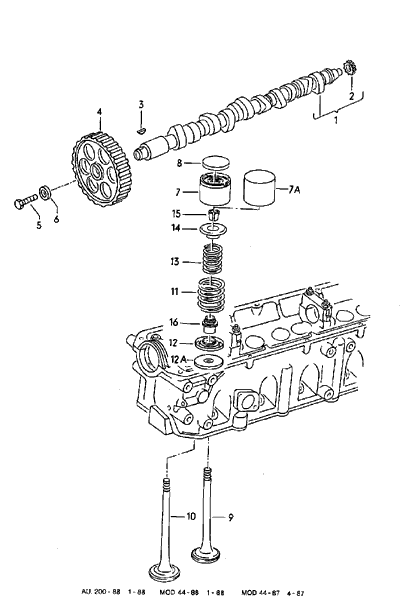

| CAMSHAFT, VALVES | WR,GV,MB,WX | ||||||
| 1 | 035 109 021 L | CAMSHAFT | |||||
| F 85-B-900 159>> | 1 | WR,GV | |||||
| -1 | 034 109 021 K | CAMSHAFT | 1 | MB | |||
| -1 | 035 109 021 AS | CAMSHAFT | 1 | WX | |||
| 2 | 48 109 109 | DRIVE GEAR FOR | |||||
| DISTRIBUTOR | |||||||
| F >> 85-B-900 158 | 1 | ||||||
| -2 | 35 109 109 | DRIVE GEAR FOR | |||||
| DISTRIBUTOR | |||||||
| F 85-B-900 159>> | 1 | ||||||
| 3 | N 012 708 2 | WOODRUFF KEY | 4X5 | 1 | |||
| 4 | 049 109 111 C | TOOTHED BELT PULLEY | |||||
| F >> 85-J-900 643 | 1 | ||||||
| -4 | 034 109 111 A | TOOTHED BELT PULLEY | |||||
| F 85-J-900 644>> | 1 | ||||||
| -4 | 034 109 111 A | TOOTHED BELT PULLEY | 1 | ALLUM ENGINE | |||
| 5 | N 010 137 1 | SCREW, HEXAGONAL HEAD | M12X1,5X35 | 1 | |||
| 6 | 56 109 143 | WASHER | 12,5X28X6 | 1 | |||
| 7 | 056 109 311 A | CAM FOLLOWER | 10 | WR,GV,WX | |||
| -7 | 034 109 309 AD | CAM FOLLOWER | 10 | MB | |||
| 8 | 56 109 561 | ADJUSTING WASHER | 3,3 | X | WR,GV,WX | ||
| -8 | 56 109 562 | ADJUSTING WASHER | 3,35 | X | WR,GV,WX | ||
| -8 | 56 109 563 | ADJUSTING WASHER | 3,4 | X | WR,GV,WX | ||
| -8 | 56 109 564 | ADJUSTING WASHER | 3,45 | X | WR,GV,WX | ||
| -8 | 56 109 565 | ADJUSTING WASHER | 3,5 | X | WR,GV,WX | ||
| -8 | 56 109 566 | ADJUSTING WASHER | 3,55 | X | WR,GV,WX | ||
| -8 | 56 109 567 | ADJUSTING WASHER | 3,6 | X | WR,GV,WX | ||
| -8 | 56 109 568 | ADJUSTING WASHER | 3,65 | X | WR,GV,WX | ||
| -8 | 56 109 569 | ADJUSTING WASHER | 3,7 | X | WR,GV,WX | ||
| -8 | 56 109 570 | ADJUSTING WASHER | 3,75 | X | WR,GV,WX | ||
| -8 | 56 109 571 | ADJUSTING WASHER | 3,8 | X | WR,GV,WX | ||
| -8 | 56 109 572 | ADJUSTING WASHER | 3,85 | X | WR,GV,WX | ||
| -8 | 56 109 573 | ADJUSTING WASHER | 3,9 | X | WR,GV,WX | ||
| -8 | 56 109 574 | ADJUSTING WASHER | 3,95 | X | WR,GV,WX | ||
| -8 | 56 109 575 | ADJUSTING WASHER | 4 | X | WR,GV,WX | ||
| -8 | 56 109 576 | ADJUSTING WASHER | 4,05 | X | WR,GV,WX | ||
| -8 | 56 109 577 | ADJUSTING WASHER | 4,1 | X | WR,GV,WX | ||
| -8 | 56 109 578 | ADJUSTING WASHER | 4,15 | X | WR,GV,WX | ||
| -8 | 56 109 579 | ADJUSTING WASHER | 4,2 | X | WR,GV,WX | ||
| -8 | 56 109 580 | ADJUSTING WASHER | 4,25 | X | WR,GV,WX | ||
| 9 | 035 109 601 F | INTAKE VALVE | 98,7 | WX | |||
| ALSO USE: | >>85-B-901532 | 5 | WR,GV | ||||
| 049 109 641 A | 10 | ||||||
| 113 109 651 A | 20 | ||||||
| -9 | 035 109 601 K | INTAKE VALVE | 91,9 | 5 | MB | ||
| 10 | 035 109 611 H | EXHAUST VALVE | 98,5 | 5 | WX | ||
| ALSO USE: | >>85-B-901532 | WR,GV | |||||
| 049 109 641 A | 10 | ||||||
| 113 109 651 A | 20 | ||||||
| -10 | 035 109 611 K | EXHAUST VALVE | 90,8 | 5 | MB | ||
| 11 | 078 109 623 A | SPRING - VALVE | OUTER | 10 | |||
| 12 | 056 109 629 A | CONCAVE WASHER | LOWER | 10 | |||
| 13 | 078 109 633 A | SPRING - VALVE | INNER | 10 | |||
| 14 | 056 109 641 A | CONCAVE WASHER | |||||
| F >> 85-B-901 532 | UPPER | 10 | |||||
| -14 | 049 109 641 A | CONCAVE WASHER | |||||
| F 85-B-901 533>> | UPPER | 10 | |||||
| 15 | 56 109 651 | COTTER, SPLIT | |||||
| F >> 85-B-901 532 | 20 | ||||||
| -15 | 113 109 651 A | COTTER, SPLIT | |||||
| F 85-B-901 533>> | 20 | ||||||
| 16 | 26 109 675 | SEAL - VALVE STEM | 10 | ||||
