| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

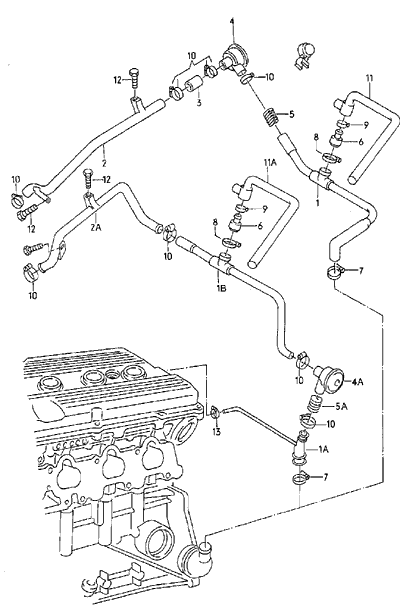

| VACUUM HOSES | RR | ||||||
| VENTILATION FOR CYLINDER BLOCK | |||||||
| 1 | 034 103 221 AF | BREATHER HOSE | 1 | ||||
| 2 | 034 103 217 L | BREATHER TUBE | 1 | ||||
| 3 | 034 133 999 F | HOSE | 1 | ||||
| 4 | 034 129 101 A | PRESSURE REGULATING VALVE | 1 | ||||
| 5 | 035 103 477 A | FLAME DEFLECTOR PLATE | 1 | ||||
| 6 | 035 103 245 A | BLEEDER VALVE | 1 | ||||
| 7 | N 024 507 7 | CLIP | AL32-50 | 1 | |||
| 8 | N 102 581 01 | CLIP | AL23-35 | 1 | |||
| 9 | N 102 582 01 | CLIP | AL12-22 | 1 | |||
| 10 | N 905 618 01 | CLIP | AL16-28 | 1 | |||
| 11 | SEE ILLUSTRATION: | BT 13-50 | |||||
| 12 | N 010 237 6 | SCREW, HEXAGONAL HEAD | M8X12 | ||||
| -12 | N 010 212 26 | SCREW, HEXAGONAL HEAD | M6X12 | 1 | |||
| ALSO USE: | N 015 276 1 | 1 | |||||
| - | N 015 276 1 | WASHER | 6 | 1 | |||
