NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

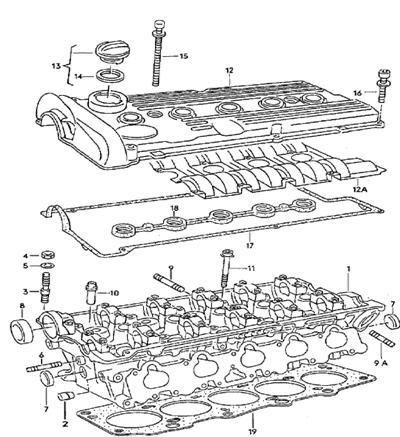

CYLINDER HEAD | KW | ||||||
1 | 034 103 353 F | CYLINDER HEAD | 1 | ||||
2 | 35 103 379 | PLUG | 8,9 | 6 | |||
-2 | 34 103 379 | PLUG | 9,5 | 1 | |||
3 | 27 103 397 | STUD | M7X45 | 26 | |||
4 | N 902 790 01 | HEX. NUT | M7 | 26 | |||
6 | N 044 398 1 | STUD | M6X48 | 1 | |||
7 | N 011 908 2 | COVER | 28 | 2 | |||
8 | 026 103 085 F | OIL SEAL | 47X10 | 1 | |||
9 | N 901 889 02 | STUD | M8X35 | 10 | |||
9A | N 044 408 2 | STUD | M8X25 | 1 | |||
10 | 27 103 419 | VALVE GUIDE | 38MM | 20 | |||
11 | 035 103 385 B | STUD | M11X1,5X173 | 12 | |||
- | 35 103 377 | WASHER | 12 | ||||
- | 35 103 398 | HEX. NUT | M11 | 12 | |||
12 | 034 103 471 A | CYLINDER HEAD COVER | 1 | ||||
12A | 34 103 547 | PARTITION | 1 | ||||
13 | 026 103 485 A | COVER | 1 | ||||
14 | 59 103 487 | GASKET | 1 | ||||
15 | N 044 758 2 | BOLT, WITH HEX. SOCKET | M6X48 | 4 | |||
HD. | |||||||
ALSO USE: | N 015 276 1 | 4 | |||||
- | N 015 276 1 | WASHER | 6 | 4 | |||
16 | N 014 705 3 | BOLT, WITH HEX. SOCKET | M6X25 | 4 | |||
HD. | |||||||
ALSO USE: | N 012 226 5 | 4 | |||||
- | N 012 226 5 | SPRING WASHER | B6 | 4 | |||
17 | 034 198 025 G | SET OF GASKETS FOR | 1 | ||||
CYLINDER HEAD COVER | |||||||
18 | --- --- --- . | DISCONTINUED / REPLACEMENT: | 034 198 025 G | 1 | |||
19 | 035 103 383 C | CYLINDER HEAD GASKET | 1 |
