NO CODE DESCRIPTION NOTE EA ADDITIONнн

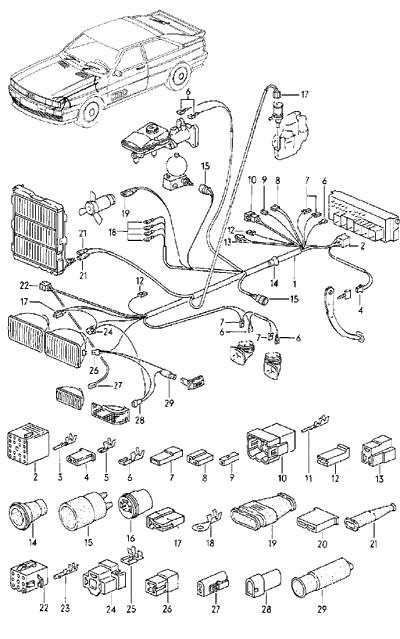

    LOOM, LEFT, FRONT     WR,GV,MB,KW,
          WX,RR
-1 857 971 071 B LOOM, LEFT, FRONT
    F >> 85-C-902 000   1 WR,GV
-1 857 971 071 E LOOM, LEFT, FRONT
    F 85-D-900 001>> 85-D-902 500   1 WR,GV
-1 857 971 071 F LOOM, LEFT, FRONT
    F >> 85-D-902 500 RHD 1 WR
1 857 971 071 K LOOM, LEFT, FRONT
    F 85-E-900 001>> 85-E-901 500   1 WR,GV
-1 857 971 071 N LOOM, LEFT, FRONT
    F 85-F-900 001>> 85-F-901 500   1 WR,GV
-1 857 971 071 R LOOM, LEFT, FRONT
    F 85-G-900 001>>   1 WR,GV
-1 857 971 071 S LOOM, LEFT, FRONT   1 MB
-1 857 971 071 T LOOM, LEFT, FRONT   1 RR
-1 857 971 071 Q LOOM, LEFT, FRONT   1 "CH" :WX
-1 859 971 071 LOOM, LEFT, FRONT   1 KW
    LOOM, LEFT, FRONT
    SINGLE PARTS
    F >> 85-F-901 500     QUATTRO
    ==============================
2 171 971 971 E RD. CONNECTOR SLEEVE HOUSING 20 PIN 1
3 N 017 563 4 CYLINDRICAL CONNECTOR WITH 1,6X2,5 4
    RETAINING LUG
4 443 906 231 TERMINAL PIN HOUSING 2 PIN 1
5 N 017 483 5 FLAT SLEEVE F2,8X1 X
    'ORDER UNIT 25'
6 N 017 490 7 FLAT CONNECTOR WITH F6,3X1 X
    RETAINING LUG
    'ORDER UNIT 25'
-6 N 017 491 8 FLAT CONNECTOR WITH F6,3X2,5 X
    RETAINING LUG
    'ORDER UNIT 25'
-6 N 017 494 7 FLAT CONNECTOR WITH F6,3X6 X
    RETAINING LUG
    'ORDER UNIT 25'
7 111 971 921 B TERMINAL PIN HOUSING   4
8 810 971 989 TERMINAL PIN HOUSING   1
-9 161 971 990 A TERMINAL PIN HOUSING 1 PIN 1
    ALSO USE: 161 971 976 A 1
10 433 959 772 ROUND CONNECTOR HOUSING   1
11 N 017 582 3 CYL.CONNECTOR WITH RETAIN. LUG 3,5X2,5 8
-12 161 971 990 A TERMINAL PIN HOUSING 1 PIN 1
    ALSO USE: 161 971 976 A 1
- 161 971 976 A FLAT CONNECTOR HOUSING 1 PIN 1
-13 161 971 970 TERMINAL PIN HOUSING 3 PIN 1
    ALSO USE: 161 971 975 1
14 171 971 905 C GROMMET 33,5/11 1
15 171 957 911 BOOT   2
16 113 945 525 TERMINAL PIN HOUSING 3 PIN 2
-17 161 971 989 C TERMINAL PIN HOUSING 2 PIN 2
    ALSO USE: 161 971 988 C 1
18 111 971 948 CABLE SHOE A 8X6 4
19 171 959 459 PROTECTIVE CAP   1
  171 906 231 TERMINAL PIN HOUSING 2 PIN 1
21 443 971 867 GROMMET 8,5 2
22 433 959 771 RD. CONNECTOR SLEEVE HOUSING   1
23 N 017 598 3 CYLINDRICAL CONNECTOR WITH 3,5X2,5 11
    RETAINING LUG
24 161 941 165 TERMINAL PIN HOUSING   2
25 N 017 496 5 ANGLED CONNECTOR EF7,7X2,5 X
    'ORDER UNIT 25'
- 443 972 994 FLAT CONTACT HOUSING 8 PIN 1
- 443 971 969 FLAT CONNECTOR HOUSING   1
- 813 972 923 FLAT CONTACT HOUSING WITH 2 PIN 1
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 813 972 927 FLAT CONTACT HOUSING WITH 3 PIN 1
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 893 971 974 FLAT CONTACT HOUSING 4 PIN 1
26 161 971 989 C TERMINAL PIN HOUSING 2 PIN 2
27 811 972 577 RD. CONNECTOR SLEEVE HOUSING   1
28 811 972 575 ROUND CONNECTOR HOUSING   1
29 447 953 331 A GROMMET   2
    TERMINAL PIN HOUSING 4 PIN
- 171 971 999 A RD. CONNECTOR SLEEVE HOUSING   1
- 443 971 867 GROMMET   2
- 161 971 988 C FLAT CONNECTOR HOUSING 2 PIN 1
- 161 971 989 C TERMINAL PIN HOUSING 2 PIN 1
- 291 711 245 A CLIP   1
- 813 972 923 FLAT CONTACT HOUSING WITH 2 PIN 1
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 813 972 924 FLAT CONTACT HOUSING WITH 1 PIN 1
    HELPER CONTACT CATCH AND 6,3
    GROMMET
    SINGLE PARTS
    F 85-G-900 001>>     QUATTRO
    ==============================
- 443 972 994 FLAT CONTACT HOUSING 8 PIN 2
      6,3
- 813 972 923 FLAT CONTACT HOUSING WITH 2 PIN 6
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 443 959 840 FLAT CONTACT HOUSING 3 PIN 2
- 111 971 921 B TERMINAL PIN HOUSING 1 PIN 3
      6,3
- 161 941 165 A TERMINAL PIN HOUSING 3 PIN 4
      9,5
- 813 972 924 FLAT CONTACT HOUSING WITH 1 PIN 3
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 443 971 989 TERMINAL PIN HOUSING 2 PIN 1
      6,3
- 211 971 921 ANGLED CONNECTOR 1 PIN 1
      6,3
- 321 941 600 TERMINAL PIN HOUSING 2 PIN 2
      6,3
- 893 906 231 TERMINAL PIN HOUSING 3 PIN 1
      6,3
- 813 972 924 FLAT CONTACT HOUSING WITH 1 PIN 1
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 813 972 927 FLAT CONTACT HOUSING WITH 3 PIN 1
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 113 945 525 TERMINAL PIN HOUSING 3 PIN 3
      6,3
- 810 971 989 TERMINAL PIN HOUSING 2 PIN 1
- 443 971 969 FLAT CONNECTOR HOUSING 4 PIN 1
      6,3
- 893 971 974 FLAT CONTACT HOUSING 4 PIN 2
      6,3
- 161 971 990 A TERMINAL PIN HOUSING 1 PIN 1
- 813 972 925 FLAT CONTACT HOUSING WITH 1 PIN 2
    HELPER CONTACT CATCH AND 6,3
    GROMMET
- 811 971 871 A GROMMET 47/15 1
- 867 972 525 B GROMMET 26X13 1
    THERMO SWITCH 3 PIN
- 447 953 331 A GROMMET   2
    TERMINAL PIN HOUSING 4 PIN
- 171 957 911 BOOT   1
