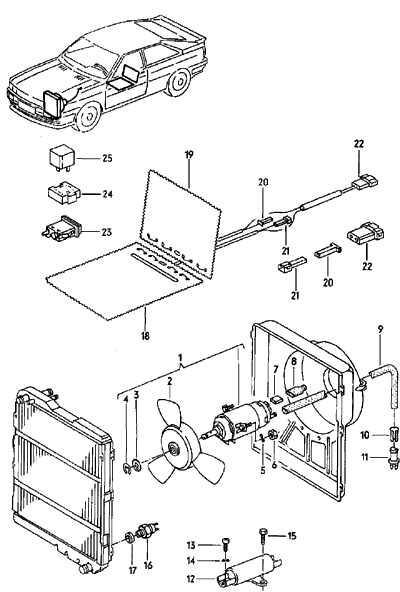

NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||
ELECTRIC FAN | WR,GV,WX,MB, | ||||||
THERMO SWITCH | KW,RR | ||||||
-1 | 323 959 455 A | ELECTRIC FAN | 250/150W 305MM | 1 | WR,GV | ||
ALSO USE: | 191 906 232 B | 1 | |||||
191 927 907 | 1 | ||||||
-1 | 443 959 455 H | ELECTRIC FAN | 700W 352MM | 1 | KW | ||
-1 | 165 959 455 AE | ELECTRIC FAN | 350/250W 305MM | 1 | WX,MB,RR | ||
BOSCH | |||||||
ALSO USE: | 191 906 232 B | 1 | |||||
191 927 907 | 1 | ||||||
357 972 773 | 1 | ||||||
1H0 906 233 | 1 | ||||||
357 972 742 B | 1 | ||||||
- | 191 906 232 B | TERMINAL PIN HOUSING | 3 PIN | 1 | |||
- | 191 927 907 | PROTECTIVE CAP | 16X25 | 1 | |||
- | 1H0 906 233 | FLAT CONTACT HOUSING | 3 PIN | 1 | |||
- | 357 972 742 A | SINGLE WIRING SEAL | 9,0X7,8 | 1 | |||
WHITE | |||||||
FOR WIRE CROSS SECTION: | 1,5 | ||||||
- | 357 972 742 B | SINGLE WIRING SEAL | 9,0X7,8 | 1 | |||
RED | |||||||
FOR WIRE CROSS SECTION: | 2,5 | ||||||
2 | 251 959 465 | FAN WHEEL | |||||
F >> 85-F-902 000 | 305MM AEG | 1 | WR,GV | ||||
-2 | 443 959 465 | FAN WHEEL | |||||
F 85-G-900 001>> | 305MM BOSCH | 1 | WR,GV | ||||
-2 | 443 959 465 B | FAN WHEEL | 352MM BOSCH | 1 | KW | ||
-2 | 811 959 465 A | FAN WHEEL | 305MM BOSCH | 1 | WX,MB,RR | ||
3 | 431 959 473 | SHAKE-PROOF WASHER | AEG | 1 | QUATTRO | ||
4 | 431 959 471 | CLAMPING WASHER | AEG | 1 | QUATTRO | ||
5 | N 012 226 5 | SPRING WASHER | B6 | 3 | QUATTRO | ||
6 | N 011 006 24 | HEX. NUT | M6 | 3 | QUATTRO | ||
- | N 010 339 3 | SCREW, HEXAGONAL HEAD | M6X40 | 3 | SPORTQUATTRO | ||
- | N 011 183 11 | HEX. NUT, SELF-LOCKING | M6 | 3 | SPORTQUATTRO | ||
- | N 011 524 23 | WASHER | A6,4X12,5X1,6 | 3 | SPORTQUATTRO | ||
7 | 171 906 231 | TERMINAL PIN HOUSING | 1 | ||||
-7 | 893 906 231 | TERMINAL PIN HOUSING | 3 PIN | X | |||
8 | 171 959 459 | PROTECTIVE CAP | |||||
F >> 85-F-902 000 | 1 | ||||||
-8 | 867 972 525 B | GROMMET | 26X13 | ||||
F 85-G-902 001>> | 1 | ||||||
12 | 433 959 493 A | SERIES RESISTANCE | 0,9 | 1 | WR,GV,WX,MB, | ||
RR | |||||||
-12 | 859 959 493 | SERIES RESISTANCE | 1 | KW | |||
13 | N 014 121 2 | FILLISTER HD. SCREW | AM4X6 | 2 | |||
14 | N 012 224 3 | SPRING WASHER | B4X9X0,5 | 2 | |||
-15 | N 014 093 3 | TAPPING SCREW, FILL. HD. | ST4,2X13-C | 1 | |||
16 | 191 959 481 C | DUAL THERMO-SWITCH | 95-84C/102-91C | 1 | WX,MB,RR | ||
3 PIN | |||||||
16 | 823 959 481 G | THERMO SWITCH | 95C-90C | ||||
F >> 85-F-902 000 | 1 | WR,GV | |||||
-16 | 893 959 481 | THERMO SWITCH | 95-90C M22X1,5 | ||||
2 PIN | |||||||
F 85-G-900 001>> | BLUE | 1 | WR,GV,KW | ||||
17 | N 043 808 3 | SEALING WASHER | A22X29 | 1 | |||
- | N 020 902 2 | CABLE BINDER | 6X246 | X | |||
SEAT AND BACKREST, | |||||||
HEATED | |||||||
-18 | 855 963 555 | HEATER ELEMENT-SEAT | |||||
(SEAT COVER - CLOTH) | |||||||
F >> 85-E-901 500* | 2 | QUATTRO | |||||
-18 | 443 963 555 S | HEATER ELEMENT | |||||
(SEAT COVER - CLOTH) | |||||||
(SEAT COVER - LEATHER) | |||||||
F 85-F-900 001>> | 2 | QUATTRO | |||||
-18 | 859 963 555 | HEATER ELEMENT-SEAT | 2 | SPORTQUATTRO | |||
-19 | 855 963 557 | HEATER ELEMENT-BACKREST | |||||
(SEAT COVER - CLOTH) | |||||||
F >> 85-E-901 500* | 2 | QUATTRO | |||||
-19 | 443 963 555 S | HEATER ELEMENT | |||||
(SEAT COVER - CLOTH) | |||||||
(SEAT COVER - LEATHER) | |||||||
F 85-F-900 001>> | 2 | QUATTRO | |||||
-19 | 859 963 557 | HEATER ELEMENT-BACKREST | 2 | SPORTQUATTRO | |||
20 | 161 971 976 A | FLAT CONNECTOR HOUSING | 1 PIN | 1 | |||
ALSO USE: | 161 971 990 A | 1 | |||||
-21 | 161 971 990 A | TERMINAL PIN HOUSING | 1 PIN | 1 | |||
ALSO USE: | 161 971 976 A | 1 | |||||
22 | 171 971 998 A | ROUND CONNECTOR HOUSING | 2 PIN | 1 | |||
-22 | 443 972 996 | FLAT CONTACT HOUSING | 6 PIN | 2 | |||
23 | 855 941 505 | SWITCH FOR SEAT HEATING | |||||
F >> 85-D-901 500 | 1 | QUATTRO | |||||
07/80-07/83 01Z | DARK BROWN (BROWN) | ||||||
-23 | 857 941 505 A | SWITCH FOR SEAT HEATING | |||||
F 85-E-900 001>> 85-E-901 500 | 1 | QUATTRO | |||||
08/83-07/84 01C | SATIN BLACK | 1 | |||||
-23 | 443 963 563 | SWITCH FOR SEAT HEATING | |||||
(DRIVERS SIDE) | |||||||
(PASSENGER SIDE) | |||||||
F 85-F-900 001>> | 1 | QUATTRO | |||||
-23 | 443 963 563 A | SWITCH FOR SEAT HEATING | |||||
(DRIVERS SIDE) | |||||||
F 85-F-900 001>> | 1 | QUATTRO | |||||
-23 | 443 941 505 B | SWITCH FOR SEAT HEATING | 1 | SPORTQUATTRO | |||
05/84-07/87 01C | SATIN BLACK | ||||||
-24 | 531 941 845 | RELAY PLATE | 18 PIN | 2 | |||
-24 | 443 937 501 B | RELAY PLATE | 2 | ||||
- | 321 971 946 | FLAT CONTACT HOUSING | 1 | ||||
-25 | 443 919 533 A | CONTROL UNIT FOR HEATED | |||||
SEAT | |||||||
F 85-F-900 001>> | X |
