NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

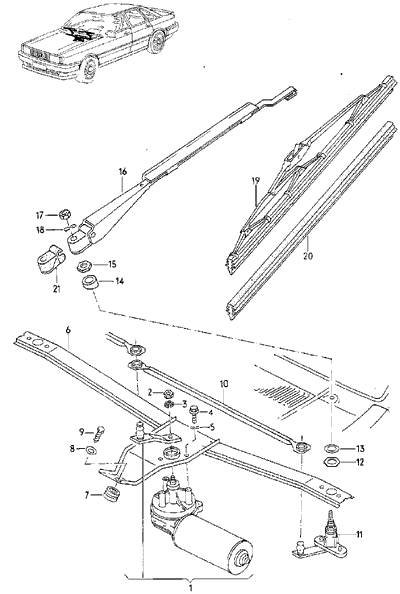

WINDSHIELD
WIPER |
|
|
|
|
1 |
>811 955 113
L |
WIPER MOTOR |
|
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
|
|
F 85-E-900
001>> |
LHD |
1 |
|
|
-1 |
~811 955 113 LX |
WIPER MOTOR |
|
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
|
|
F 85-E-900
001>> |
LHD |
1 |
|
|
-1 |
812
955 113 |
WIPER MOTOR |
|
|
|
|
|
|
F 85-E-900
001>> |
RHD |
1 |
|
|
2 |
N 011 006 24 |
HEX. NUT |
M6 |
1 |
|
|
3 |
N 012 226 5 |
SPRING WASHER |
B6 |
1 |
|
|
-4 |
N 010 212 26 |
SCREW,
HEXAGONAL HEAD |
M6X12 |
3 |
|
|
5 |
N 012 226 5 |
SPRING WASHER |
B6 |
3 |
|
|
6 |
811
955 605 |
BASE,
WINDSHIELD WIPER |
|
1 |
|
|
7 |
431
955 995 |
GROMMET |
16.mai |
1 |
|
|
8 |
N 011 667 2 |
WASHER |
B7,4X22X2 |
1 |
|
|
9 |
N 013 894 2 |
TAPPING
SCREW,HEX.HD. |
BZ6,3X25 |
1 |
|
|
10 |
811
955 331 |
OPERATING ROD |
|
2 |
|
|
11 |
855
955 215 |
WIPER SHAFT
WITH BEARING |
LEFT |
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
-11 |
811 955 215 A |
WIPER SHAFT
WITH BEARING |
LEFT |
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
-11 |
855
955 216 |
WIPER SHAFT
WITH BEARING |
RIGHT |
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
-11 |
811 955 216 A |
WIPER SHAFT
WITH BEARING |
RIGHT |
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
12 |
823
955 245 |
HEX. WASHER |
|
2 |
|
|
13 |
823 955 247 A |
WASHER |
|
2 |
|
|
14 |
321
955 251 |
SPACER RING |
|
2 |
|
|
15 |
823 955 243 A |
HEX. NUT |
M16X1 |
2 |
|
|
16 |
857
955 407 |
WIPER ARM WITH
AIR VANES |
LEFT |
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
-16 |
857 955 407 A |
WIPER ARM WITH
AIR VANES |
|
|
|
|
|
|
(DRIVERS SIDE) |
|
|
|
|
|
|
F 85-E-900
001>> |
LHD |
1 |
|
|
-16 |
432 955 407 A |
WIPER ARM |
|
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
-16 |
811 955 407 E |
WIPER ARM |
|
|
|
|
|
|
(PASSENGER
SIDE) |
|
|
|
|
|
|
F 85-E-900
001>> |
LHD |
1 |
|
|
-16 |
856
955 407 |
WIPER ARM WITH
AIR VANES |
|
|
|
|
|
|
(PASSENGER
SIDE) |
|
|
|
|
|
|
F 85-E-900
001>> |
RHD |
1 |
|
|
-16 |
812
955 407 |
WIPER ARM |
|
|
|
|
|
|
(PASSENGER
SIDE) |
|
|
|
|
|
|
F 85-E-900
001>> |
RHD |
1 |
|
|
17 |
N 011 006 24 |
HEX. NUT |
M6 |
|
|
|
|
|
F >>
85-D-902 500 |
M6 |
2 |
|
|
-17 |
N 011 008 18 |
HEX. NUT |
M8 |
|
|
|
|
|
F 85-E-900
001>> |
M8 |
2 |
|
|
18 |
N 012 226 5 |
SPRING WASHER |
B6 |
|
|
|
|
|
F >>
85-D-902 500 |
A6 |
2 |
|
|
-18 |
N 012 229 3 |
SPRING WASHER |
A8X15X0,5 |
|
|
|
|
|
F 85-E-900
001>> |
A8 |
2 |
|
|
19 |
443
955 425 |
WIPER BLADE |
530MM |
2 |
|
|
|
|
|
LHD |
|
|
|
-19 |
857
955 425 |
WIPER BLADE |
450MM |
2 |
|
|
|
|
|
RHD |
|
|
|
20 |
895 955 429 A |
RUBBER FOR
WIPER BLADE |
550MM |
|
|
|
|
|
F 85-E-900
001>> |
|
2 |
|
|
- |
431 998 001 A |
1 SET OF WIPER
BLADES |
450MM |
|
|
|
|
|
F >>
85-D-902 500 |
|
1 |
|
|
- |
443 998 001 A |
1 SET OF WIPER
BLADES |
|
|
|
|
|
|
F 85-E-900
001>> |
|
1 |
|
|
|
|
|
|
|
|
