| NO | CODE | DESCRIPTION | NOTE | EA | ADDITIONнн | ||

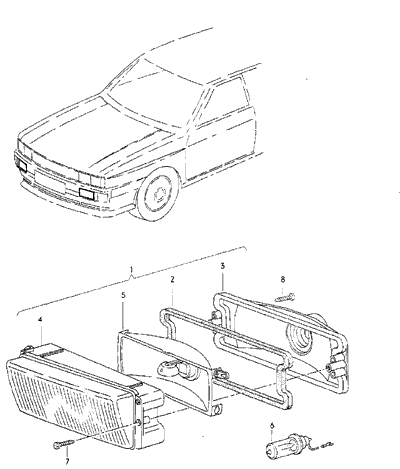

| HALOGEN FOG LAMP | |||||||
| 1 | 437 941 699 E | HALOGEN FOG LAMP | LEFT | 1 | |||
| ALSO USE: | >>85-D-902500 | ||||||
| 811 972 575 | 1 | ||||||
| N 017 582 3 | 2 | ||||||
| -1 | 437 941 699 D | HALOGEN FOG LAMP, | LEFT | 1 | "F" ,"E" | ||
| YELLOW LIGHT | |||||||
| ALSO USE: | >>85-D-902500 | ||||||
| 811 972 575 | 1 | ||||||
| N 017 582 3 | 2 | ||||||
| -1 | 437 941 700 E | HALOGEN FOG LAMP | RIGHT | 1 | |||
| ALSO USE: | >>85-D-902500 | ||||||
| 811 972 575 | 1 | ||||||
| N 017 582 3 | 2 | ||||||
| -1 | 437 941 700 D | HALOGEN FOG LAMP, | RIGHT | 1 | "F" ,"E" | ||
| YELLOW LIGHT | |||||||
| ALSO USE: | >>85-D-902500 | ||||||
| 811 972 575 | 1 | ||||||
| N 017 582 3 | 2 | ||||||
| - | 811 972 575 | ROUND CONNECTOR HOUSING | 2 PIN | 1 | |||
| - | N 017 582 3 | CYL.CONNECTOR WITH RETAIN. LUG | 3,5X2,5 | 2 | |||
| 2 | 437 941 715 | GASKET | 2 | ||||
| 3 | 437 941 721 | HOUSING | 2 | ||||
| 4 | 437 941 723 | HEADLAMP UNIT | LEFT | 1 | |||
| -4 | 437 941 723 A | HEADLAMP UNIT, YELLOW LIGHT | LEFT | 1 | "F" ,"E" | ||
| -4 | 437 941 724 | HEADLAMP UNIT | RIGHT | 1 | |||
| -4 | 437 941 724 A | HEADLAMP UNIT, YELLOW LIGHT | RIGHT | 1 | "F" ,"E" | ||
| -5 | 811 941 727 A | REFLECTOR (YELLOW GLASS) | LEFT | 1 | "F" ,"E" | ||
| -5 | 811 941 728 A | REFLECTOR (YELLOW GLASS) | RIGHT | 1 | "F" ,"E" | ||
| 6 | N 017 762 2 | HALOGEN BULB | YC12V55W H3 | 2 | |||
| 7 | N 901 575 01 | TAPPING SCREW | B4,2X25 | 4 | |||
| 8 | N 013 975 11 | TAPPING SCREW, FILL. HD. | B4,8X19 | 10 | |||
