	NO	CODE	DESCRIPTION	NOTE	EA	ADDITIONÝÝ

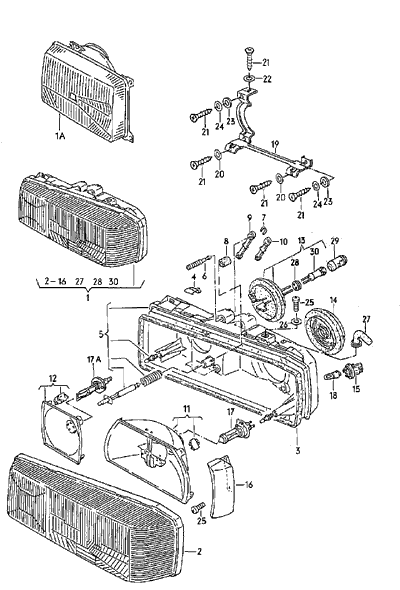

			TWIN HEADLAMPS
			F 85-D-900 001>>
	-1	855 941 029	TWIN HALOGEN HEADLAMPS	LEFT
			(RIGHT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	1	855 941 029 B	TWIN HALOGEN HEADLAMPS	LEFT
			(RIGHT-HAND TRAFFIC ONLY)	CIBIE
			F 85-F-900 001>>		1	QUATTRO
	-1	857 941 029	TWIN HALOGEN HEADLAMPS	LEFT	1	"D" :
			(RIGHT-HAND TRAFFIC ONLY)	HELLA		QUATTRO
			FOR VEHICLES WITH ELECTRIC
			BEAM RANGE ADJUSTMENT
	-1	855 941 030	TWIN HALOGEN HEADLAMPS	RIGHT
			(RIGHT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-1	855 941 030 B	TWIN HALOGEN HEADLAMPS	RIGHT
			(RIGHT-HAND TRAFFIC ONLY)	CIBIE
			F 85-F-900 001>>		1	QUATTRO
	-1	857 941 030	TWIN HALOGEN HEADLAMPS	RIGHT	1	"D" :
			(RIGHT-HAND TRAFFIC ONLY)	HELLA		QUATTRO
			FOR VEHICLES WITH ELECTRIC
			BEAM RANGE ADJUSTMENT
	-1	855 941 029 A	TWIN HALOGEN HEADLAMPS,	LEFT
			YELLOW LIGHT
			(RIGHT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	"F" :
						QUATTRO
	-1	855 941 029 C	TWIN HALOGEN HEADLAMPS,	LEFT
			YELLOW LIGHT	CIBIE
			(RIGHT-HAND TRAFFIC ONLY)
			F 85-F-900 001>>			"F" :
						QUATTRO
	-1	855 941 030 A	TWIN HALOGEN HEADLAMPS,	RIGHT
			YELLOW LIGHT
			(RIGHT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	"F" :
						QUATTRO
	-1	855 941 030 C	TWIN HALOGEN HEADLAMPS,	RIGHT
			YELLOW LIGHT	CIBIE
			(RIGHT-HAND TRAFFIC ONLY)
			F 85-F-900 001>>		1	"F" :
						QUATTRO
	-1	856 941 029	TWIN HALOGEN HEADLAMPS	LEFT
			(LEFT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-1	856 941 029 A	TWIN HALOGEN HEADLAMPS	LEFT
			(LEFT-HAND TRAFFIC ONLY)	CIBIE
			F 85-F-900 001>>		1	QUATTRO
	-1	856 941 030	TWIN HALOGEN HEADLAMPS	RIGHT
			(LEFT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-1	856 941 030 A	TWIN HALOGEN HEADLAMPS	RIGHT
			(LEFT-HAND TRAFFIC ONLY)	CIBIE
			F 85-F-900 001>>		1	QUATTRO
	(1A)	321 941 105 AF	HEADLAMP UNIT (HALOGEN)	LEFT	1	SPORTQUATTRO
			(RIGHT-HAND TRAFFIC ONLY)
	1A	321 941 106 AF	HEADLAMP UNIT (HALOGEN)	RIGHT	1	SPORTQUATTRO
			(RIGHT-HAND TRAFFIC ONLY)
	-2	855 941 115	LENS-HEADLAMP (HALOGEN)	LEFT
			(RIGHT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-2	855 941 115 B	LENS-HEADLAMP (HALOGEN)	LEFT
			(RIGHT-HAND TRAFFIC ONLY)	CIBIE
			F 85-F-900 001>>		1	QUATTRO
	-2	855 941 115 C	LENS-HEADLAMP (HALOGEN)	LEFT
			(RIGHT-HAND TRAFFIC ONLY)	HELLA
			F 85-F-900 001>>		1	QUATTRO
	-2	855 941 116	LENS-HEADLAMP (HALOGEN)	RIGHT
			(RIGHT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-2	855 941 116 B	LENS-HEADLAMP (HALOGEN)	RIGHT
			(RIGHT-HAND TRAFFIC ONLY)	CIBIE
			F 85-F-900 001>>		1	QUATTRO
	-2	855 941 116 C	LENS-HEADLAMP (HALOGEN)	RIGHT
			(RIGHT-HAND TRAFFIC ONLY)	HELLA
			F 85-F-900 001>>		1	QUATTRO
	-2	856 941 115	LENS-HEADLAMP (HALOGEN)	LEFT
			(LEFT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-2	856 941 115 A	LENS-HEADLAMP (HALOGEN)	LEFT
			(LEFT-HAND TRAFFIC ONLY)
			F 85-F-900 001>>		1	QUATTRO
	-2	856 941 116	LENS-HEADLAMP (HALOGEN)	RIGHT
			(LEFT-HAND TRAFFIC ONLY)
			F >> 85-E-901 500		1	QUATTRO
	-2	856 941 116 A	LENS-HEADLAMP (HALOGEN)	RIGHT
			(LEFT-HAND TRAFFIC ONLY)
			F 85-F-901 500>>		1	QUATTRO
	3	855 941 119	GASKET	CIBIE	2
	-3	855 941 119 A	GASKET	HELLA	2
	4	855 941 125	RETAINING SPRING FOR REFLECTOR	CIBIE	12
	-4	855 941 125 A	RETAINING SPRING FOR REFLECTOR	HELLA	14
	5	855 941 131 C	HOUSING	LEFT	1
				CIBIE
	-5	855 941 029 B	TWIN HALOGEN HEADLAMPS	LEFT LHD	1
				HELLA
	-5	855 941 132 C	HOUSING	RIGHT	1
				CIBIE
	6	855 941 141 A	ADJUSTING SCREW	CIBIE	4	QUATTRO
			ALSO USE:	855 941 135	4
	-	855 941 141 B	ADJUSTING SCREW	HELLA	2	QUATTRO
			FOR VERTICAL ADJUSTMENT
	-	855 941 141 C	ADJUSTING SCREW	HELLA	2	QUATTRO
			FOR HORIZONTAL ADJUSTMENT
	-	321 941 141 G	ADJUSTING SCREW		2	SPORTQUATTRO
			FOR HORIZONTAL ADJUSTMENT
	-	321 941 141 H	ADJUSTING SCREW		2	SPORTQUATTRO
			FOR VERTICAL ADJUSTMENT
	-	533 941 133	ADJUSTING PIECE		2	SPORTQUATTRO
	7	855 941 135	CLAMPING WASHER	CIBIE	4
	8	855 941 136	GASKET	CIBIE	4
	9	855 941 145 A	RETAINER	77,5MM CIBIE	2
	10	855 941 145 B	RETAINER	53MM CIBIE	2
	11	855 941 151	REFLECTOR FOR LOW BEAM	CIBIE	2
			(RIGHT-HAND TRAFFIC ONLY)
	-11	855 941 151 B	REFLECTOR FOR LOW BEAM	HELLA	2
			(RIGHT-HAND TRAFFIC ONLY)
	-11	856 941 151	REFLECTOR FOR LOW BEAM	CIBIE	2
			(LEFT-HAND TRAFFIC ONLY)
	12	855 941 151 AD	REFLECTOR FOR HIGH BEAM	CIBIE	2
	-12	855 941 151 AC	REFLECTOR FOR HIGH BEAM	HELLA	2
	13	855 941 159	CAP FOR HIGH BEAM	CIBIE	2
	-13	855 941 159 C	CAP FOR HIGH BEAM	HELLA	2
	14	855 941 159 B	CAP FOR LOW BEAM	HELLA	2
	15	855 941 669	SOCKET FOR BULB		2
	16	855 941 161	TRIM	LEFT	1
				CIBIE
	-16	855 941 161 A	TRIM	LEFT	1
				HELLA
	-16	855 941 162	TRIM	RIGHT	1
				CIBIE
	-16	855 941 162 A	TRIM	RIGHT	1
				HELLA
	17	N 017 763 2	HALOGEN BULB	YD12V60/55W H4	2
	17A	N 017 761 2	HALOGEN BULB	12V55W H1	2
	18	N 017 717 2	BULB	HL12V4W	2
	19	855 941 117	RETAINING CLAMP	LEFT	1
	-19	855 941 118	RETAINING CLAMP	RIGHT	1
	-	859 941 027	RETAINING FRAME		2	SPORTQUATTRO
	20	10 321 314	WASHER	5,1X10,5X2	4
	21	N 013 968 1	TAPPING SCREW, FILL. HD.	ST4,8X13-C	12
	22	N 011 556 2	WASHER	5,3X9,5X1	2
	23	211 945 187 C	SEALING WASHER		6
	24	N 011 665 3	WASHER	5,3X15X1,6	8
	25	N 014 133 5	FILLISTER HD. SCREW	M5X12	2
	26	N 011 540 2	WASHER	A5,5X12,5X1,6	2
	27	855 941 189 A	GROMMET		2
	-	535 941 295 A	MOTOR FOR ADJUSTMENT		2
			FOR VEHICLES WITH ELECTRIC
			BEAM RANGE ADJUSTMENT
	-	443 941 323	SEALING WASHER		2
			MOTOR FOR ADJUSTMENT
	28	--- --- --- .	DISCONTINUED / REPLACEMENT:	813 972 923	2
	-29	171 906 232 A	RD. CONNECTOR SLEEVE HOUSING	3 PIN	2
	30	813 972 926	FLAT CONTACT HOUSING WITH	2 PIN	2
			HELPER CONTACT CATCH AND	6,3
			GROMMET
