NO |
CODE |
DESCRIPTION |
NOTE |
EA |
ADDITIONнн |
|
|
|

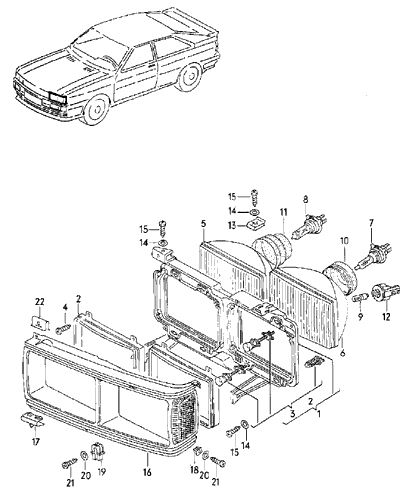

TWIN HEADLAMPS |
|
|
|
|
|
|
F >>
85-C-902 000 |
|
|
|
|
1 |
813 941 027 A |
RETAINING FRAME |
LEFT |
1 |
|
|
-1 |
813 941 028 A |
RETAINING FRAME |
RIGHT |
1 |
|
|
2 |
813
941 047 |
RETAINING FRAME |
|
4 |
|
|
3 |
813 941 141 A |
1 SET OF
ADJUSTING SCREWS |
|
2 |
|
|
|
|
(COMPLETE) |
|
|
|
|
4 |
N 013 961 2 |
TAPPING SCREW,
FILL. HD. |
ST3,9X13 |
16 |
|
|
5 |
857
941 653 |
HEADLAMP UNIT
(HALOGEN) |
|
2 |
|
|
|
|
HIGH BEAM |
|
|
|
|
-5 |
857 941 653 A |
HEADLAMP UNIT
(HALOGEN) |
|
2 |
"F" |
|
|
|
HIGH BEAM,
YELLOW LIGHT |
|
|
|
|
6 |
857
941 663 |
HEADLAMP UNIT |
|
2 |
|
|
|
|
LOW BEAM |
|
|
|
|
|
|
(RIGHT-HAND
TRAFFIC ONLY) |
|
|
|
|
-6 |
857 941 663 A |
HEADLAMP UNIT
LOW BEAM, |
|
2 |
"F" |
|
|
|
YELLOW LIGHT |
|
|
|
|
|
|
(RIGHT-HAND
TRAFFIC ONLY) |
|
|
|
|
-6 |
438
941 663 |
HEADLAMP UNIT |
|
2 |
|
|
|
|
LOW BEAM |
|
|
|
|
|
|
(LEFT-HAND
TRAFFIC ONLY) |
|
|
|
|
7 |
N 017 761 2 |
HALOGEN BULB |
12V55W H1 |
2 |
|
|
8 |
N 017 763 2 |
HALOGEN BULB |
YD12V60/55W H4 |
2 |
|
|
9 |
N 017 717 2 |
BULB |
HL12V4W |
2 |
|
|
10 |
111 941 605 A |
CAP FOR |
|
2 |
|
|
|
|
BULB SOCKET |
|
|
|
|
11 |
437
941 605 |
CAP FOR HIGH
BEAM |
|
2 |
|
|
|
|
WITH CONNECTING
WIRE |
|
|
|
|
12 |
533
941 669 |
SOCKET FOR BULB |
|
2 |
|
|
13 |
N 015 436 1 |
SPEED NUT |
B4,8X14,8X16 |
2 |
|
|
14 |
10
321 314 |
WASHER |
5,1X10,5X2 |
4 |
|
|
-14 |
N 011 665 3 |
WASHER |
5,3X15X1,6 |
2 |
|
|
-14 |
N 011 556 2 |
WASHER |
5,3X9,5X1 |
2 |
|
|
15 |
N 013 968 1 |
TAPPING SCREW,
FILL. HD. |
ST4,8X13-C |
8 |
|
|
16 |
857 941 625 B |
TRIM |
LEFT |
1 |
|
|
|
|
(LEFT-HAND
TRAFFIC ONLY) |
|
|
|
|
-16 |
857 941 626 B |
TRIM |
RIGHT |
1 |
|
|
|
|
(LEFT-HAND
TRAFFIC ONLY) |
|
|
|
|
-16 |
855
941 625 |
TRIM |
LEFT |
1 |
|
|
-16 |
855
941 626 |
TRIM |
RIGHT |
1 |
|
|
17 |
811
941 629 |
CLAMP |
|
2 |
|
|
18 |
811
853 523 |
CLIP |
|
2 |
|
|
19 |
811
853 825 |
CLIP |
|
2 |
|
|
20 |
N 011 554 3 |
WASHER |
3,7X7X0,5 |
4 |
|
|
21 |
N 013 958 7 |
TAPPING SCREW,
FILL. HD. |
B3,5X13 |
4 |
|
|
22 |
321
853 695 |
CLAMP |
|
2 |
|
|
|
|
|
|
|
|
