	NO	CODE	DESCRIPTION	NOTE	EA	ADDITIONÝÝ

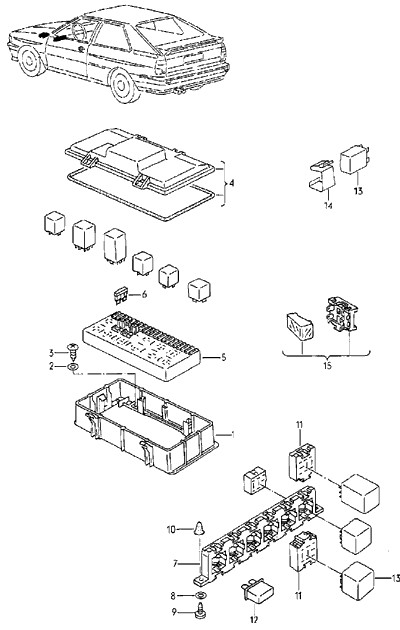

			FUSE BOX/RELAY PLATE
			F 85-D-900 001>>
	-1	443 941 803 D	HOUSING FOR CENTR. ELEC.SYSTEM		1
			ALSO USE:	>>85-H-902400
				443 937 530	1
				443 941 801 B	1
				>>85-L-000600
				443 941 801 B	1
	2	N 011 523 18	WASHER	A5,3X10X1	4
	3	N 013 968 1	TAPPING SCREW, FILL. HD.	ST4,8X13-C	4
	4	443 941 801 A	COVER
			F >> 85-L-000 600*		1
	-4	443 941 801 B	COVER
			F 85-L-000 601>>*		1
	-	8D0 941 802	TOOL FOR FUSE		1
			REPLACEMENT
	-	893 941 819	COVER		X
	5	443 941 822 A	FUSE BOX/RELAY PLATE		1
	6	N 017 131 16	FLAT FUSE 19/2X5	5-LIGHT BROWN	X
	-6	N 017 131 11	FLAT FUSE 19/2X5	10-RED	X
	-6	N 017 131 12	FLAT FUSE 19/2X5	15-LIGHT BLUE	X
	-6	N 017 131 13	FLAT FUSE 19/2X5	20-YELLOW	1
	-6	N 017 131 14	FLAT FUSE 19/2X5	25-NATURAL.COL	X
	-6	N 017 131 15	FLAT FUSE 19/2X5	30-LIGHT GREEN	X
	7	443 937 503	RELAY PLATE		1
	8	N 012 104 4	LOCK WASHER	A5,3	2
	9	N 010 702 1	SCREW, CHEESE HD.	AM5X15	2
	10	861 941 659	PROTECTIVE CAP		1
	11	161 937 501 B	RELAY PLATE		1
	-11	191 937 501	BRACKET FOR THERMO SWITCH		X
	-11	443 937 501	RELAY PLATE		1
	-11	443 937 501 B	RELAY PLATE		1
	12	443 937 105	THERMO SWITCH	20A	1
			RELAY
			FOR FUSE BOX/RELAY PLATE
	-13	431 951 253 H	RELAY		1
			FOR FOG LAMP
			RELAY LOCATION:	1
	-13	431 951 253 H	RELAY
			FOR ELECTRIC FAN
			RELAY LOCATION:	2
			F >> 85-G-902 400		1
	-13	443 951 253 K	RELAY	12V40A
			FOR ELECTRIC FAN
			RELAY LOCATION:	2
			F 85-H-900 001>>		1
	-13	701 955 200	RELAY FOR HEADLIGHT
			WASHER
			RELAY LOCATION:	4
			F >> 85-H-901 200*		1
	-13	443 955 535	RELAY FOR HEADLIGHT
			WASHER
			RELAY LOCATION:	4
			F 85-H-901 201>>*		1
	-13	191 937 503	RELAY	12V40A	1
			FOR RELIEF RELAY X CONTACT
			RELAY LOCATION:	5
	-13	357 906 381 B	RELAY	12V70A	1
			FOR RELIEF RELAY X CONTACT
			RELAY LOCATION:	5
	-13	431 951 253 H	RELAY		1
			FOR HORN
			RELAY LOCATION:	7
	-13	191 955 531	CONTROL UNIT FOR INTERMITTENT		1
			WASH-WIPE AUTOMATIC
			RELAY LOCATION:	9
	-13	191 906 383 C	CONTACT CLOSE RELAY
			FOR FUEL PUMP
			RELAY LOCATION:	10
			F >> 85-K-020 000		1
	-13	443 951 253 L	CONTACT CLOSE RELAY
			FOR FUEL PUMP
			RELAY LOCATION:	10
			F 85-L-000 001>>		1
	-13	431 951 253 H	RELAY
			HOT AIR FAN	1ST STAGE		AIR CONDIT.
			RELAY LOCATION:	11
			F >> 85-G-902 400		1
	-13	443 951 253 K	RELAY	12V40A
			HOT AIR FAN	1ST STAGE
			RELAY LOCATION:	11
			F 85-H-900 001>>		1
			RELAY
			ADDITIONAL RELAY PLATE
	13	813 906 064	PULS START RELAIS FOR
			COLD START VALVE
			RELAY LOCATION:	1
			F >> 85-E-901 500		1
	-13	8A0 927 826	DOUBLE RELAY
			FOR ANTI-LOCK.BRAKE SYST.-ABS-
			RELAY LOCATION:	1
			F 85-F-900 001>>
	-13	443 951 307 B	BUZZER		1
			RELAY LOCATION:	2
	-13	857 919 082	OIL PRESSURE WARNING RELAY		1
			RELAY LOCATION:	2
	-13	55 906 086	RELAY FOR
			TEMPERATURE SENSOR
			RELAY LOCATION:	3
			F 85-F-900 001>>		1	WX
	-13	431 951 253 F	CONTACT CLOSE RELAY		1	"N"
			FOR DAY DRIVING HEADLIGHTS
			RELAY LOCATION:	3
	-13	443 919 578 J	ELECTRONIC CONTROL UNIT FOR		1
			ELECTRO CLUTCH
			RELAY LOCATION:	4
	-13	8A0 927 826	DOUBLE RELAY
			FOR ANTI-LOCK.BRAKE SYST.-ABS-
			RELAY LOCATION:	5
			F >> 85-E-901 500		1
	-13	813 906 064	PULS START RELAIS FOR
			COLD START VALVE
			RELAY LOCATION:	5
			F 85-F-900 001>> 85-F-901 500		1
	-13	443 919 469 A	RELAY FOR HEADLIGHT		1
			CHECKING
			RELAY LOCATION:	6
	-13	447 965 571 A	CONTROL UNIT FOR WATER PUMP,		1	MB,RR
			RELAY FAN STAGE 1
			RELAY LOCATION:	6
	-13	191 955 531	CONTROL UNIT FOR INTERMITTENT
			WASH-WIPE AUTOMATIC
			F >> 85-E-901 500		1
	-13	431 951 253 H	RELAY
			HIGH PRESSURE SWITCH
			RELAY LOCATION:	8
			F >> 85-G-902 400		1	AIR CONDIT.
	-13	443 951 253 K	RELAY	12V40A
			HIGH PRESSURE SWITCH
			RELAY LOCATION:	8
			F 85-H-900 001>> 85-K-020 000		1
	-13	443 959 257	CONTROL UNIT FOR ELECTRIC	8 SEC.
			WINDOWS AND SLIDING
			ROOF OPERATION
			RELAY LOCATION:	08.jul
			F 85-L-000 001>>		1
	-13	447 907 393 B	CONTROL UNIT FOR IDLING
			STABILIZATION
			RELAY LOCATION:	8+9
			F >> 85-K-020 000		1	MB
			RELAY LOCATION:	9+10
			F 85-L-000 001>>		1	MB
	-13	447 947 115 D	TIME CONTROL UNIT
			FOR DOOR CONTACT
			INTERIOR LIGHT
			FOOTWELL LIGHT
			RELAY LOCATION:	9
			F 85-L-000 001>>		1
	-13	437 927 825	CONTROL UNIT RELAY
			RELAY LOCATION:	11
			F >> 85-E-901 500		1
	-13	191 955 529	CONTROL UNIT FOR REAR WINDOW		1
			WIPE/WASH SYSTEM
			RELAY LOCATION:	11
	-13	443 951 253 K	RELAY	12V40A
			HIGH PRESSURE SWITCH
			RELAY LOCATION:	12
			F 85-L-000 001>>		1
	-13	443 919 533 A	CONTROL UNIT FOR HEATED		X
			SEAT
			RELAY LOCATION:	13+14
	-13	443 951 253 K	RELAY	12V40A
			FOR ELECTRIC FAN	2ND STAGE
			RELAY LOCATION:	15
			F 85-L-000 001>>		1
	-13	141 951 253 B	RELAY		1
			INJECTOR COOLING
			RELAY LOCATION:	15
	-13	431 951 253 H	RELAY
			FOR DAY DRIVING HEADLIGHTS
			RELAY LOCATION:	17,18
			F >> 85-E-901 500		2
	-13	431 951 253 C	RELAY
			FOR DAY DRIVING HEADLIGHTS
			RELAY LOCATION:
			F 85-F-900 001>>	17	1	"S" ,"N"
	-13	443 951 253 A	RELAY FOR
			DAY DRIVING HEADLIGHTS
			RELAY LOCATION:	18
			F 85-F-900 001>>		1	"N"
	-13	431 951 253 G	RELAY	12V/40A	1	"GB"
			FOR DIM-DIP DRIVING LIGHTS
			RELAY LOCATION:	18
	-13	3A0 951 307	BUZZER
			RELAY LOCATION:	18
			F >> 85-G-902 400		1	"J"
	-13	171 959 143 A	RELAY		1	AIR CONDIT.
			HOT AIR FAN	1ST STAGE
	-13	8A0 951 253	CONTACT CLOSE RELAY		1
			HALOGEN DRIVING LIGHTS
	-13	191 953 227 A	RELAY TURN SIGNAL/EMERG.LIGHT	12V 4X21W	1
	-13	431 951 253 G	RELAY	12V/40A	1	SPORTQUATTRO
	-13	443 951 253 J	RELAY	12V60A	1	SPORTQUATTRO
	-13	431 951 253 C	RELAY		1
			FOR VEHICLES WITH
			LAMBDA PROBE
	-13	443 919 578 J	ELECTRONIC CONTROL UNIT FOR		1	S704
			ELECTRO CLUTCH
			FOR:
			VALVE
			ACTIVATED CARBON CONTAINER
	14	431 953 269	CLIP		1
	15	171 937 501	FUSE BOX	2 POINT	1
